Assembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a coat of ATF to new seal ring and new O-ring, then install them onto piston.
    Fig 1: Installing Seal Ring & O-Ring
    G02291545Courtesy of MAZDA MOTORS CORP.
    2. NOTE: After installing required parts to the piston, ensure that the piston rotates smoothly by hand. If not, the lip seal may be caught.
  2. Apply a coat of ATF to inside of the drum, then install the piston while rotating it by hand.
  3. Apply a coat of ATF to a new O-ring, then install it to the cancel force cover.
  4. Position the return spring and cancel force cover.
    5. CAUTION: Depress the spring retainer only enough to remove the snap ring. Overpressing will damage the retainer component edges.

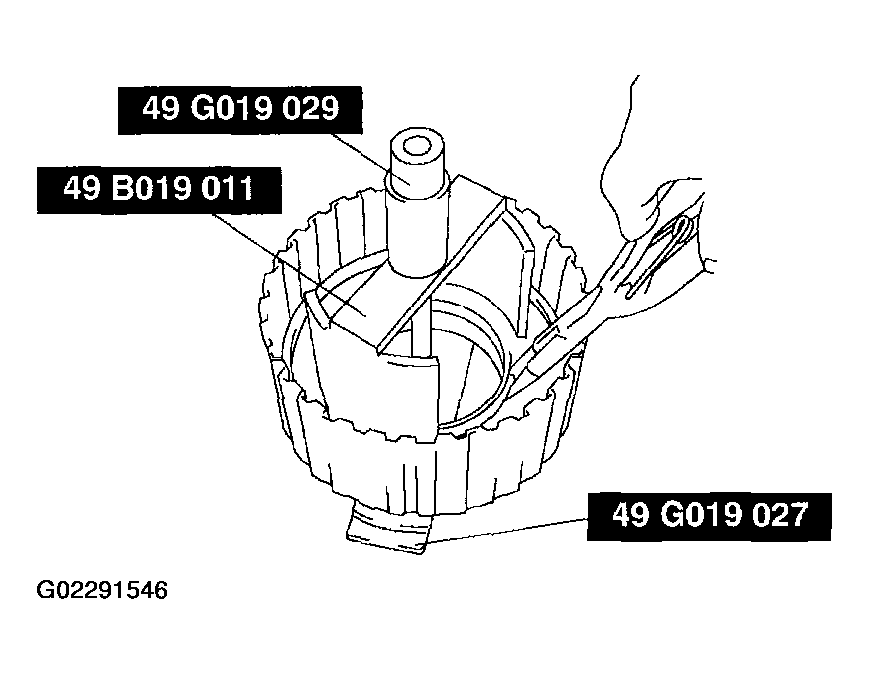

    Fig 2: Installing Snap Ring
    G02291546Courtesy of MAZDA MOTORS CORP.
  5. Install the SSTs  in the clutch drum as shown.
  6. Install the snap ring.
  7. Remove the SSTs  .
  8. Install the dished plate, drive plates, and driven plates in the order as shown.

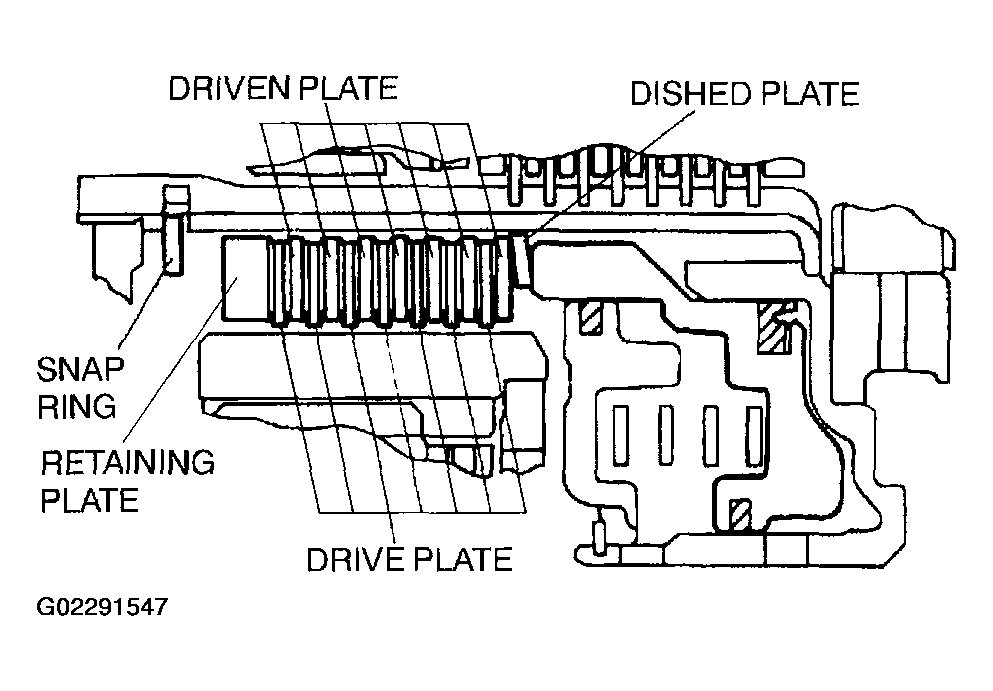

    Fig 3: Installing Dished Plate, Drive & Driven Plates
    G02291547Courtesy of MAZDA MOTORS CORP.
  9. Install the retaining plate.
  10. Install the snap ring.
