Resistance Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Verify that there is no continuity between the throttle body and throttle body each terminal using an ohmmeter.
- If not as specified, replace the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Measure the resistance between the throttle actuator terminals using an ohmmeter.
- If not as specified, replace the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- If as specified, carry out the CIRCUIT OPEN/SHORT INSPECTION .
  Throttle actuator resistance
Fig 1: Throttle Actuator Resistance Specifications
Courtesy of MAZDA MOTORS CORP.

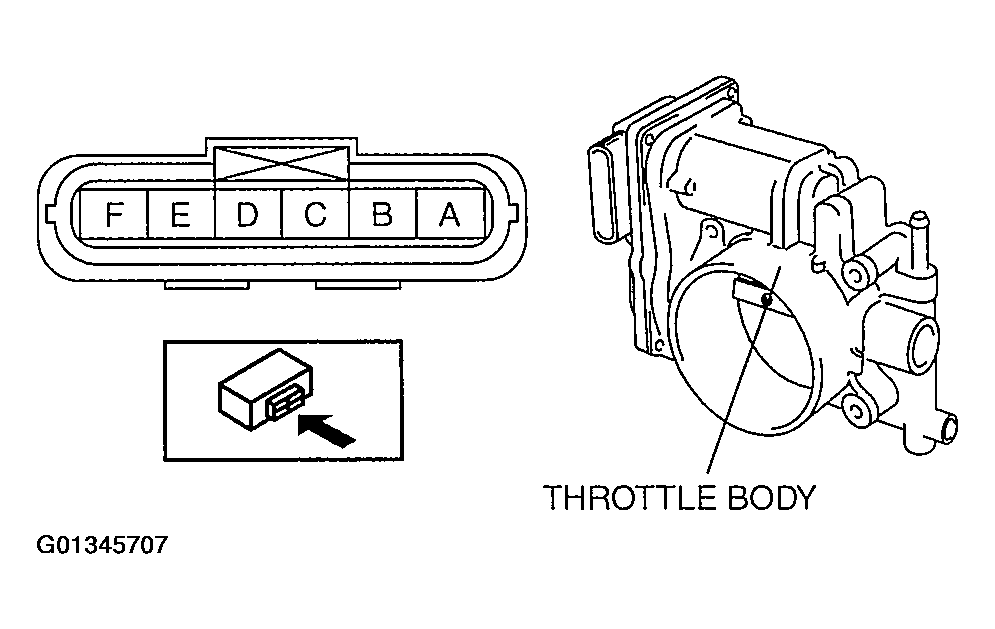

Fig 2: Identifying Throttle Actuator Connector Terminals
Courtesy of MAZDA MOTORS CORP.

Fig 3: Checking Throttle Actuator Connector Terminal Resistance
Courtesy of MAZDA MOTORS CORP.
