No. 11 Engine Stalls/Quits, Engine Runs Rough, Misses, Buck/Jerk, Hesitation/Stumble, Surges

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

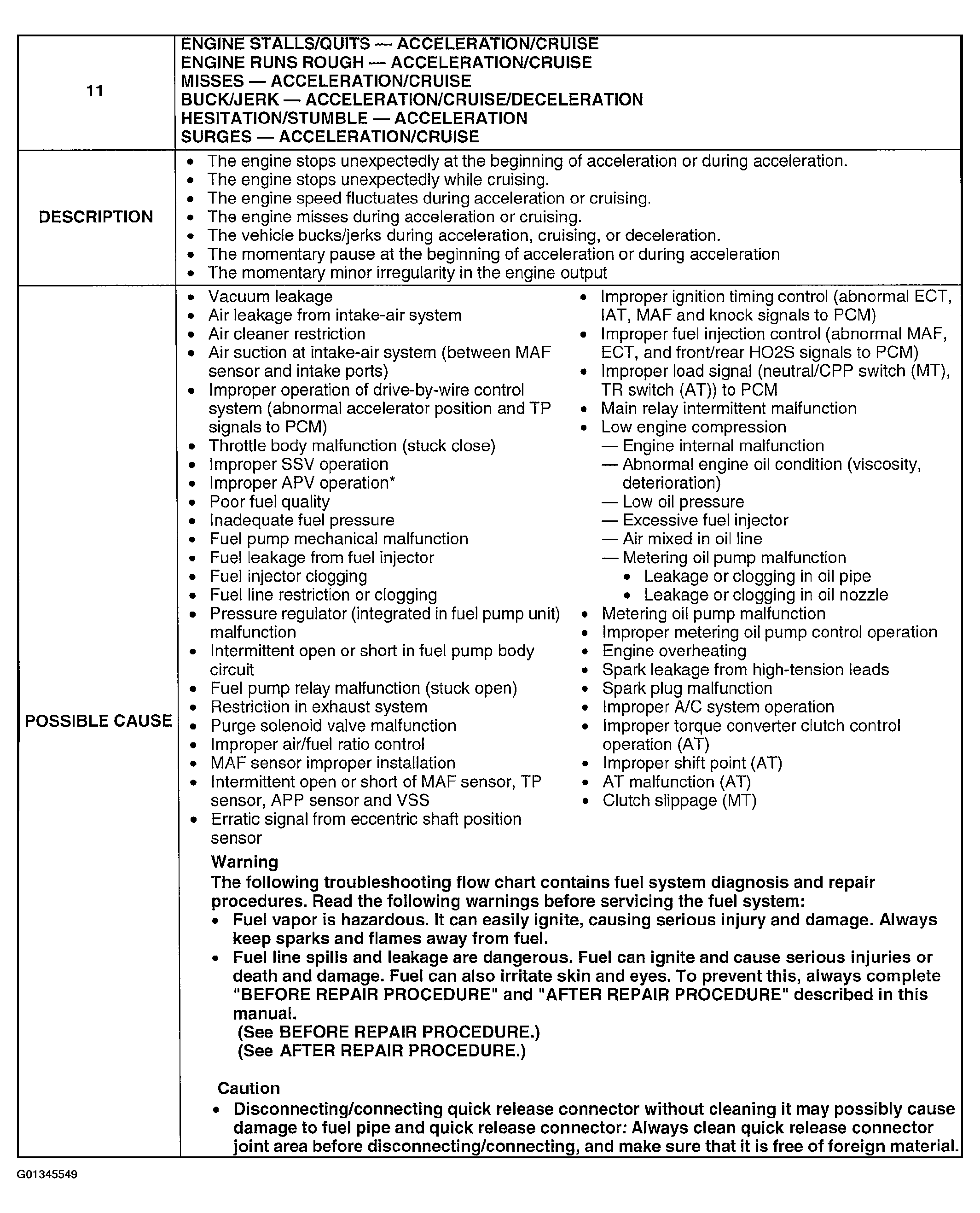

Fig 1: Possible Cause - No. 11 Engine Stalls/Quits, Engine Runs Rough, Misses, Buck/Jerk, Hesitation/Stumble, Surges

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

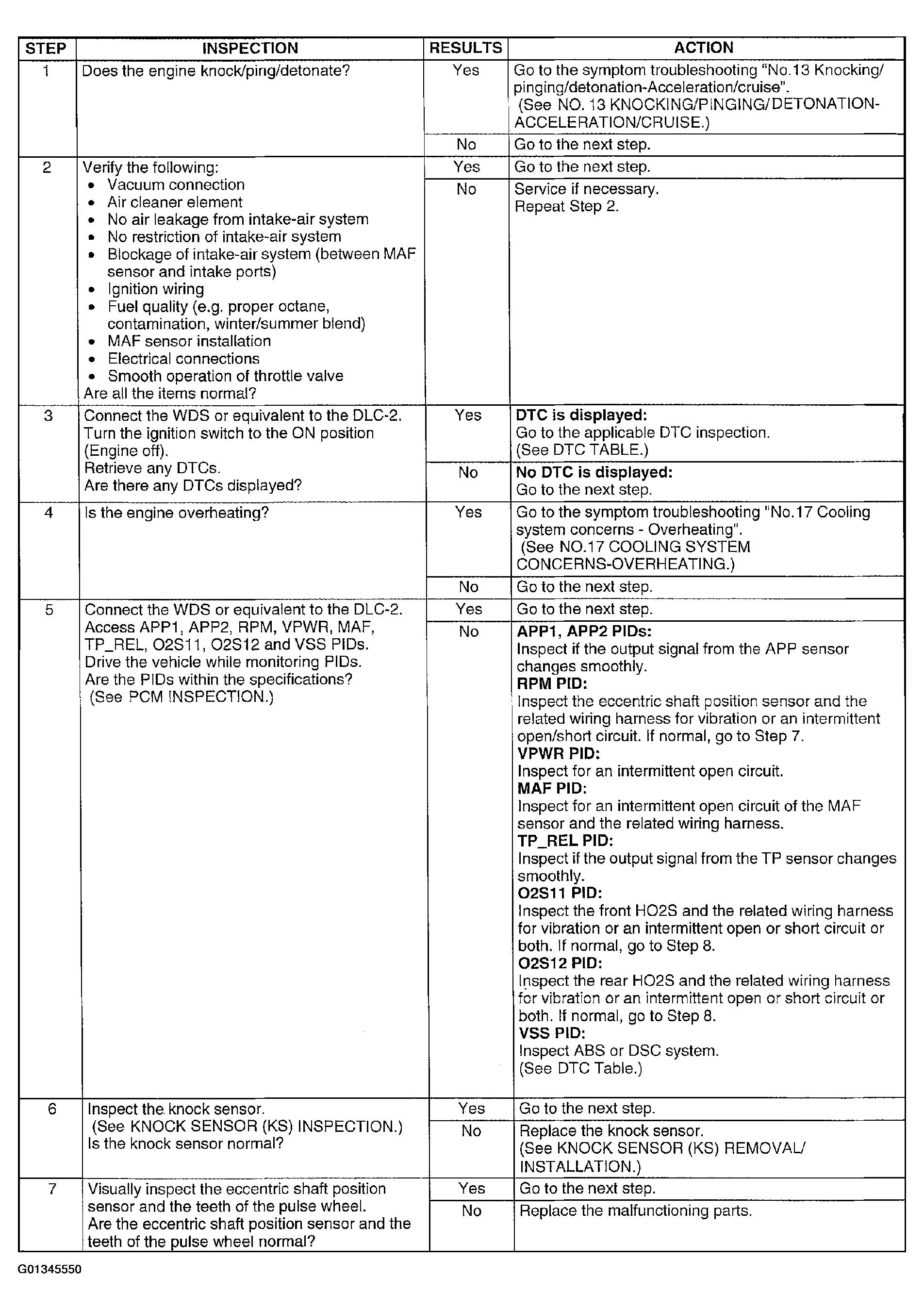

Fig 2: Diagnostic Procedure - No. 11 Engine Stalls/Quits, Engine Runs Rough, Misses, Buck/Jerk, Hesitation/Stumble, Surges (Steps 1-7)

Courtesy of MAZDA MOTORS CORP.

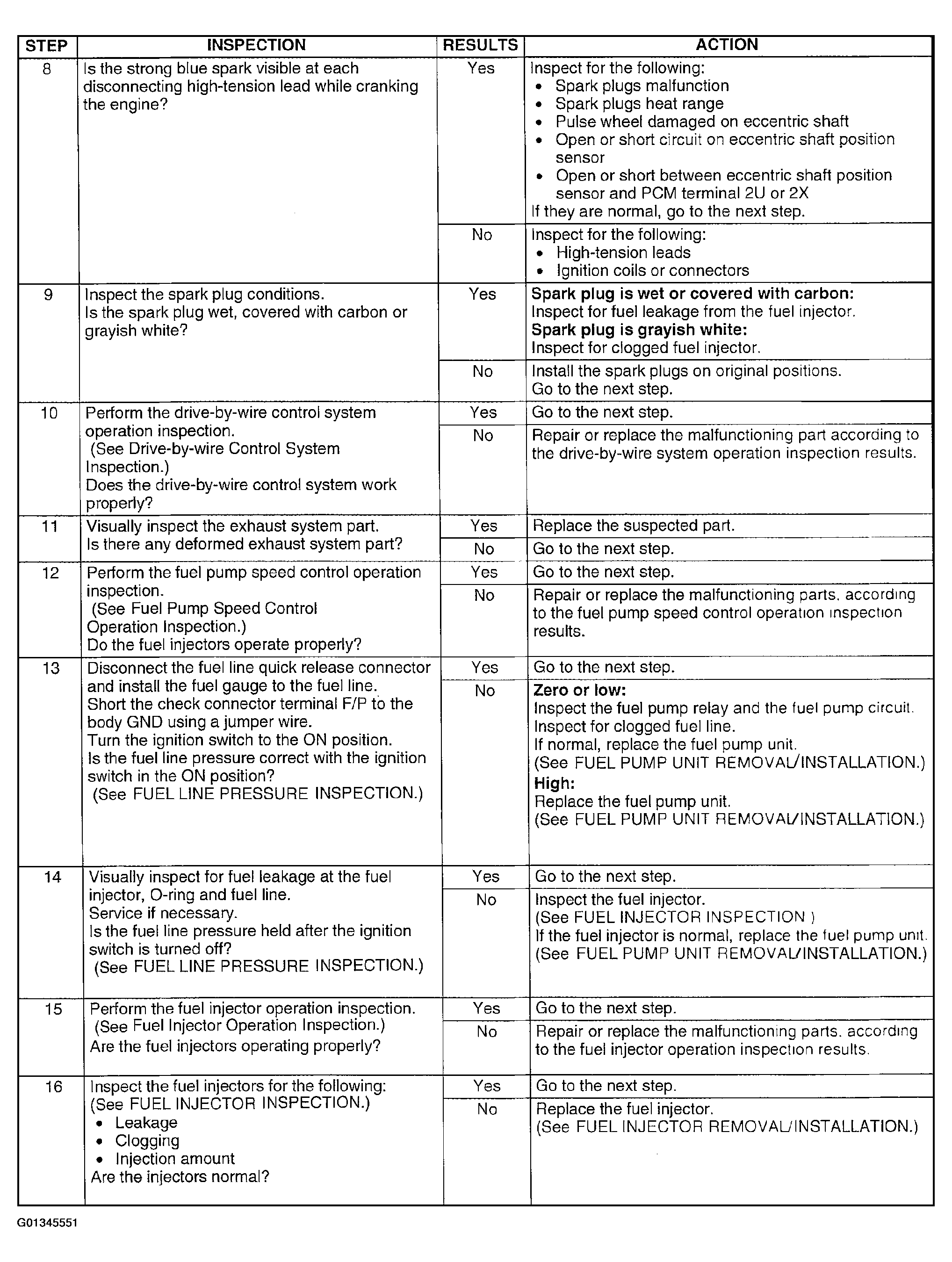

Fig 3: Diagnostic Procedure - No. 11 Engine Stalls/Quits, Engine Runs Rough, Misses, Buck/Jerk, Hesitation/Stumble, Surges (Steps 8-16)

Courtesy of MAZDA MOTORS CORP.

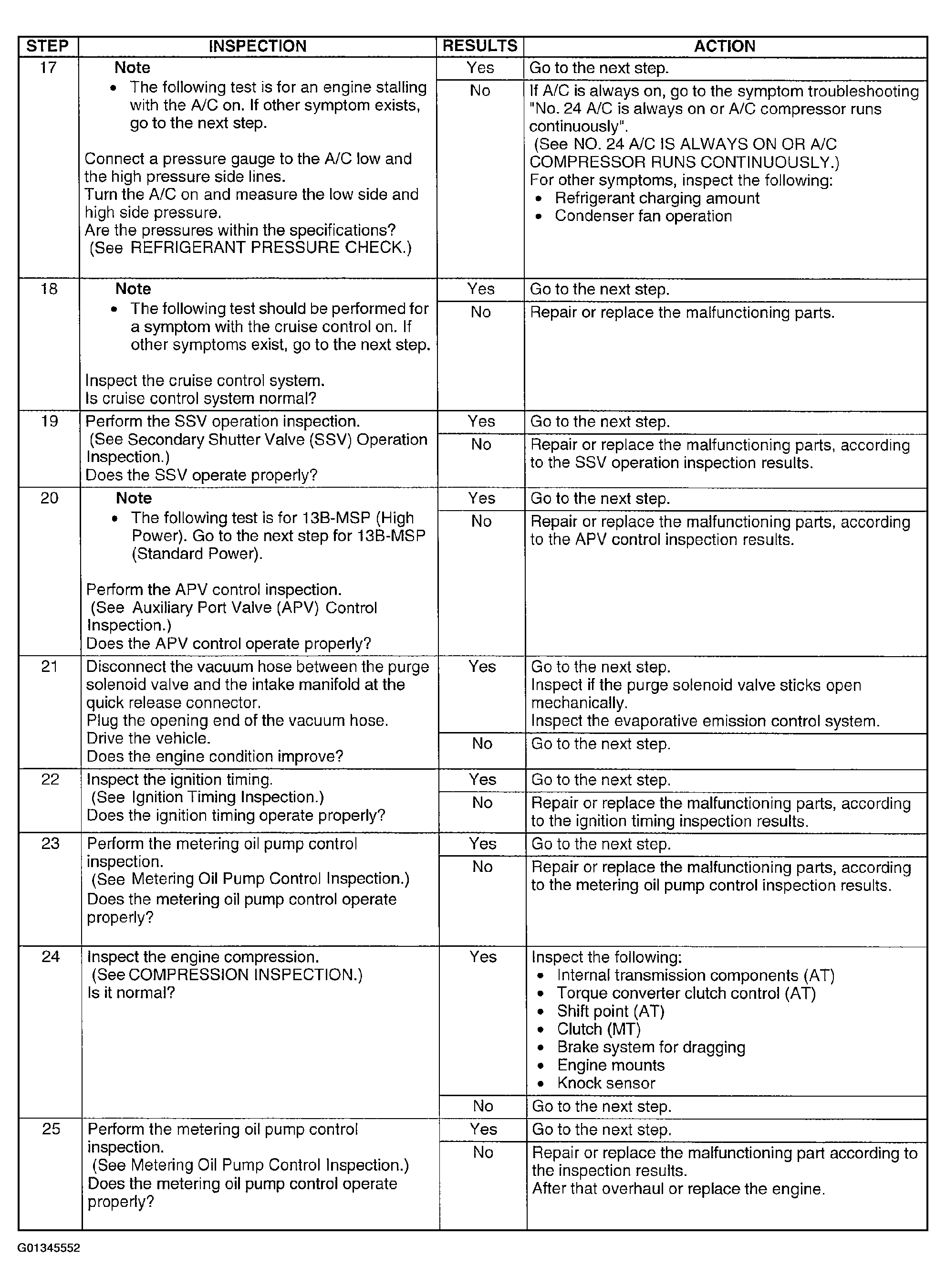

Fig 4: Diagnostic Procedure - No. 11 Engine Stalls/Quits, Engine Runs Rough, Misses, Buck/Jerk, Hesitation/Stumble, Surges (Steps 17-25)

Courtesy of MAZDA MOTORS CORP.

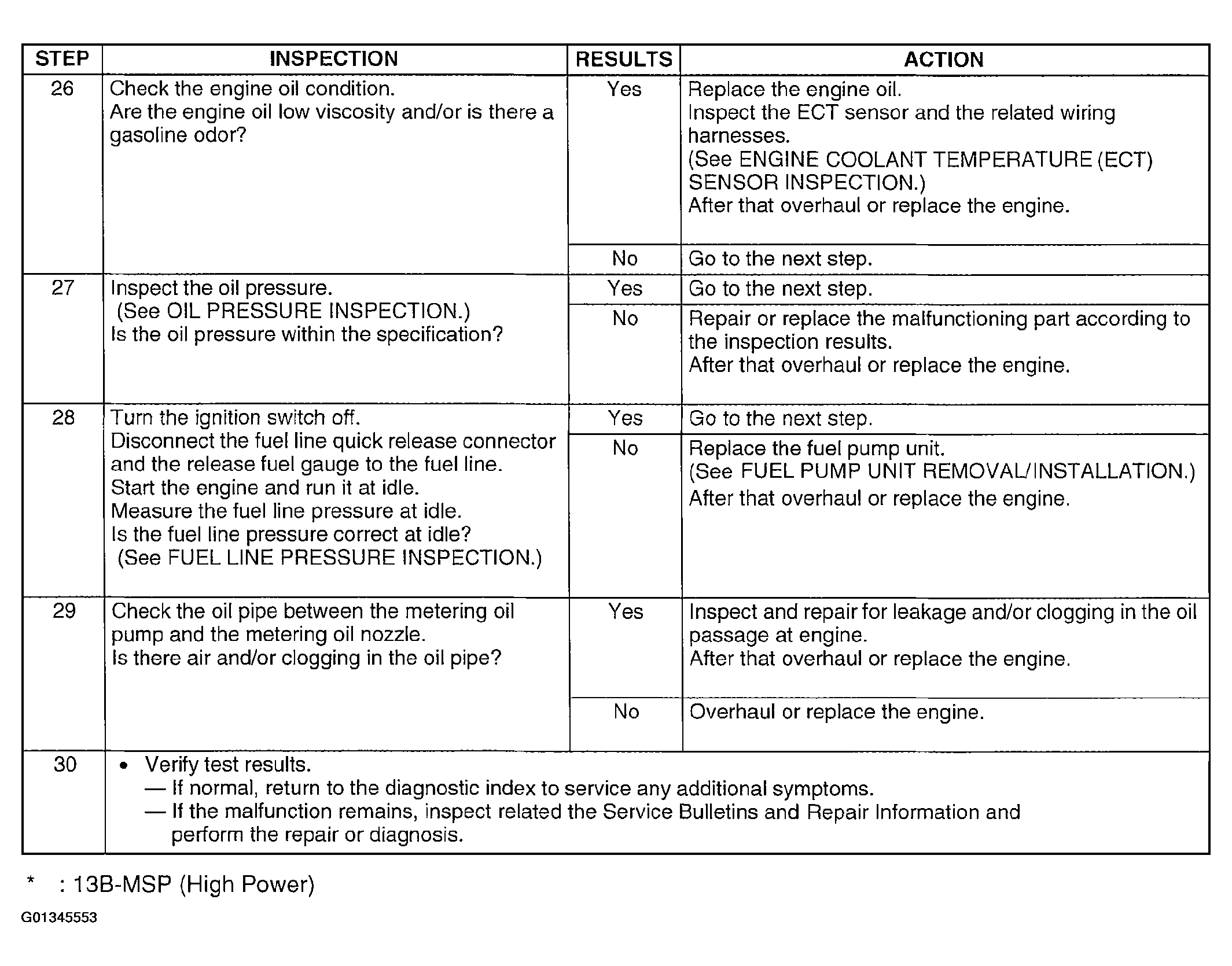

Fig 5: Diagnostic Procedure - No. 11 Engine Stalls/Quits, Engine Runs Rough, Misses, Buck/Jerk, Hesitation/Stumble, Surges (Steps 26-30)

Courtesy of MAZDA MOTORS CORP.
