No. 10 Low Idle/Stalls During Deceleration

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

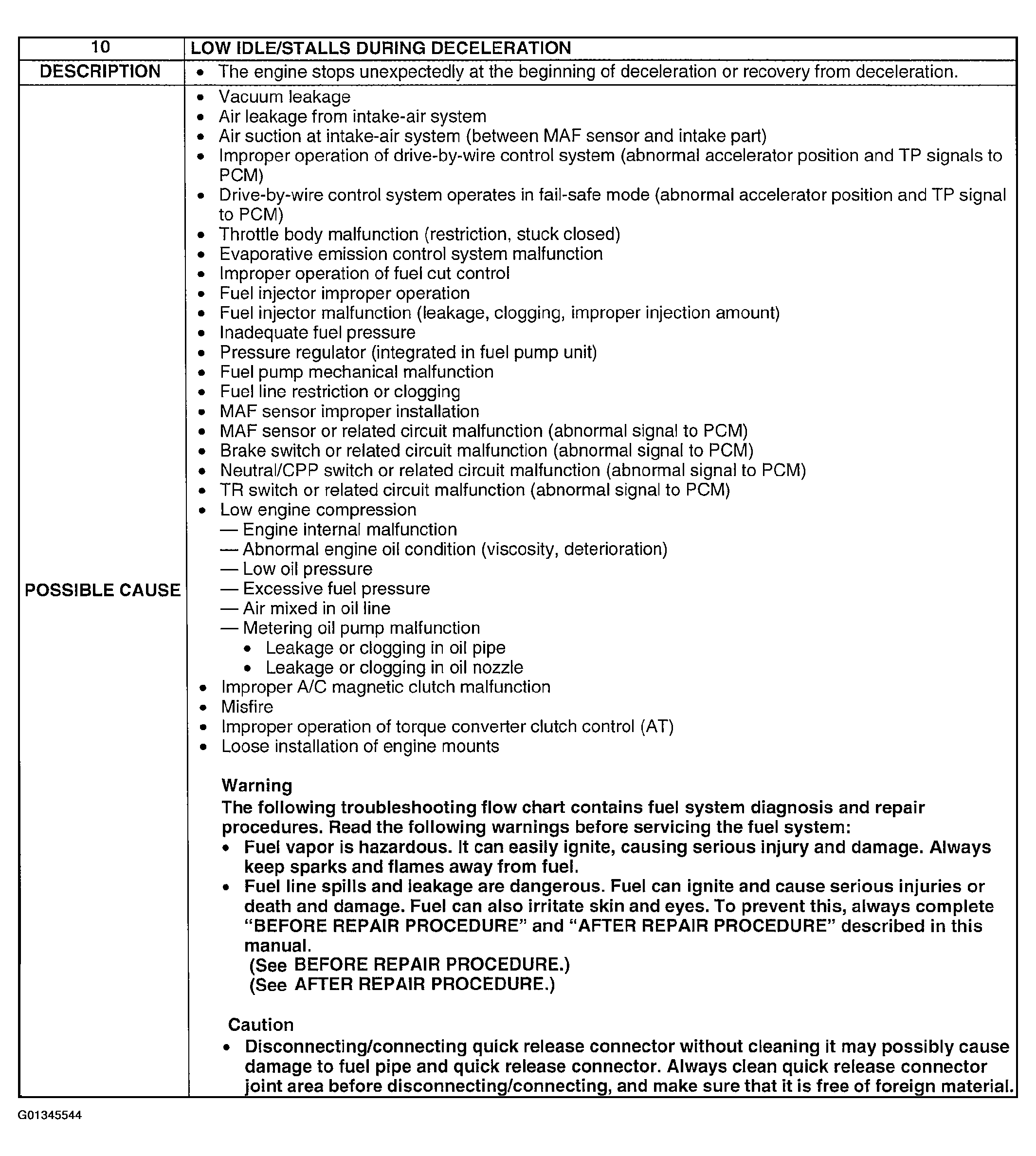

Fig 1: Possible Cause - No. 10 Low Idle/Stalls During Deceleration

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

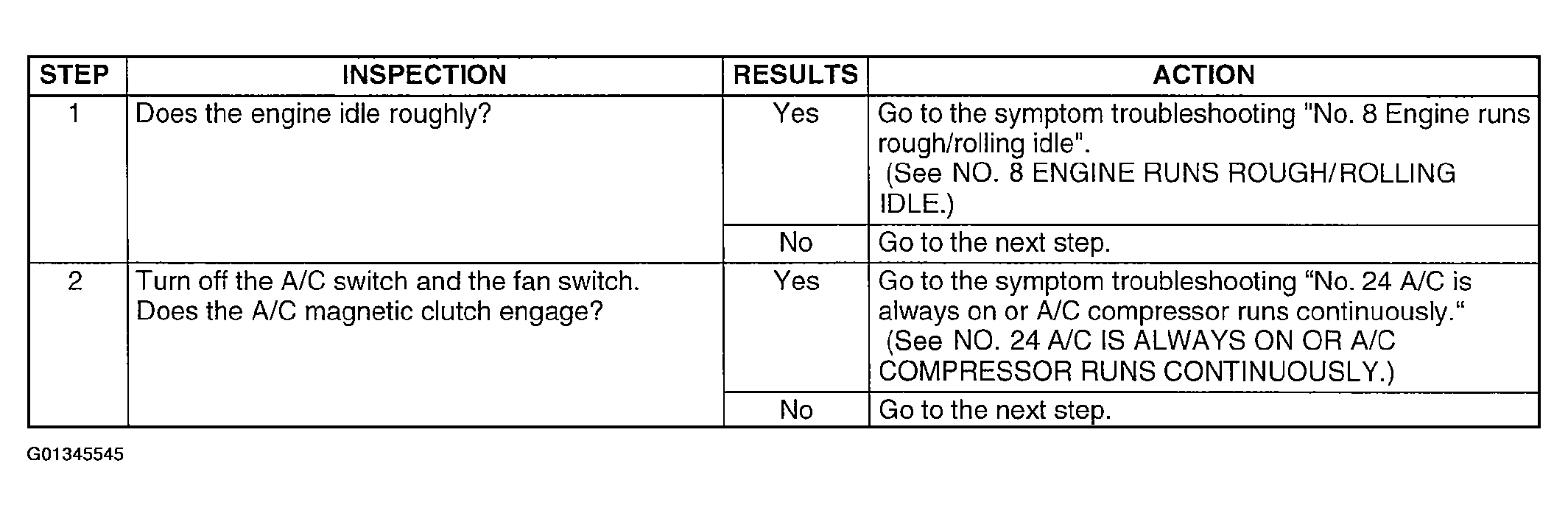

Fig 2: Diagnostic Procedure - No. 10 Low Idle/Stalls During Deceleration (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

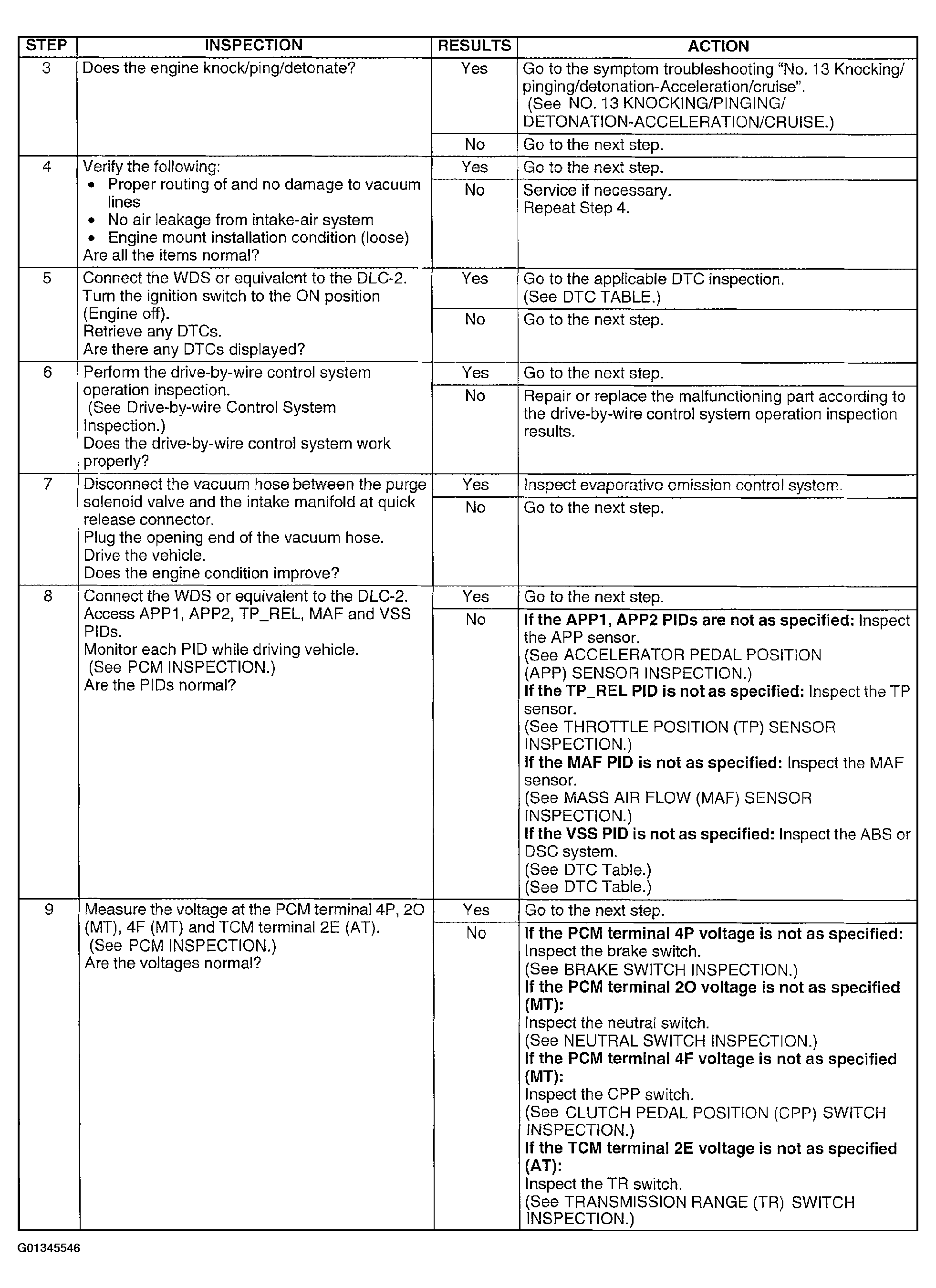

Fig 3: Diagnostic Procedure - No. 10 Low Idle/Stalls During Deceleration (Steps 3-9)

Courtesy of MAZDA MOTORS CORP.

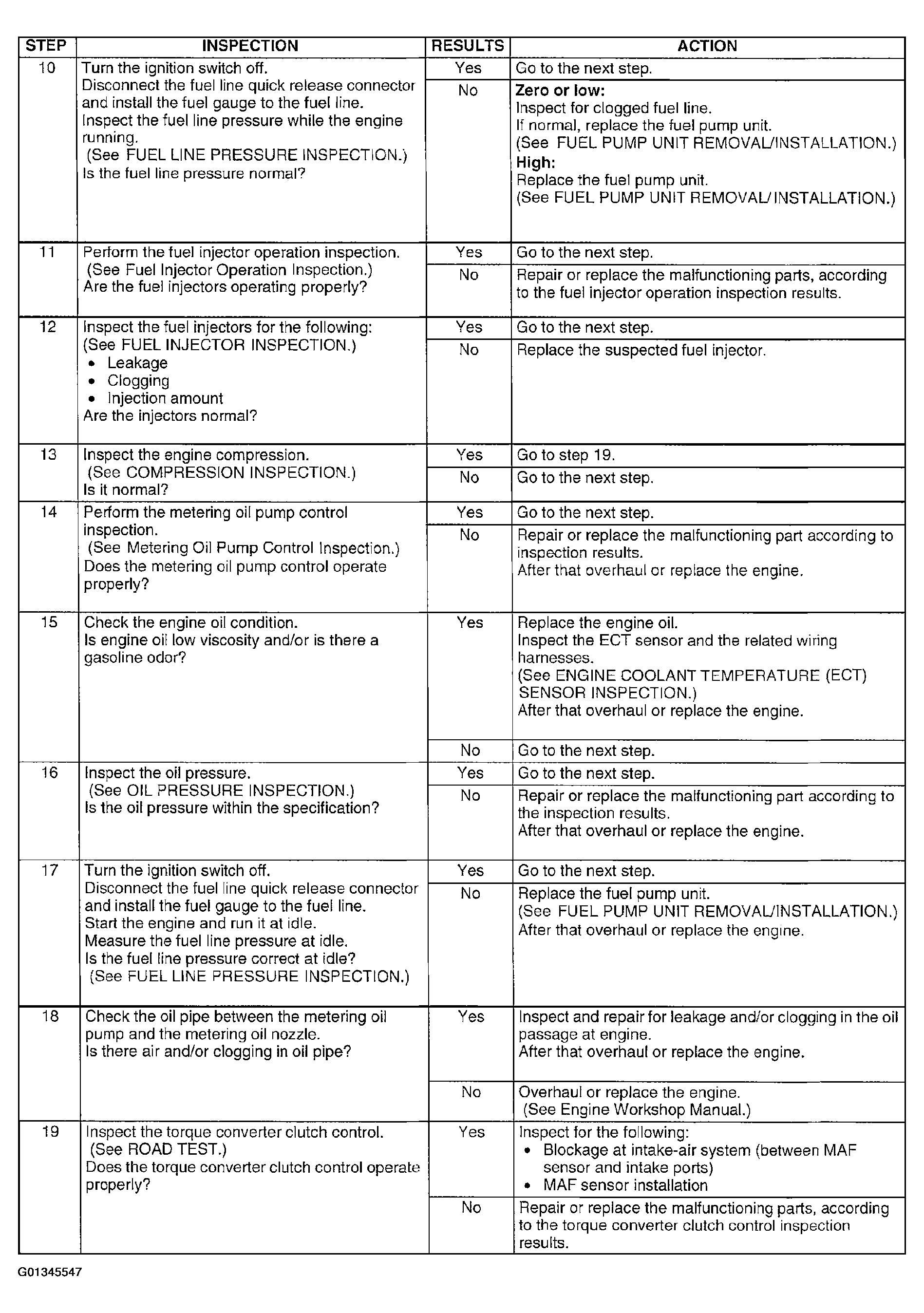

Fig 4: Diagnostic Procedure - No. 10 Low Idle/Stalls During Deceleration (Steps 10-19)

Courtesy of MAZDA MOTORS CORP.

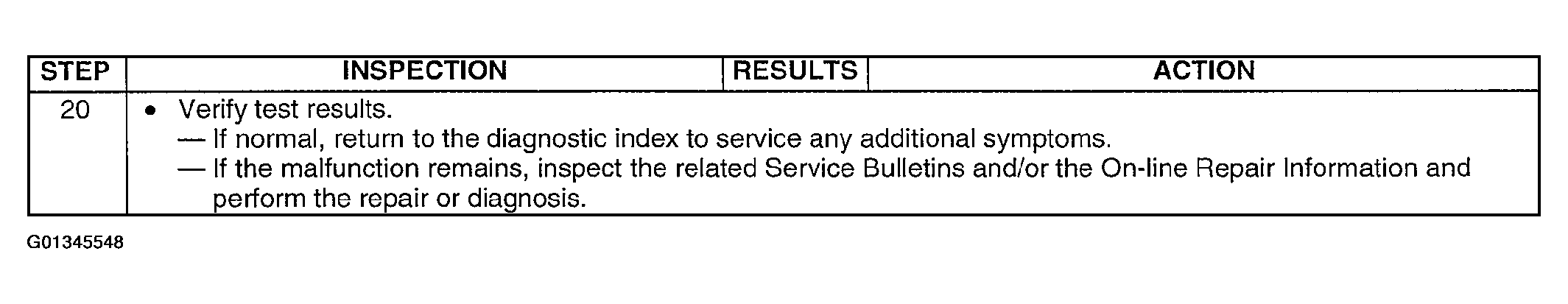

Fig 5: Diagnostic Procedure - No. 10 Low Idle/Stalls During Deceleration (Step 20)

Courtesy of MAZDA MOTORS CORP.
