Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

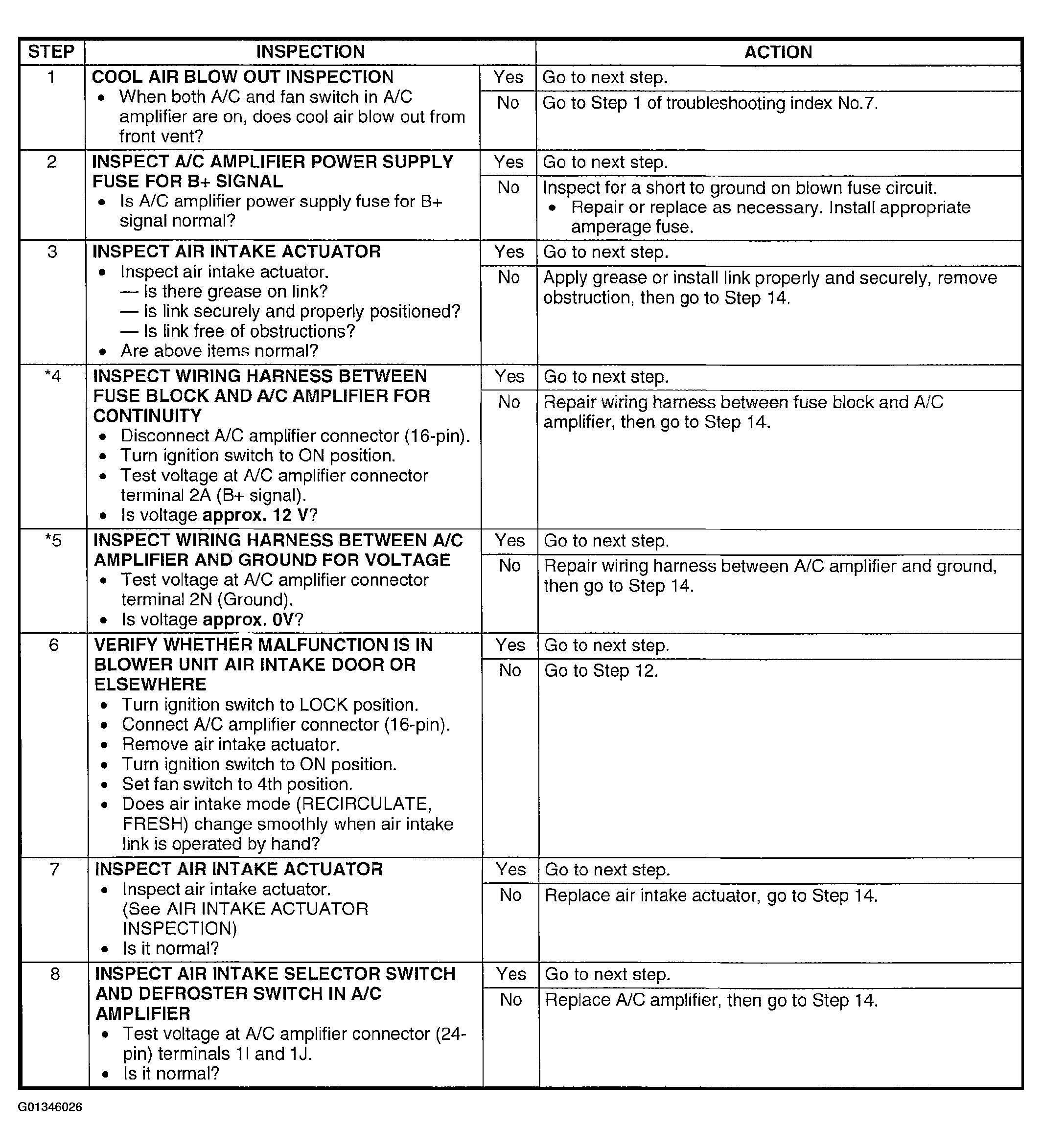

Fig 1: Symptom No. 5 Diagnostic Procedure Chart (Steps 1-8)
G01346026Courtesy of MAZDA MOTORS CORP.

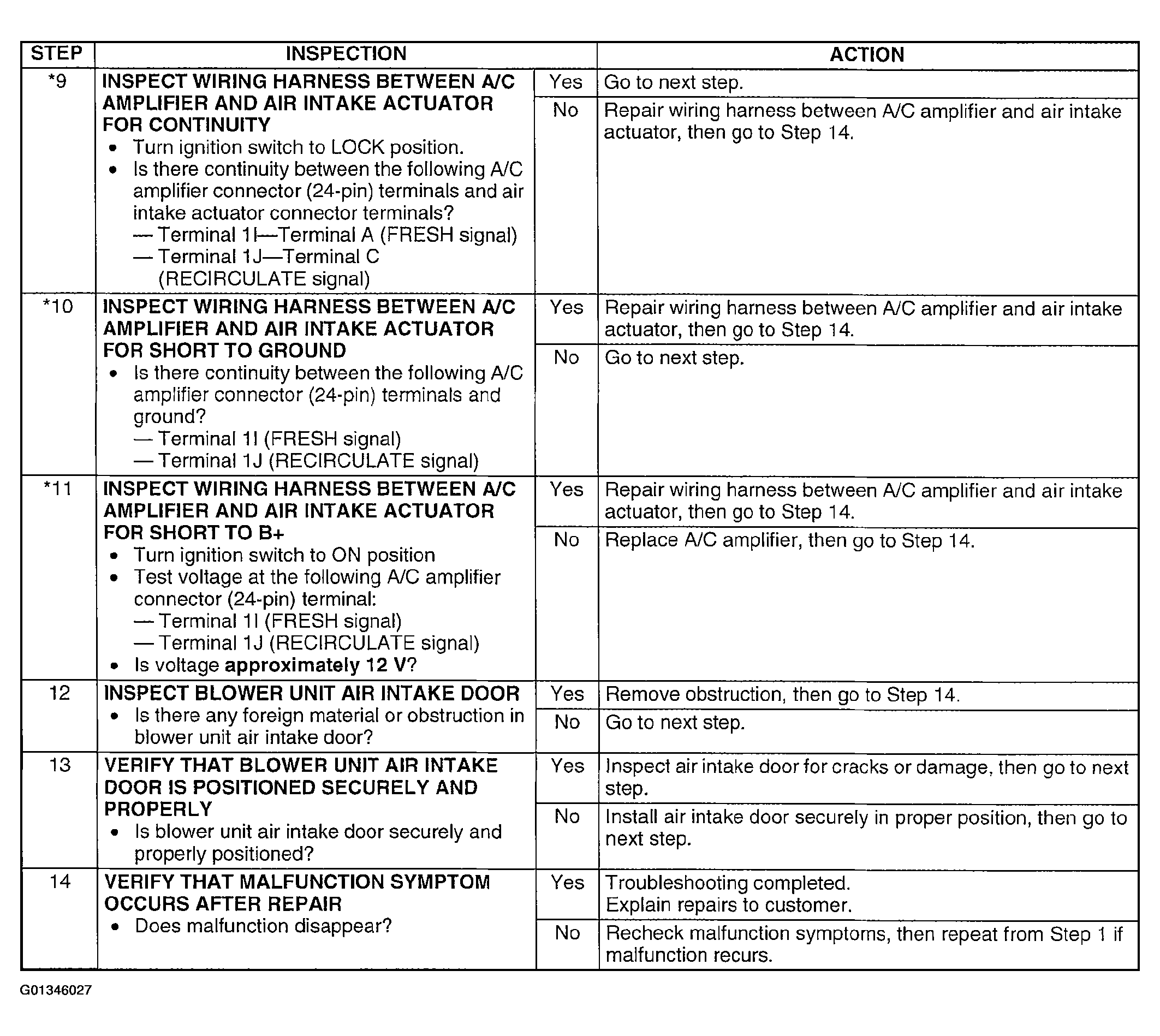

Fig 2: Symptom No. 5 Diagnostic Procedure Chart (Steps 9-14)
G01346027Courtesy of MAZDA MOTORS CORP.
