Bolt (Intermediate Shaft) Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place alignment marks on the intermediate shaft joint, and the steering gear and linkage for proper installation.
  2. Loosen the joint upper bolt.
  3. Remove the joint lower bolt and detach the intermediate shaft from the steering gear.

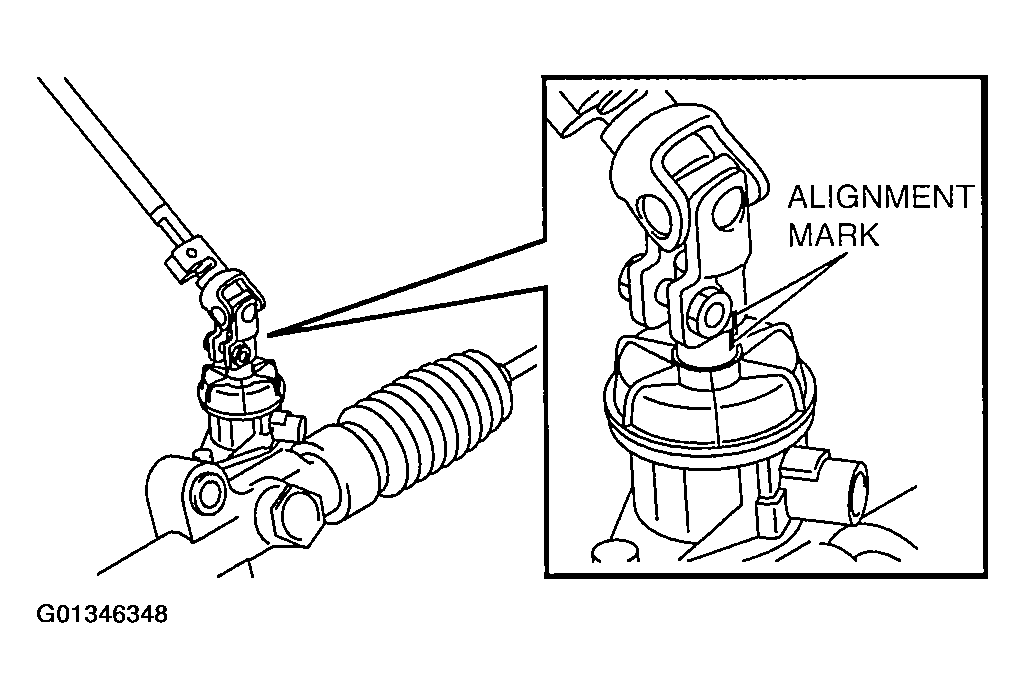

    Fig 1: Placing Alignment Marks On Intermediate Shaft Joint, Steering Gear & Linkage
    G01346348Courtesy of MAZDA MOTORS CORP.
