Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

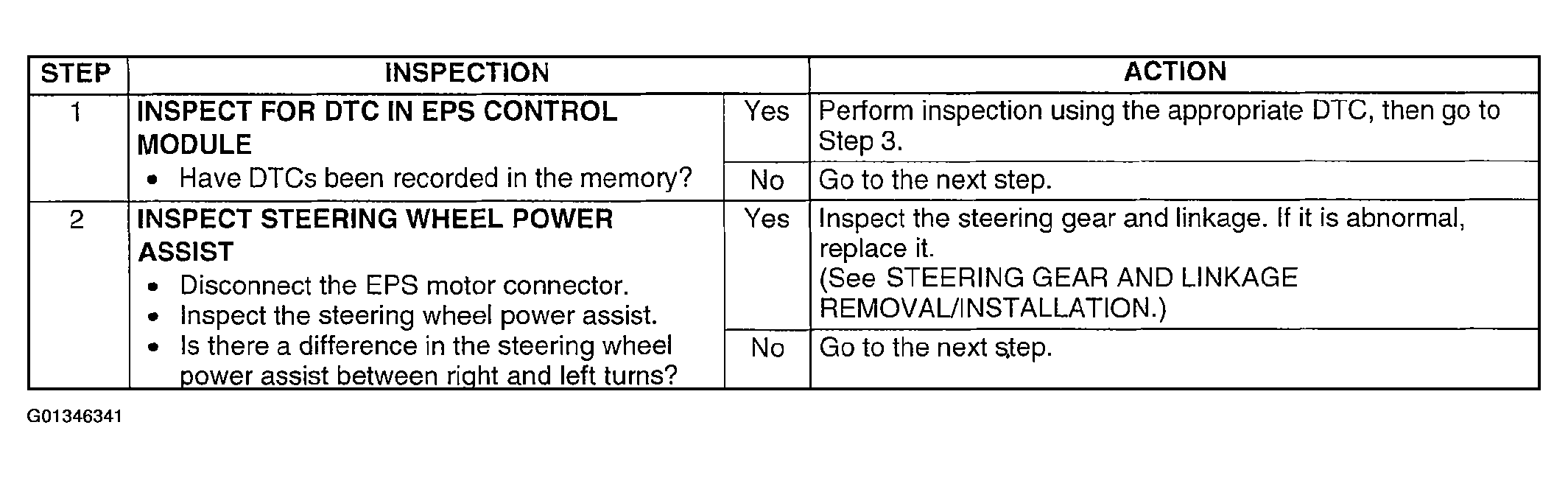

Fig 1: Diagnostic Procedure - No. 3 Power Assist Differs Between Right & Left Turns (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

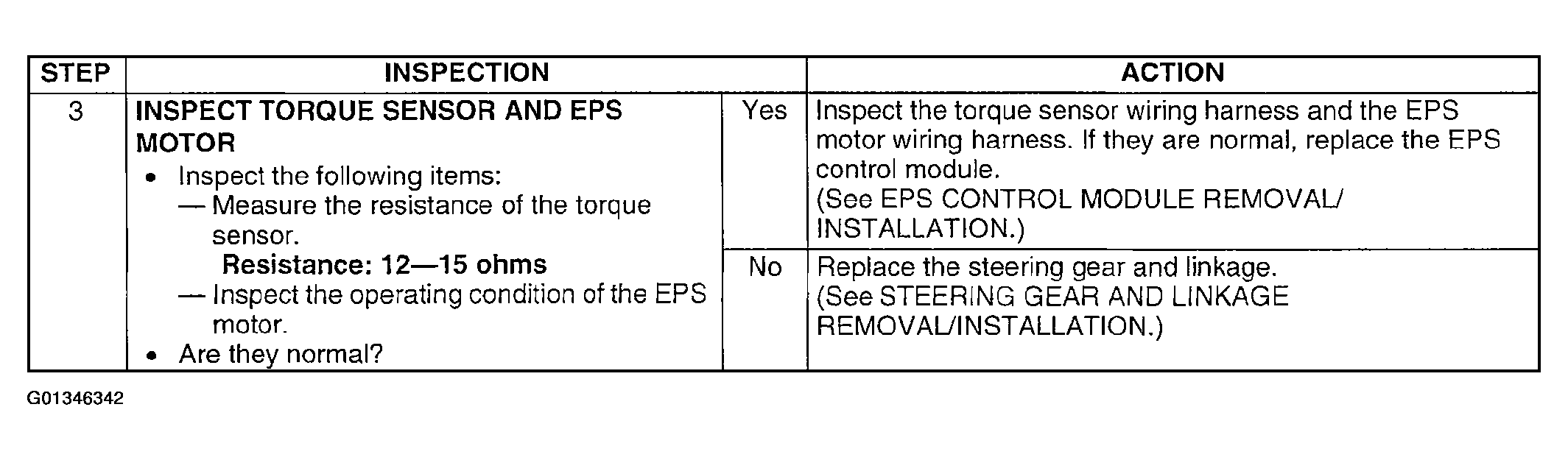

Fig 2: Diagnostic Procedure - No. 3 Power Assist Differs Between Right & Left Turns (Step 3)

Courtesy of MAZDA MOTORS CORP.
