Section 230 (Symptom Troubleshooting [Electronic Power Steering System])
>>
Electric Power Steering (EPS) System Wiring Diagram
Electric Power Steering (EPS) System Wiring Diagram
WARNING:
This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

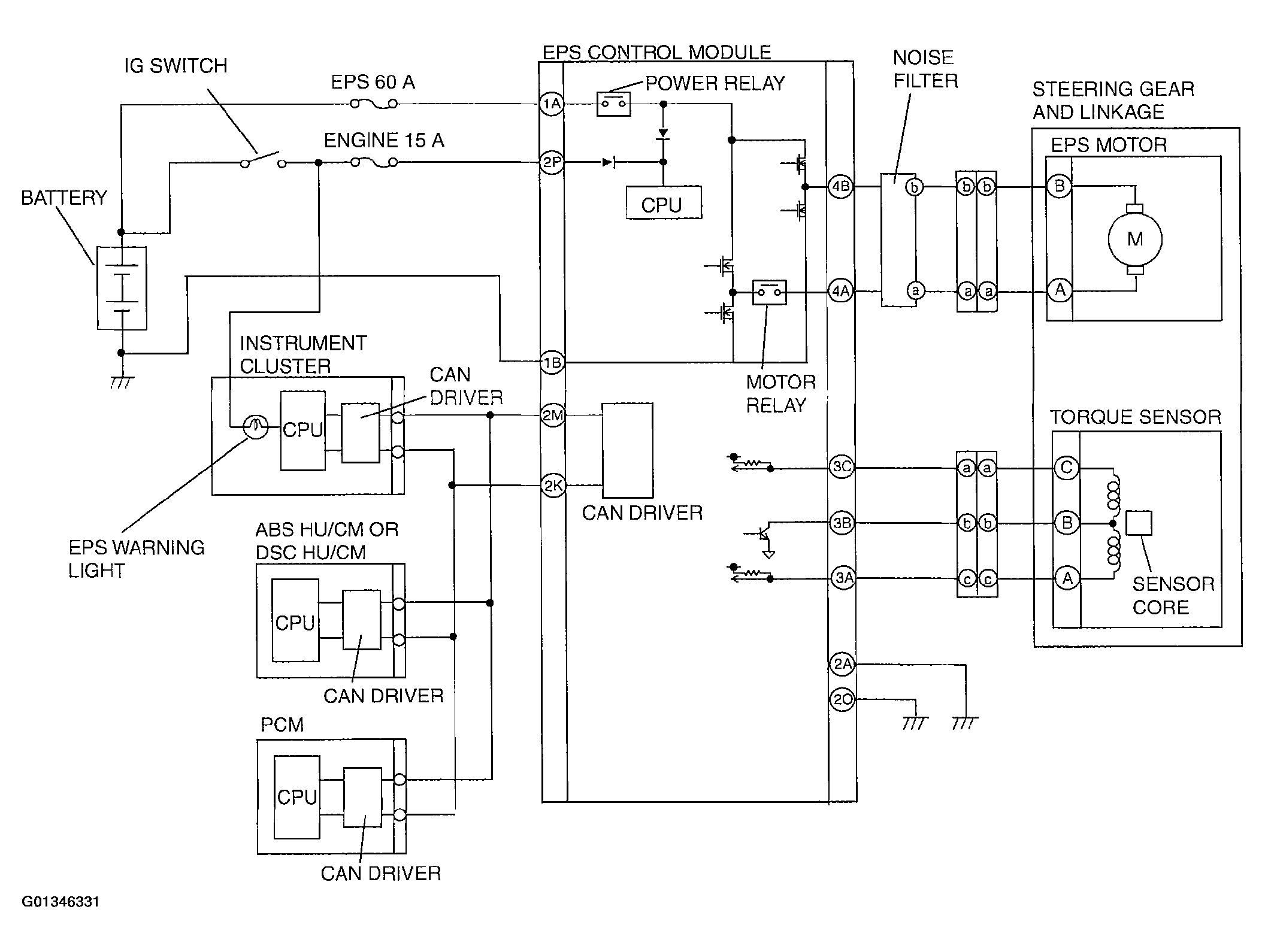

Fig 1: Electric Power Steering System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
