Transmission Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Remove the transmission carefully, holding it steady. If the transmission falls it could be damaged or cause injury.
  1. Support the transmission securely using a transmission jack.
  2. Remove the transmission installation bolt.
  3. Remove the transmission.

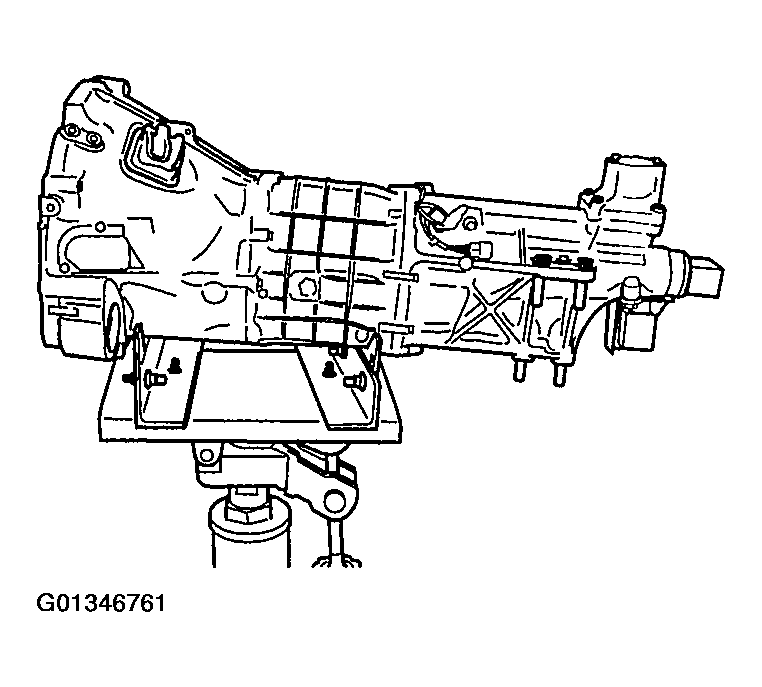

    Fig 1: Supporting Transmission Securely Using Transmission Jack
    G01346761Courtesy of MAZDA MOTORS CORP.
