No. 14: Torque Converter Clutch (TCC) Non-Operation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

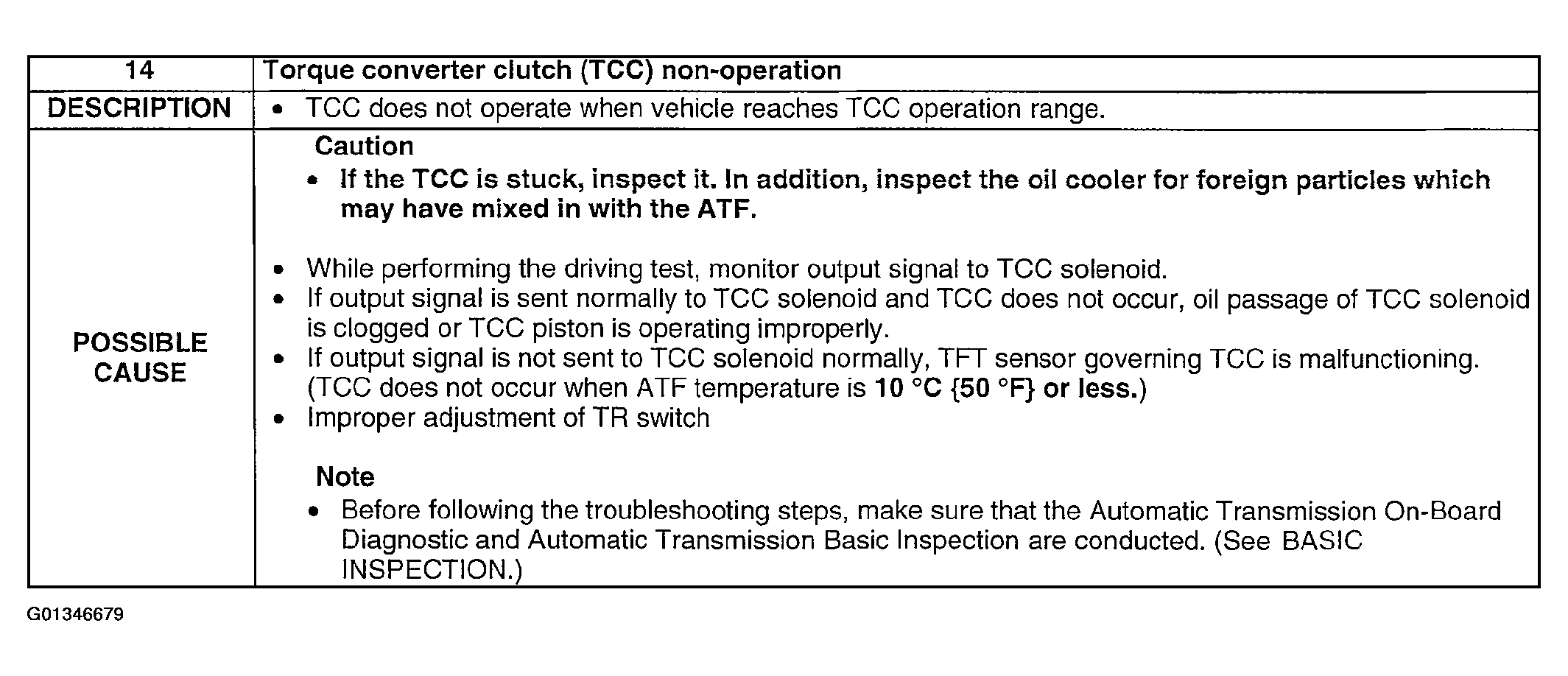

Fig 1: Possible Cause - No. 14 Torque Converter Clutch (TCC) Non-Operation

Courtesy of MAZDA MOTORS CORP.

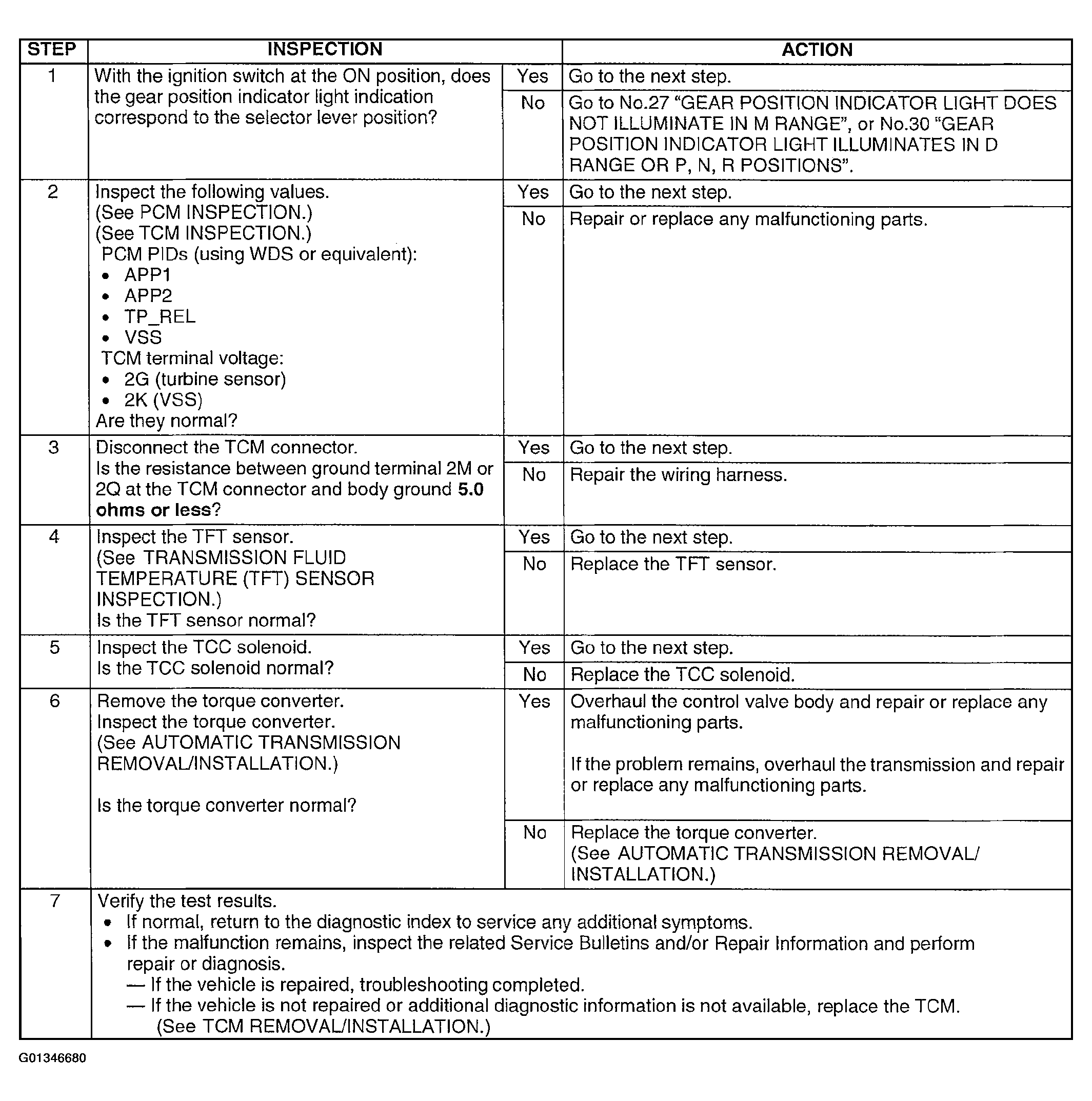

Fig 2: Diagnostic Procedure - No. 14 Torque Converter Clutch (TCC) Non-Operation

Courtesy of MAZDA MOTORS CORP.
