DTC P0841: Oil Pressure Switch "B" Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

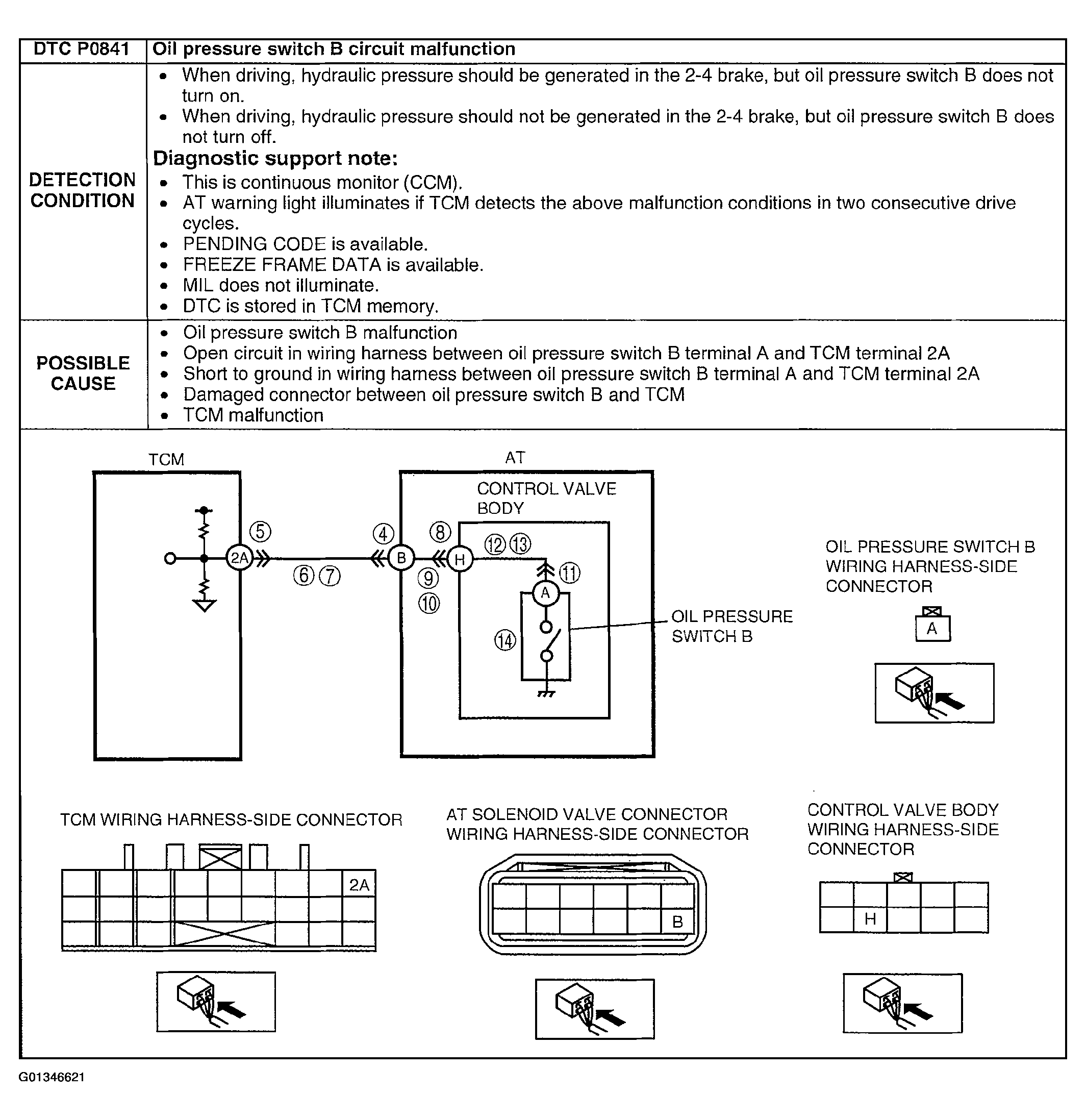

Fig 1: Possible Cause - DTC P0841: Oil Pressure Switch "B" Circuit Malfunction
G01346621Courtesy of MAZDA MOTORS CORP.
