Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

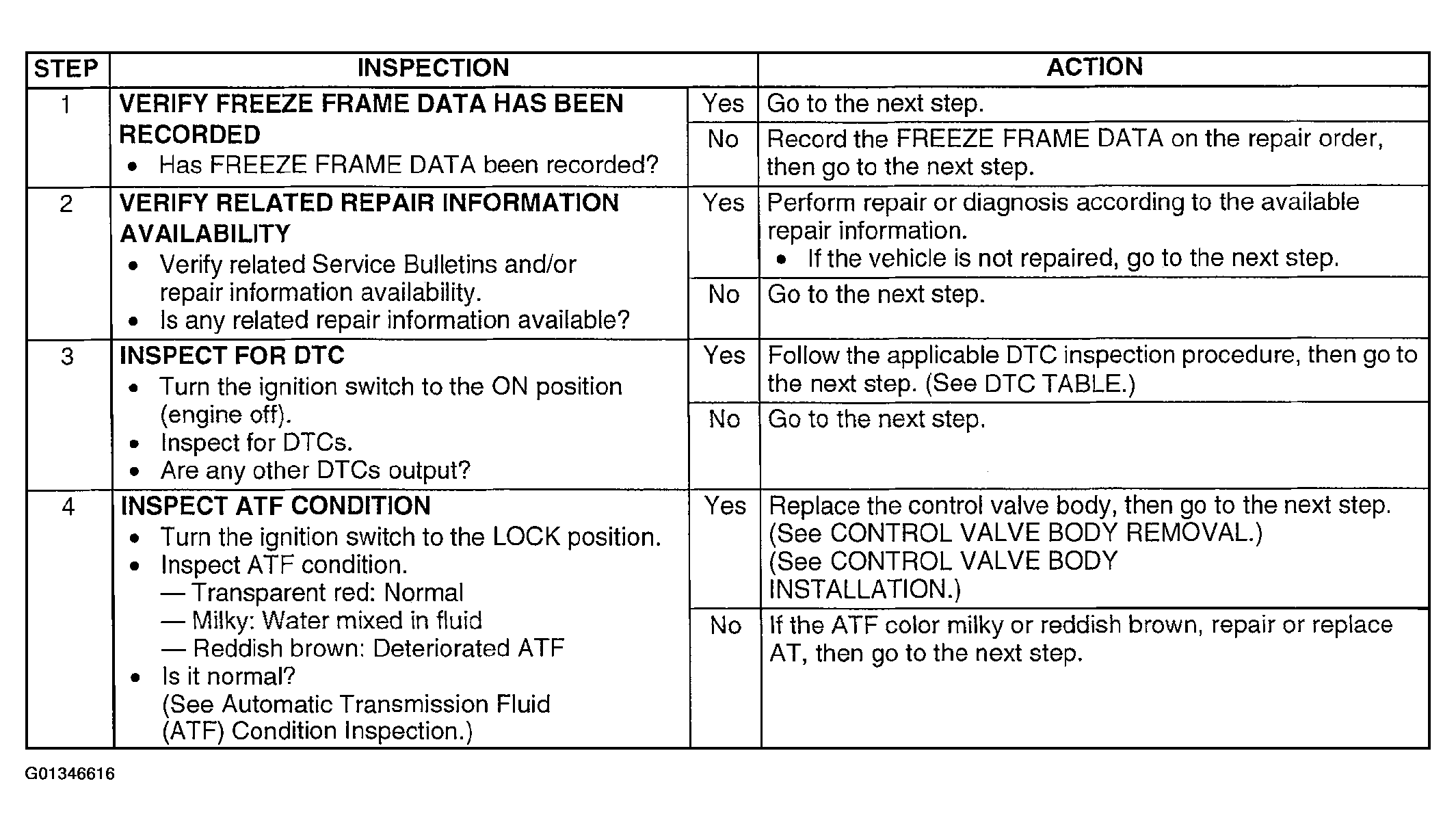

Fig 1: Diagnostic Procedure - DTC P0767 (Steps 1-4)
G01346616Courtesy of MAZDA MOTORS CORP.

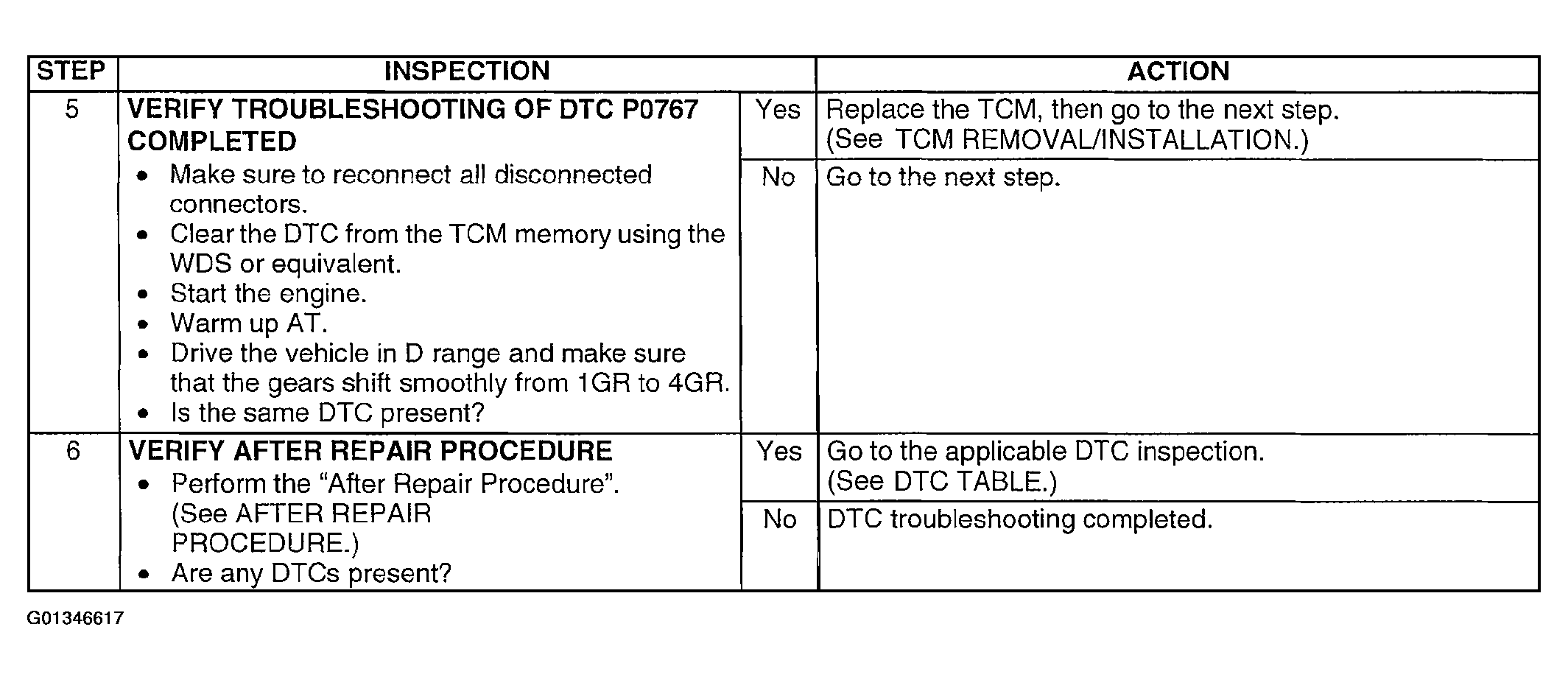

Fig 2: Diagnostic Procedure - DTC P0767 (Steps 5-6)
G01346617Courtesy of MAZDA MOTORS CORP.
