Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Diagnostic Procedure - Transmission Fluid Temperature (TFT) Sensor Circuit Malfunction (Short To Ground) - (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

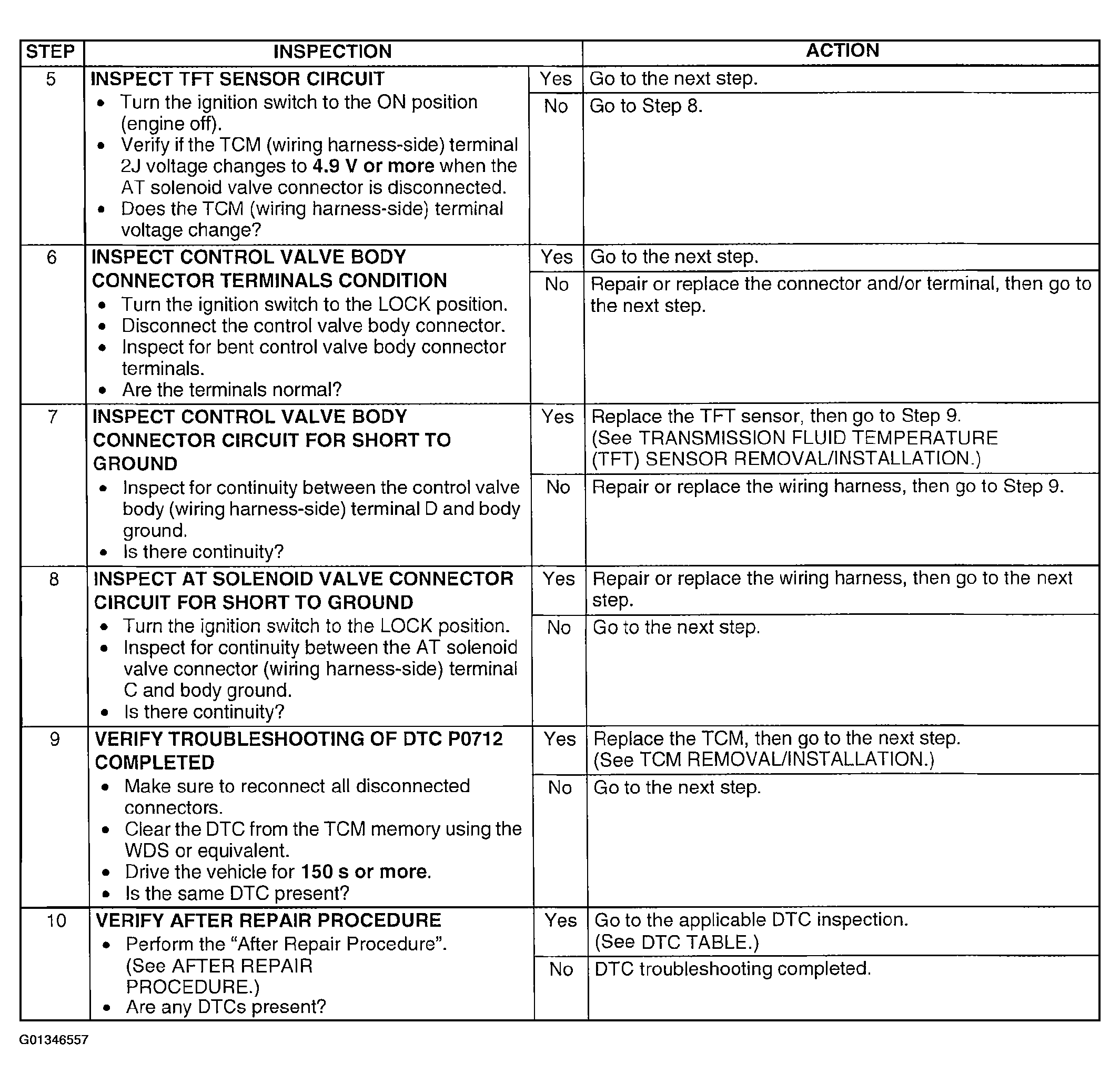

Fig 2: Diagnostic Procedure - Transmission Fluid Temperature (TFT) Sensor Circuit Malfunction (Short To Ground) - (Steps 5-10)

Courtesy of MAZDA MOTORS CORP.
