Clutch Cover, Clutch Disc Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SSTs.
  2. In criss-cross pattern, loosen the bolts one rotation at a time until there is no remaining spring pressure.
  3. Remove the clutch cover and the clutch disc.

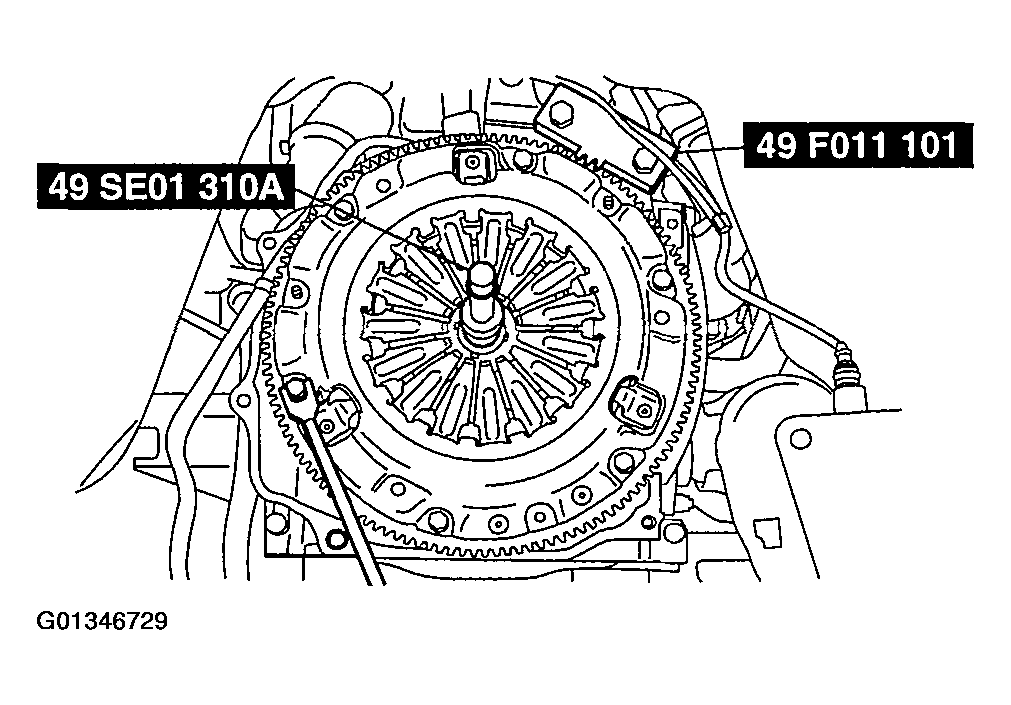

    Fig 1: Installing Special Tool On Clutch Disc & Flywheel
    G01346729Courtesy of MAZDA MOTORS CORP.
