Crankshaft Pulley Lock Bolt Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the crankshaft pulley using the SSTs  .
  2. Tighten the new crankshaft pulley lock bolt in four steps.
    1. Tighten to 120 N.m. {12.2 kgf.m, 88.5 ft.lbf}  .
    2. Loosen 360°  (one full turn in reverse order.)
    3. Tighten to 47-53 N.m {4.8-5.4 kgf.m, 35-39 ft.lbf}  .
    4. Install the A/C compressor.

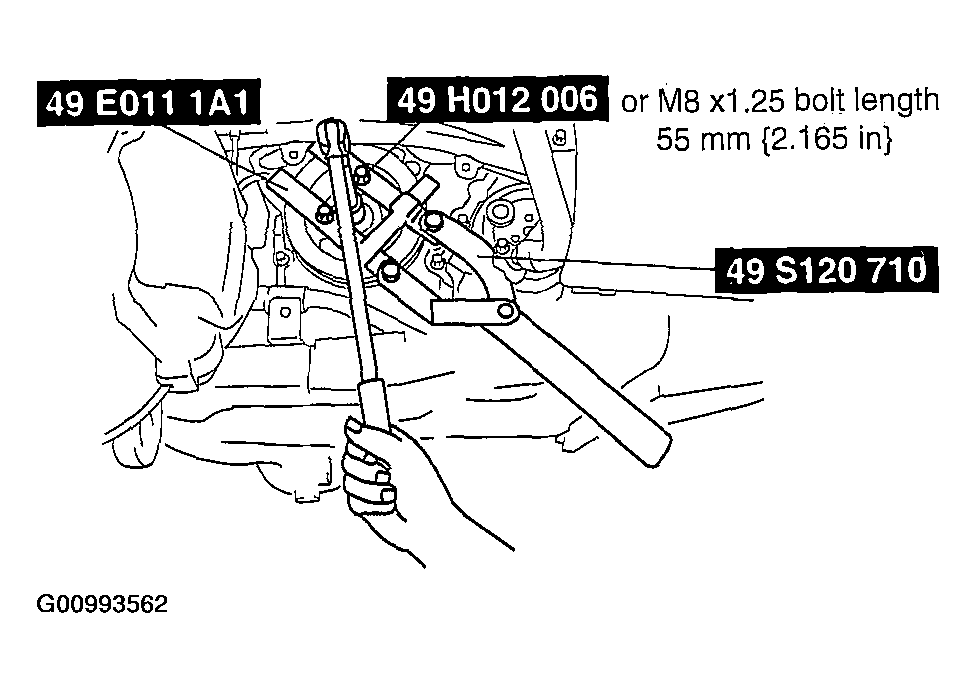

    Fig 1: Tightening Crankshaft Pulley Lock Bolt
    G00993562Courtesy of MAZDA MOTORS CORP.
