Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

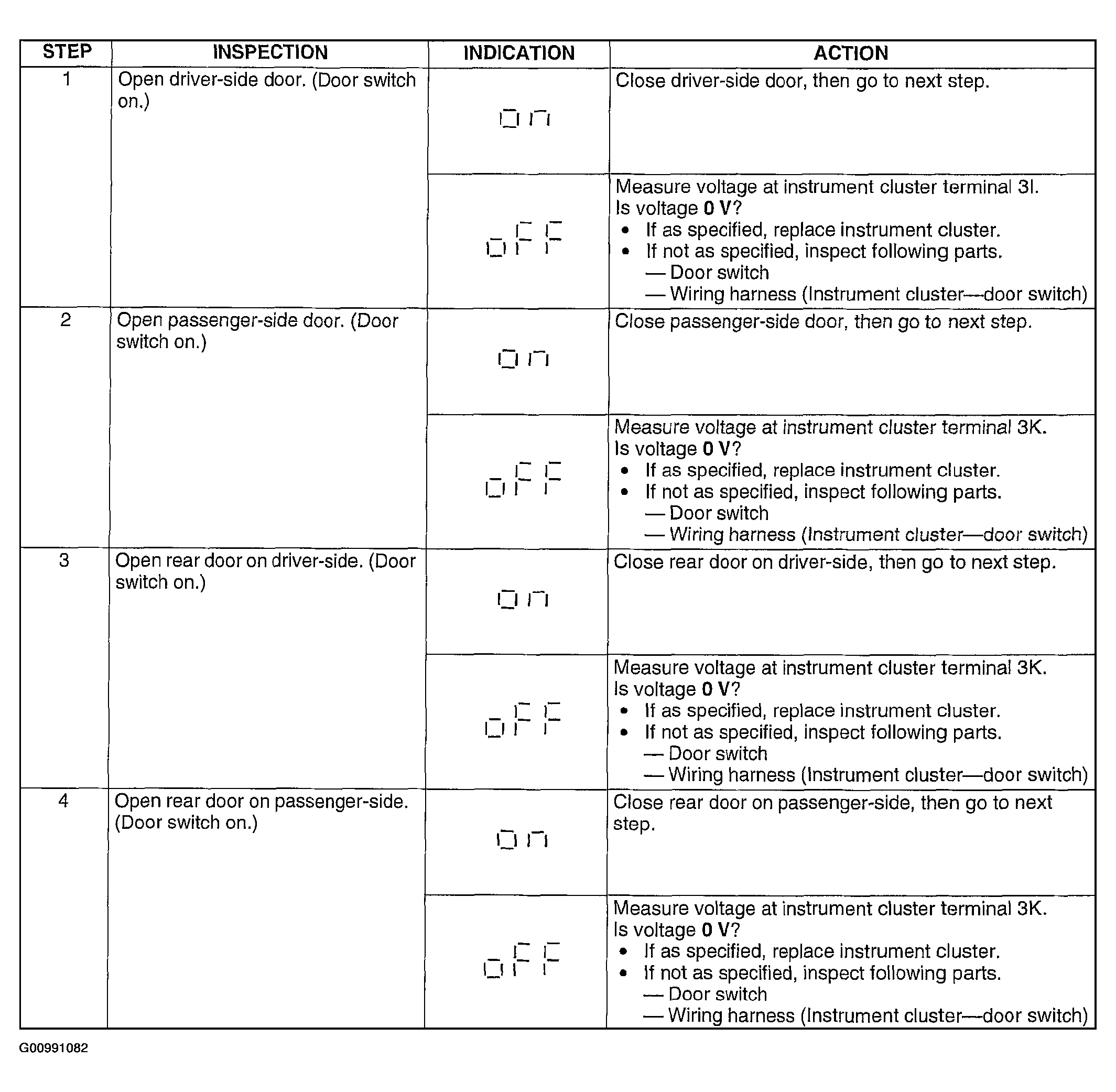

Fig 1: DTC 04 : Door Switch On/Off Signal Diagnostic Procedure (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

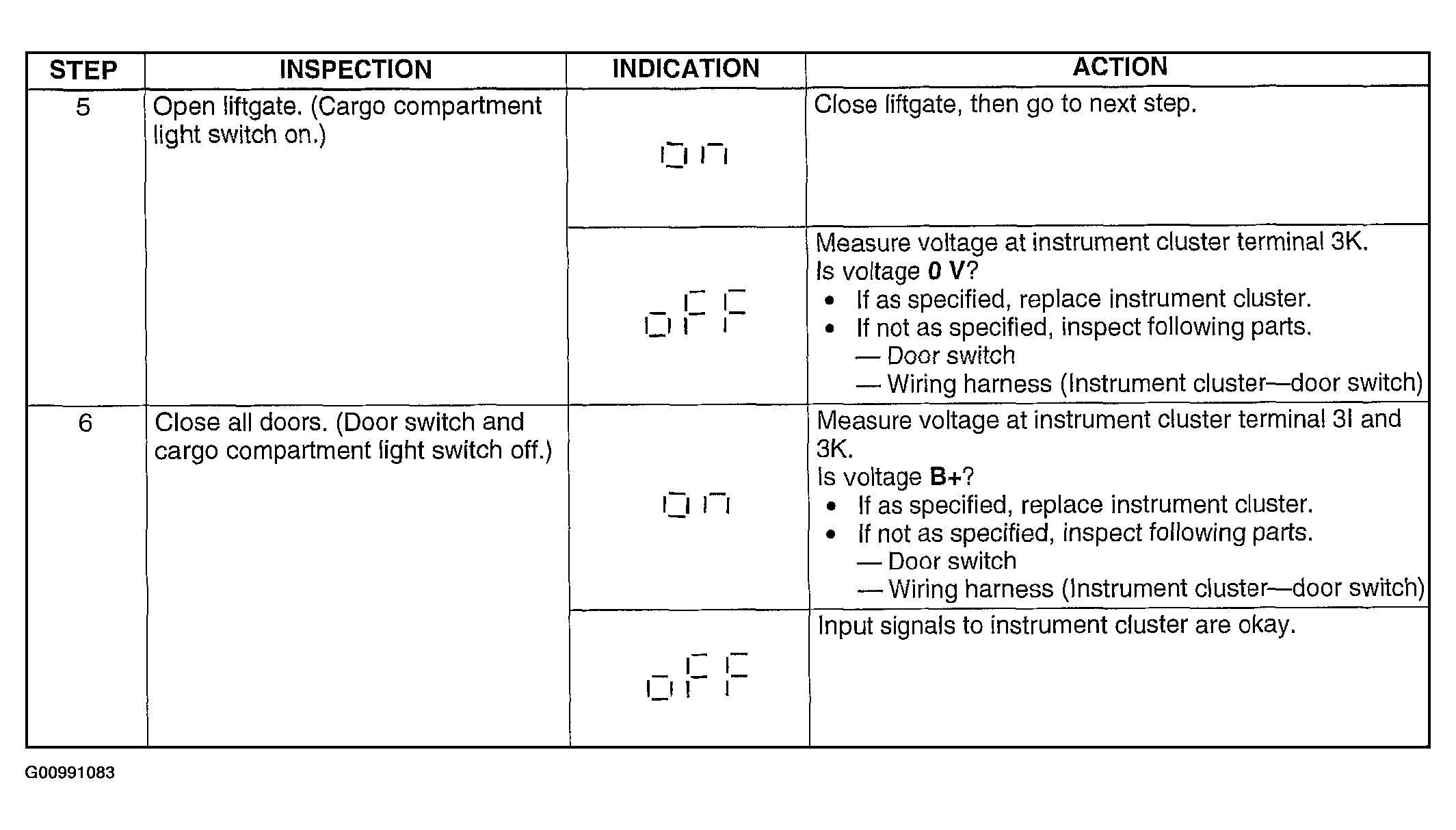

Fig 2: DTC 04 : Door Switch On/Off Signal Diagnostic Procedure (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.
