Passenger's Seat (For Vehicles With Standard Deployment Air Bag System)

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

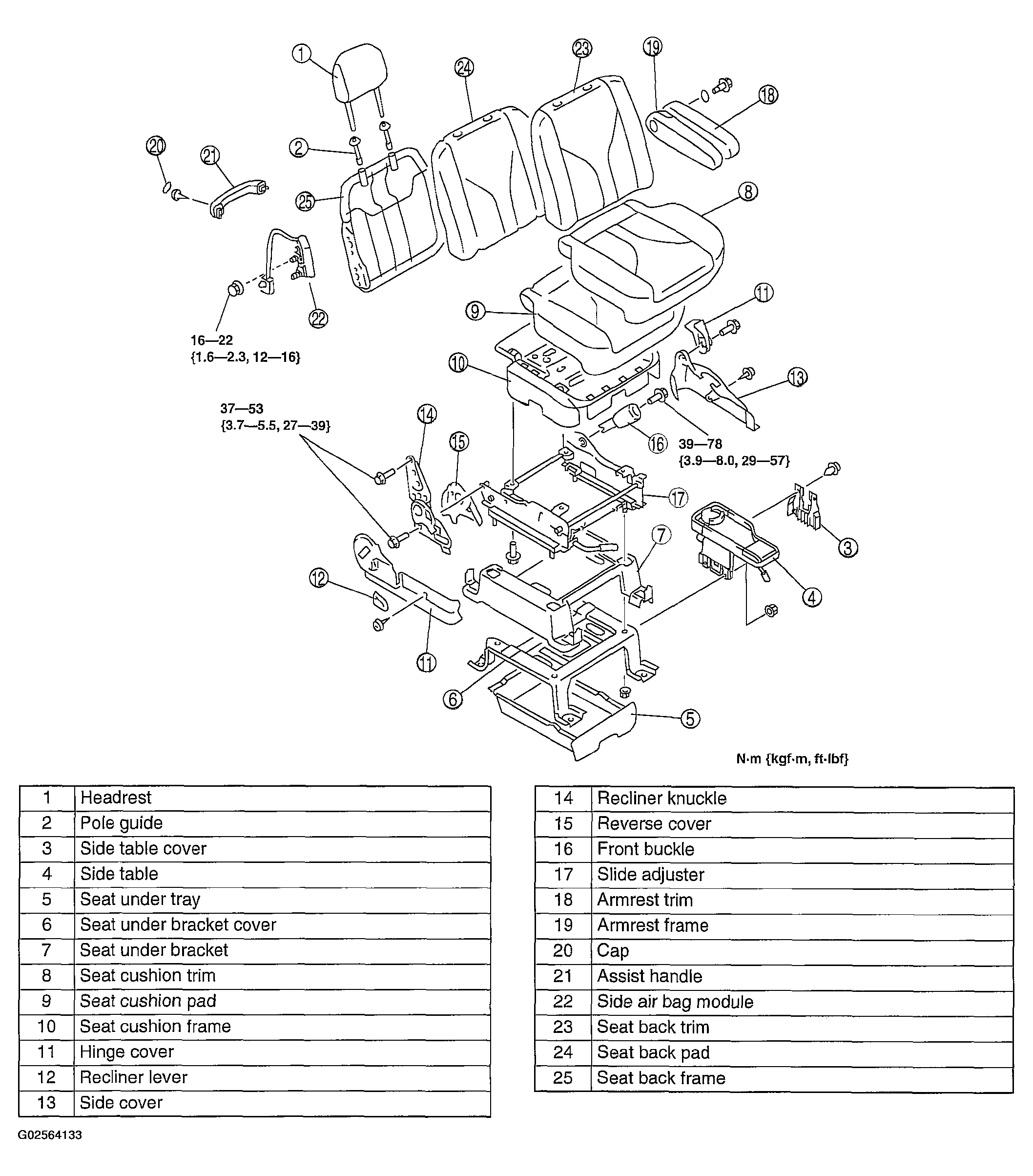

Fig 1: Disassembling/Assembling Front Seat - Passenger's Seat (For Vehicles With Standard Deployment Air Bag System)
G02564133Courtesy of MAZDA MOTORS CORP.
