Slide Adjuster Disassembly Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the connectors.

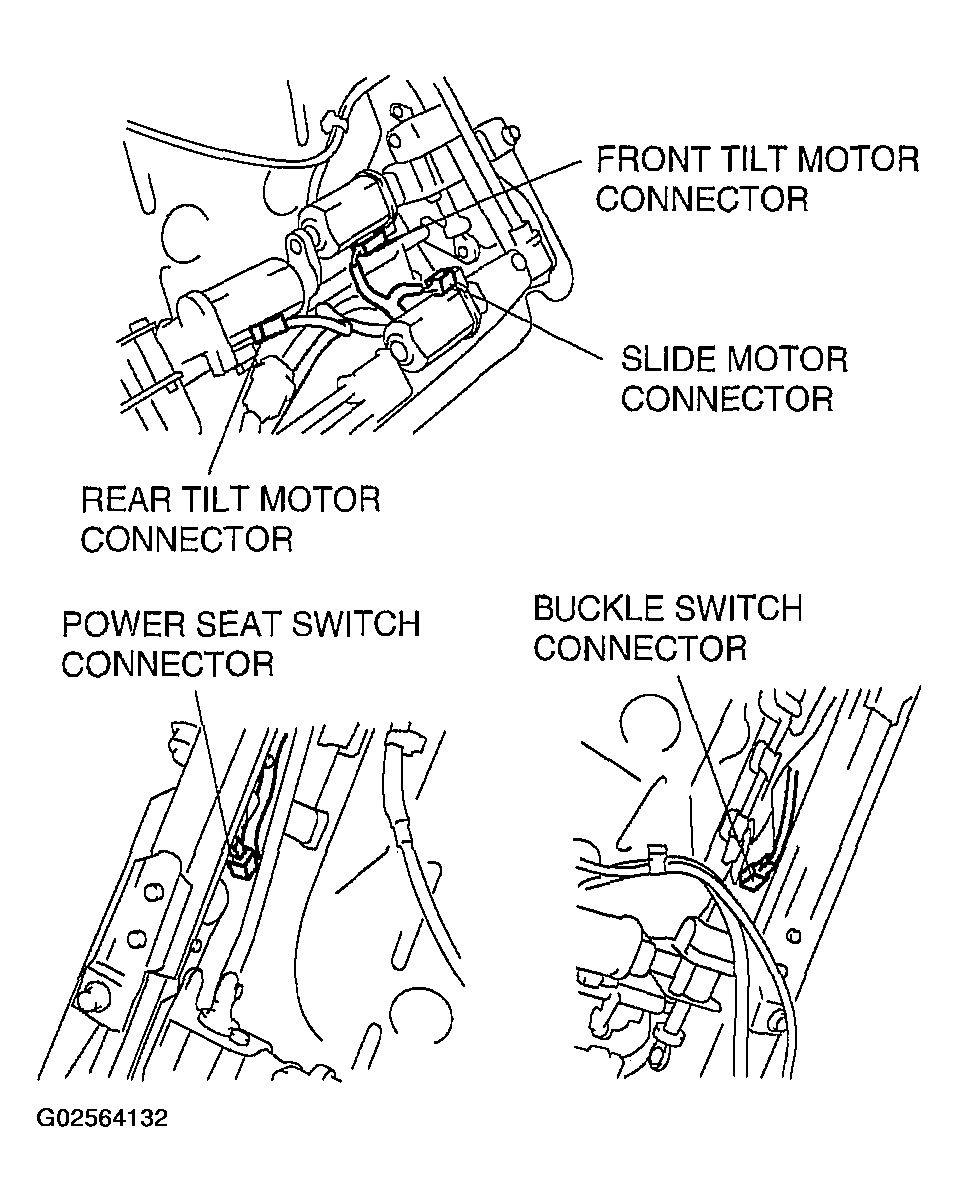

    Fig 1: Disconnecting Slide Adjuster Connectors
    G02564132Courtesy of MAZDA MOTORS CORP.
