Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

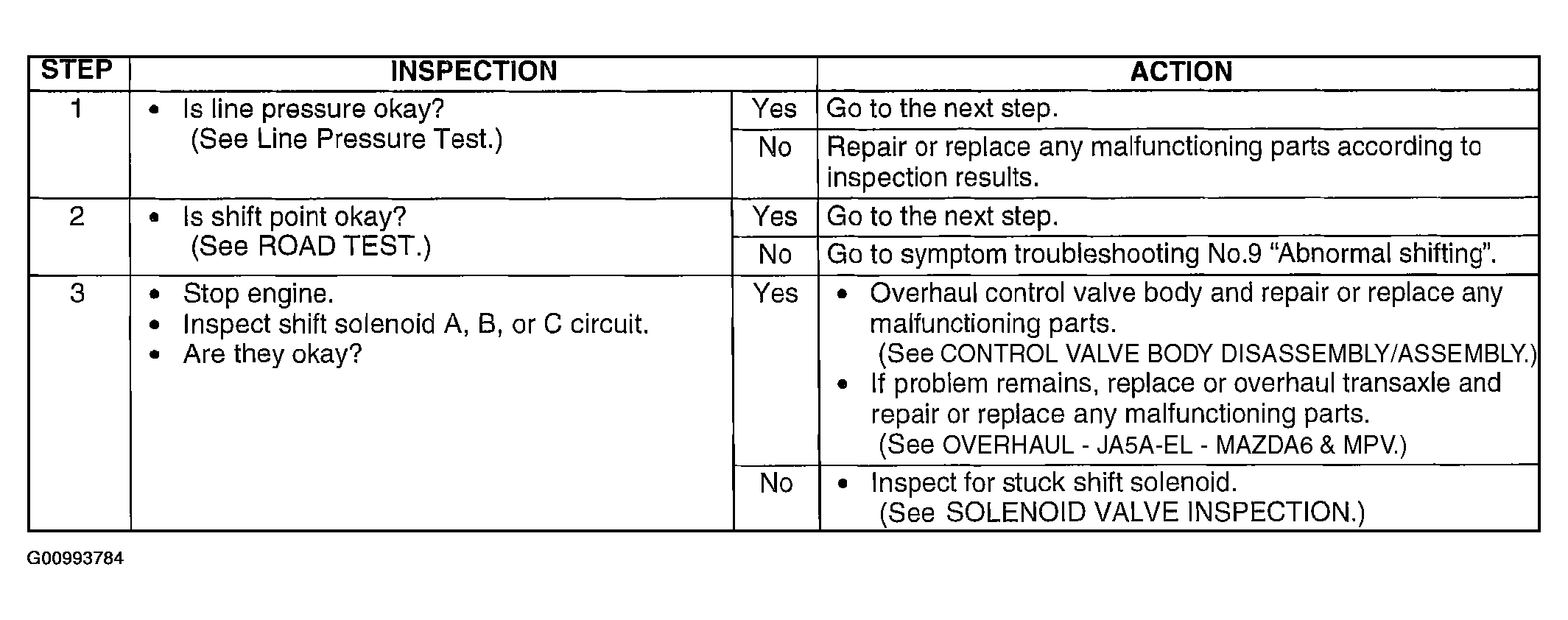

Fig 1: No. 14: Engine Flares Up Or Slips When Upshifting Or Downshifting - Diagnostic Procedure (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

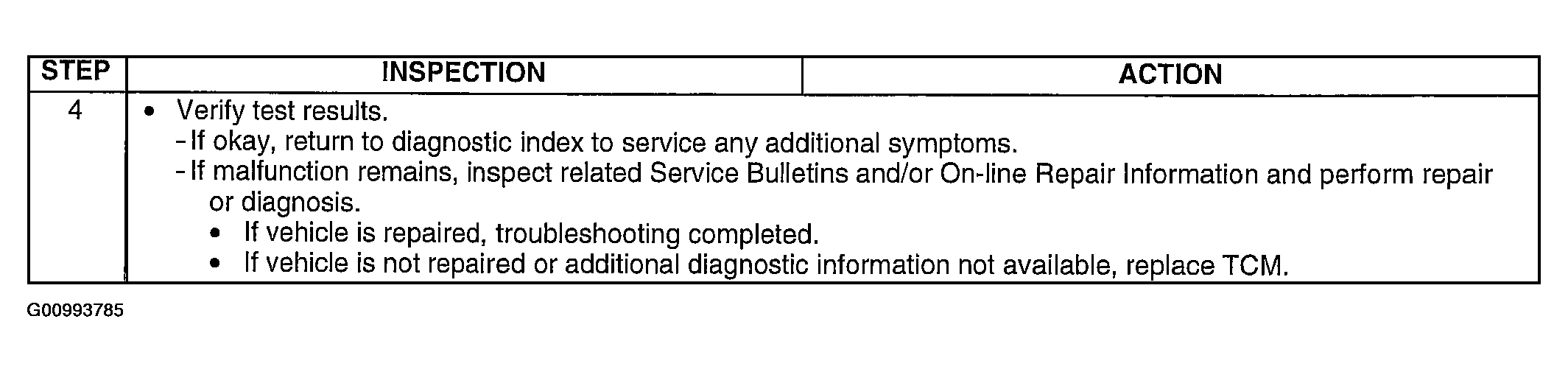

Fig 2: No. 14: Engine Flares Up Or Slips When Upshifting Or Downshifting - Diagnostic Procedure (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
