EGR Valve Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the air cleaner.
  3. Disconnect the vacuum hose.
  4. Disconnect the EGR pipe
  5. Remove in the order indicted in the illustration.
    Fig 1: EGR Valve Removing/Installing Sequence
    G00993715Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.

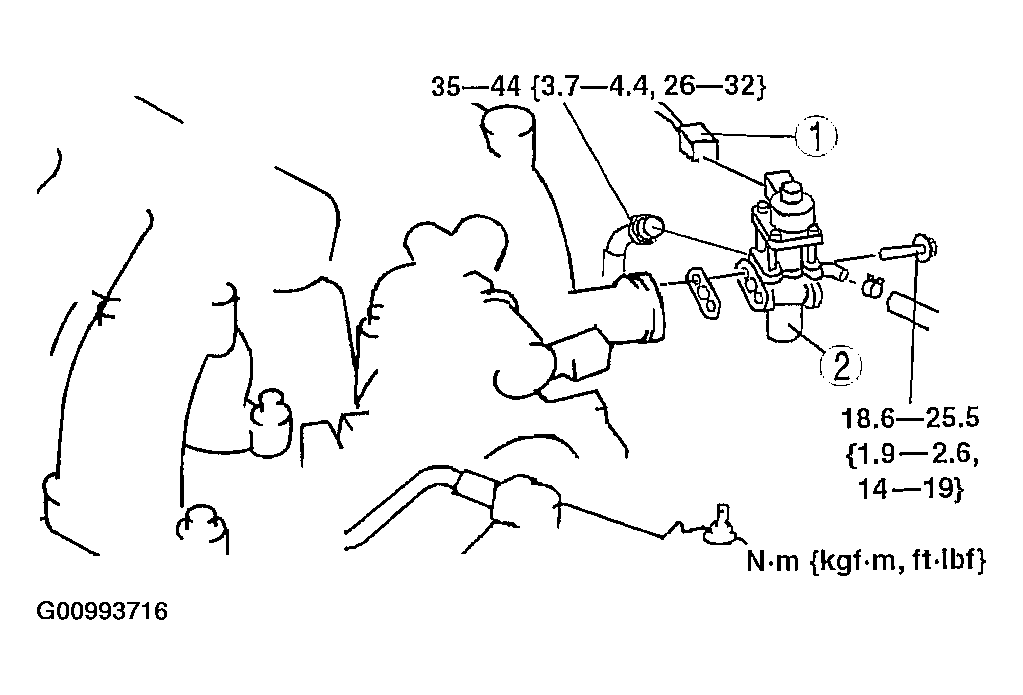

    Fig 2: Removing/Installing EGR Valve
    G00993716Courtesy of MAZDA MOTORS CORP.
