Rear Bumper Reinforcement Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear bumper. (See REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION .)
  3. Remove the bolt.
  4. Remove the bumper reinforcement.
  5. Install in the reverse order of removal.

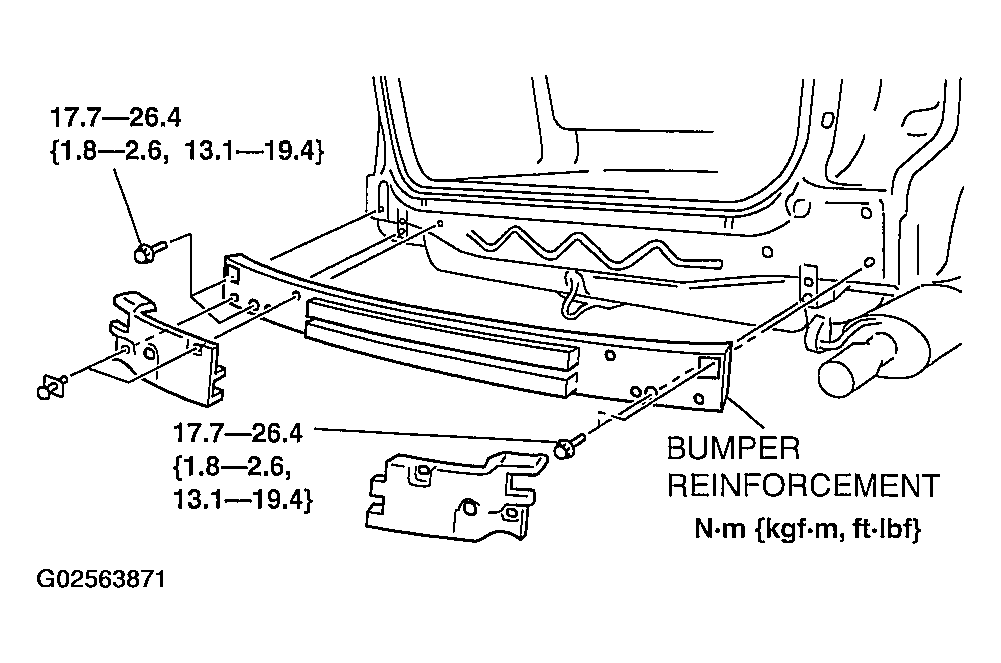

    Fig 1: Removing/Installing Rear Bumper Reinforcement
    G02563871Courtesy of MAZDA MOTORS CORP.
