Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

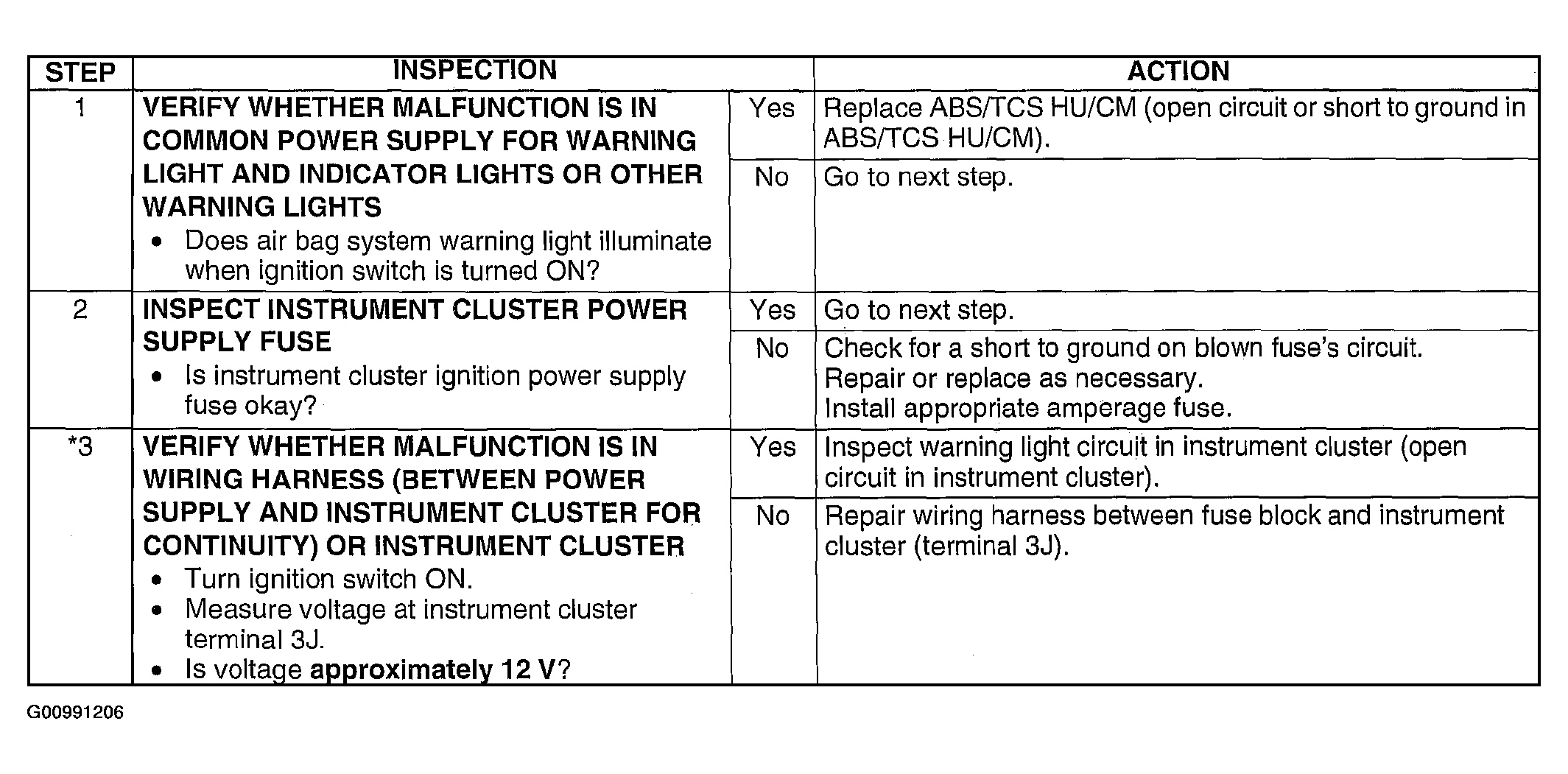

Fig 1: Diagnostic Procedure - NO .5 ABS Warning Light, Brake System Warning Light, TCS Indicator Light & TCS OFF Light Do Not Illuminate (With TCS)

Courtesy of MAZDA MOTORS CORP.
