Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

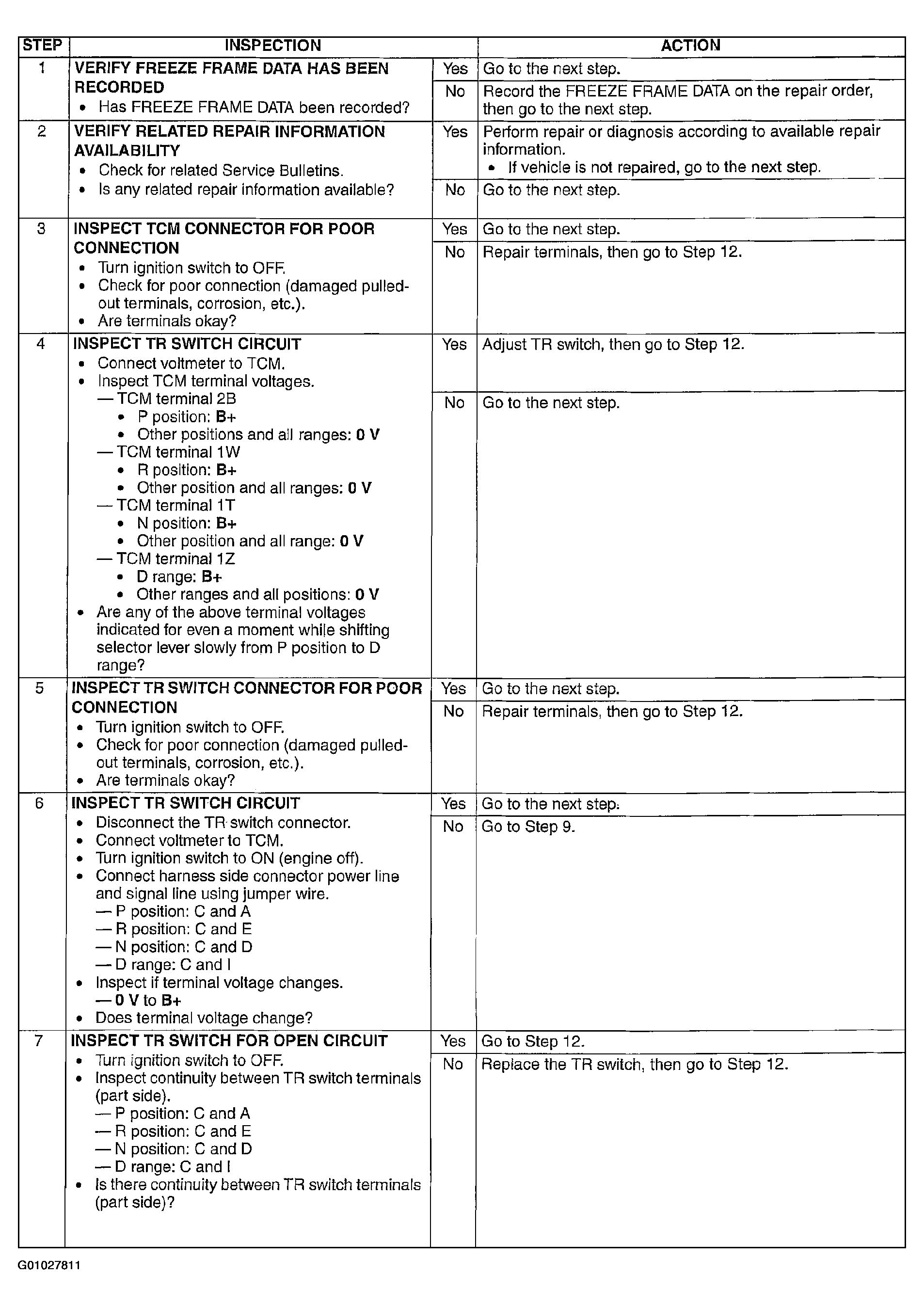

Fig 1: Diagnostic Procedure - DTC P0706 (Steps 1 - 7)
G01027811Courtesy of MAZDA MOTORS CORP.

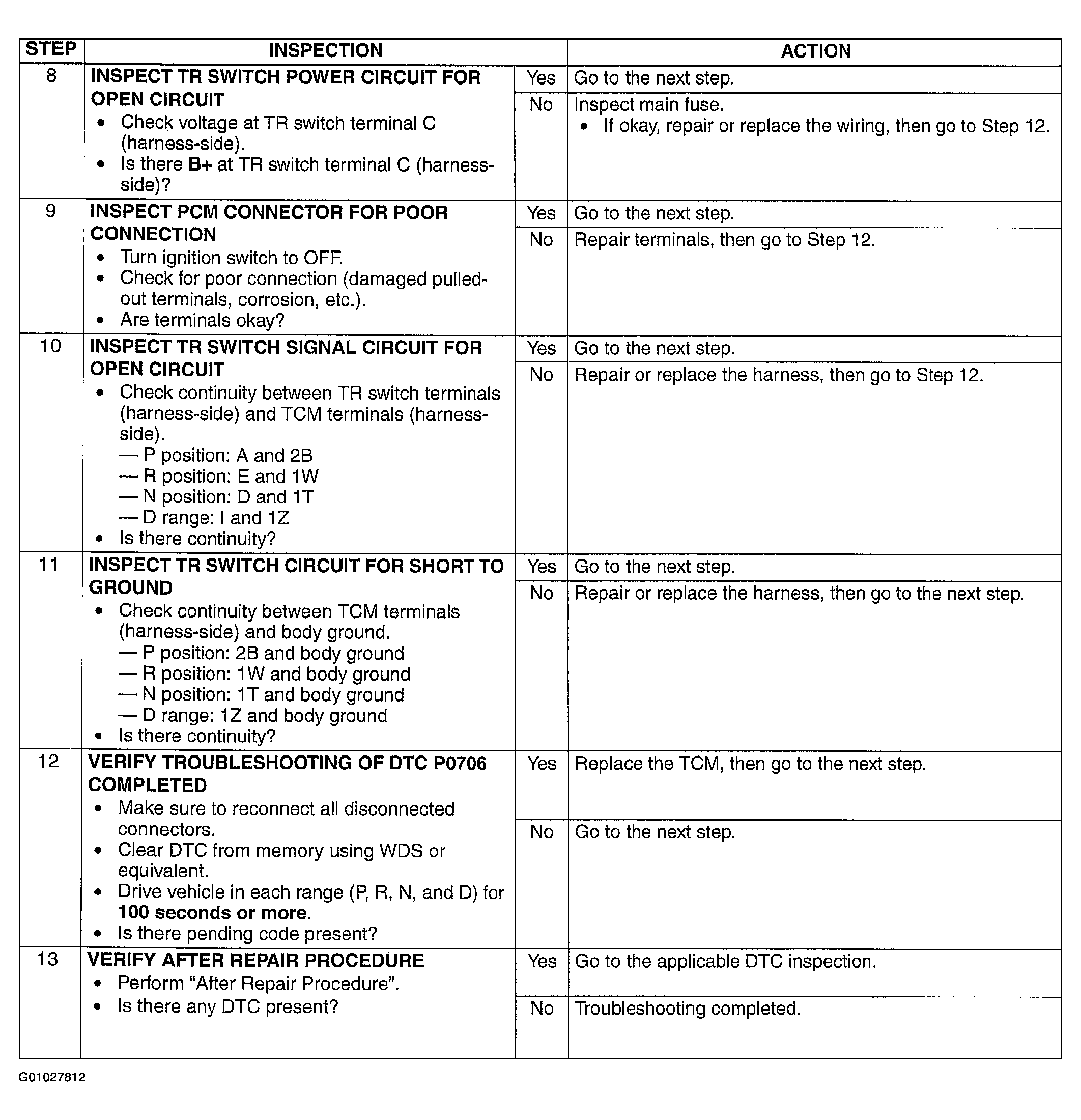

Fig 2: Diagnostic Procedure - DTC P0706 (Steps 8 - 13)
G01027812Courtesy of MAZDA MOTORS CORP.
