Solenoid Valve Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Denting or scratching these components will reduce the ability of the transaxle to shift properly. When handling these components or the valve body that contains them, be careful not to drop or hit them.

Remove the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
Remove the solenoid valves and manual valve.

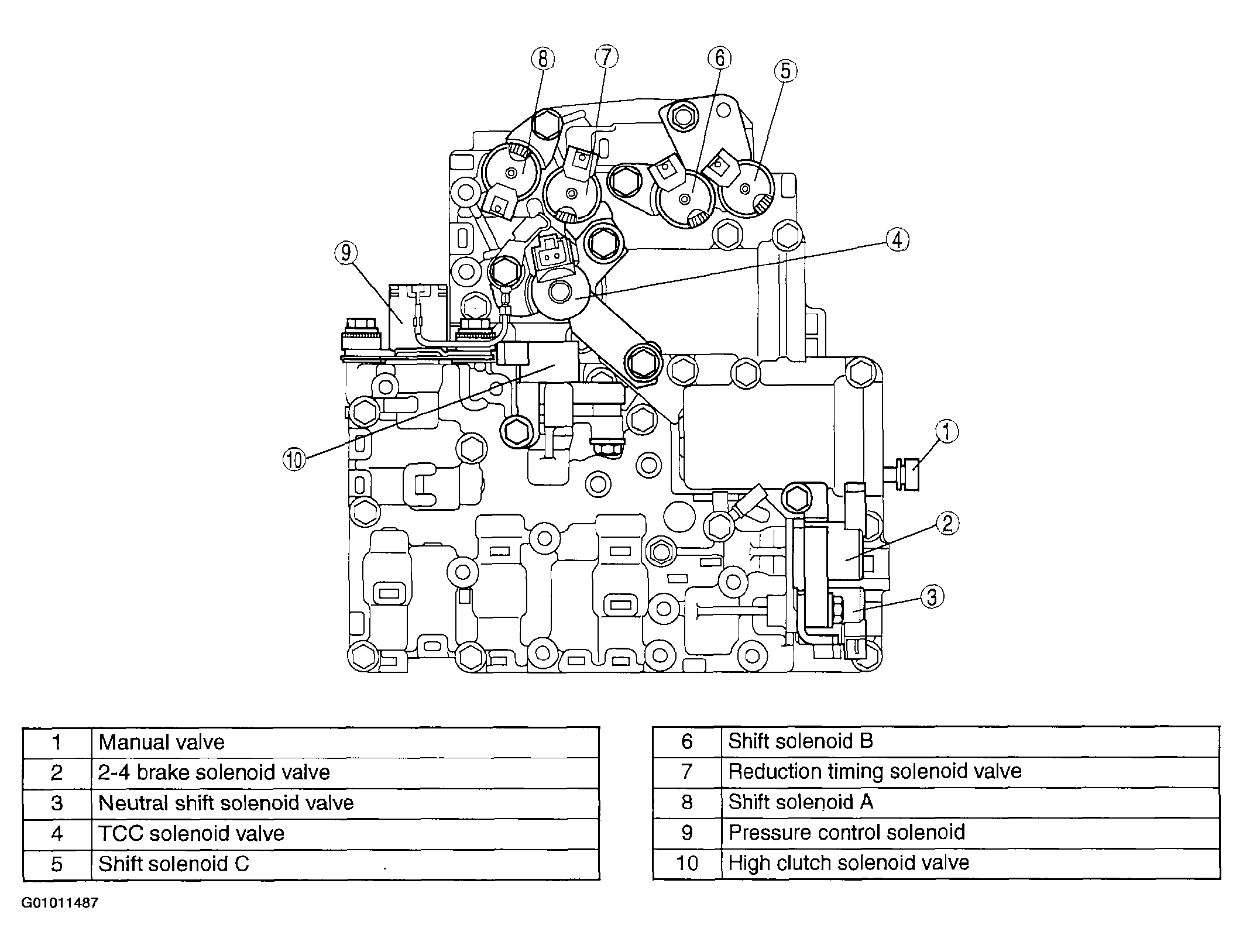

Fig 1: Locating Components Of Control Valve Body
Courtesy of MAZDA MOTORS CORP.
Apply ATF to a new O-ring and install it on the solenoid valve.
Install the solenoid valve and manual valve in the control valve body.
Tightening torque

8.34-10.30 N.m

(85.0-105.0 kgf.cm, 73.8-91.1 in.lb)
Install the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
Add the ATF while the engine is idling, and inspect the ATF level and leakage. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .) (See Automatic Transaxle Fluid (ATF) Level Inspection .)
Perform the time lag test and line pressure test. (See MECHANICAL SYSTEM TEST .)
Perform the road test. (See ROAD TEST .)
