Oil Cooler Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Drain the ATF into a container. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  3. Remove the radiator. (See RADIATOR REMOVAL/INSTALLATION .)
  4. Remove in the order indicated. See Fig 1.
  5. Install in the reverse order of removal.
  6. Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  7. Connect the negative battery cable.
  8. Inspect for oil leakage from the oil pipes and oil hoses.
  9. Inspect for coolant from the hoses.
  10. Inspect the ATF level and condition. (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION .)
  11. Perform the line pressure test. (See MECHANICAL SYSTEM TEST .)
  12. Perform the road test. (See ROAD TEST .)

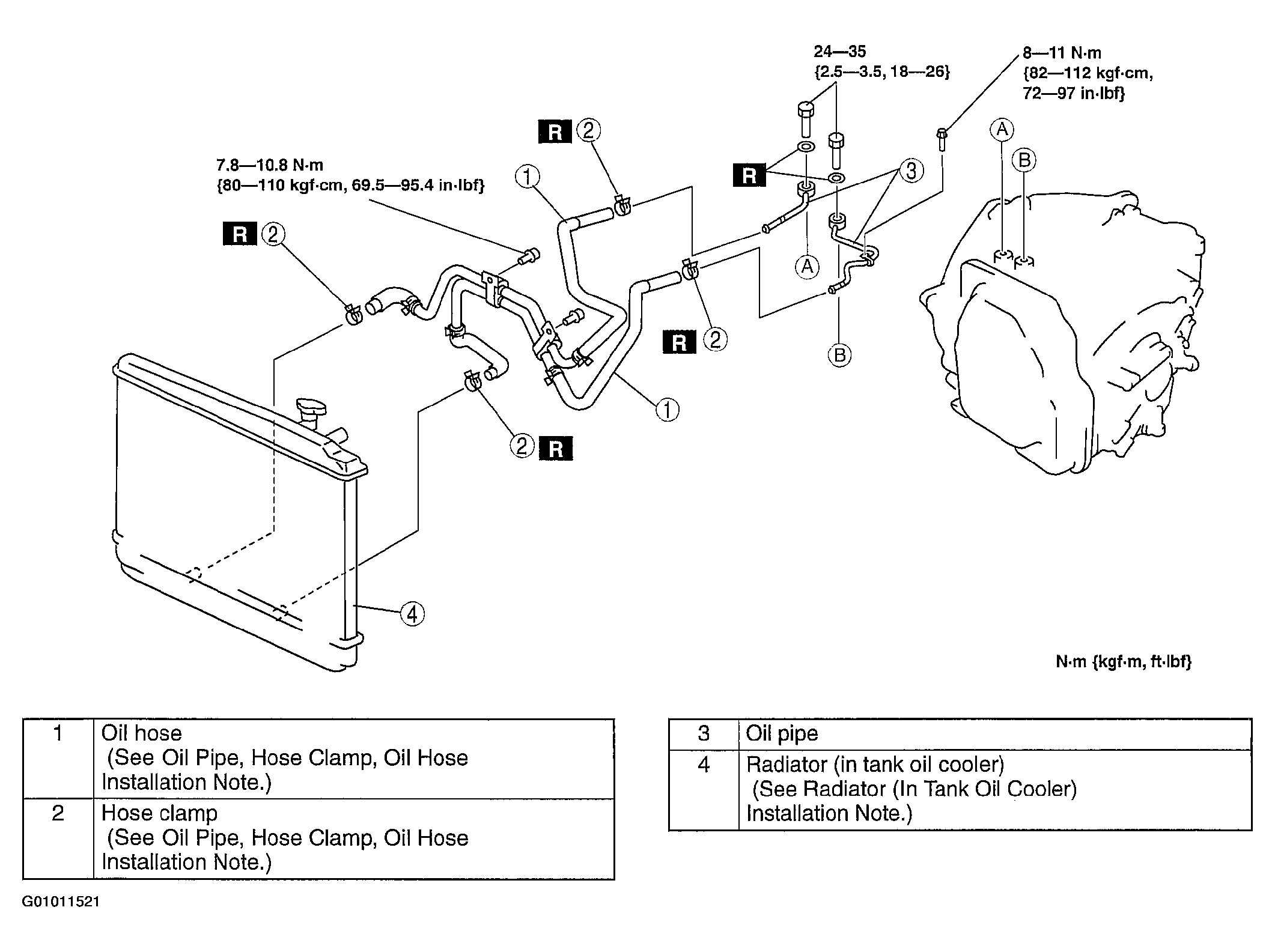

Fig 1: Removing/Installing Oil Cooler [JA5A-EL]
G01011521Courtesy of MAZDA MOTORS CORP.
