Clutch Pedal Height
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

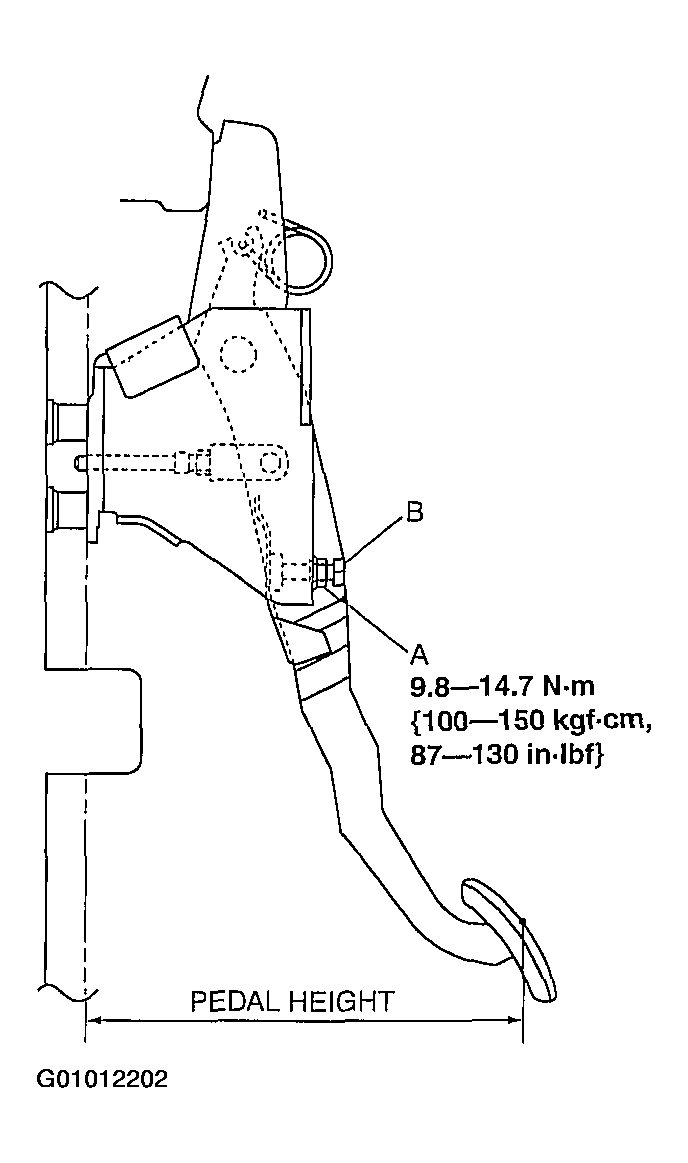

Measure the distance from the upper surface of the pedal pad.
- If not as specified, adjust the pedal height by turning adjustment bolt B and locknut A.
Pedal height (Reference value)
210-216 mm {8.27-8.50 in}
Courtesy of MAZDA MOTORS CORP.
