Clutch Master Cylinder Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery and battery tray.

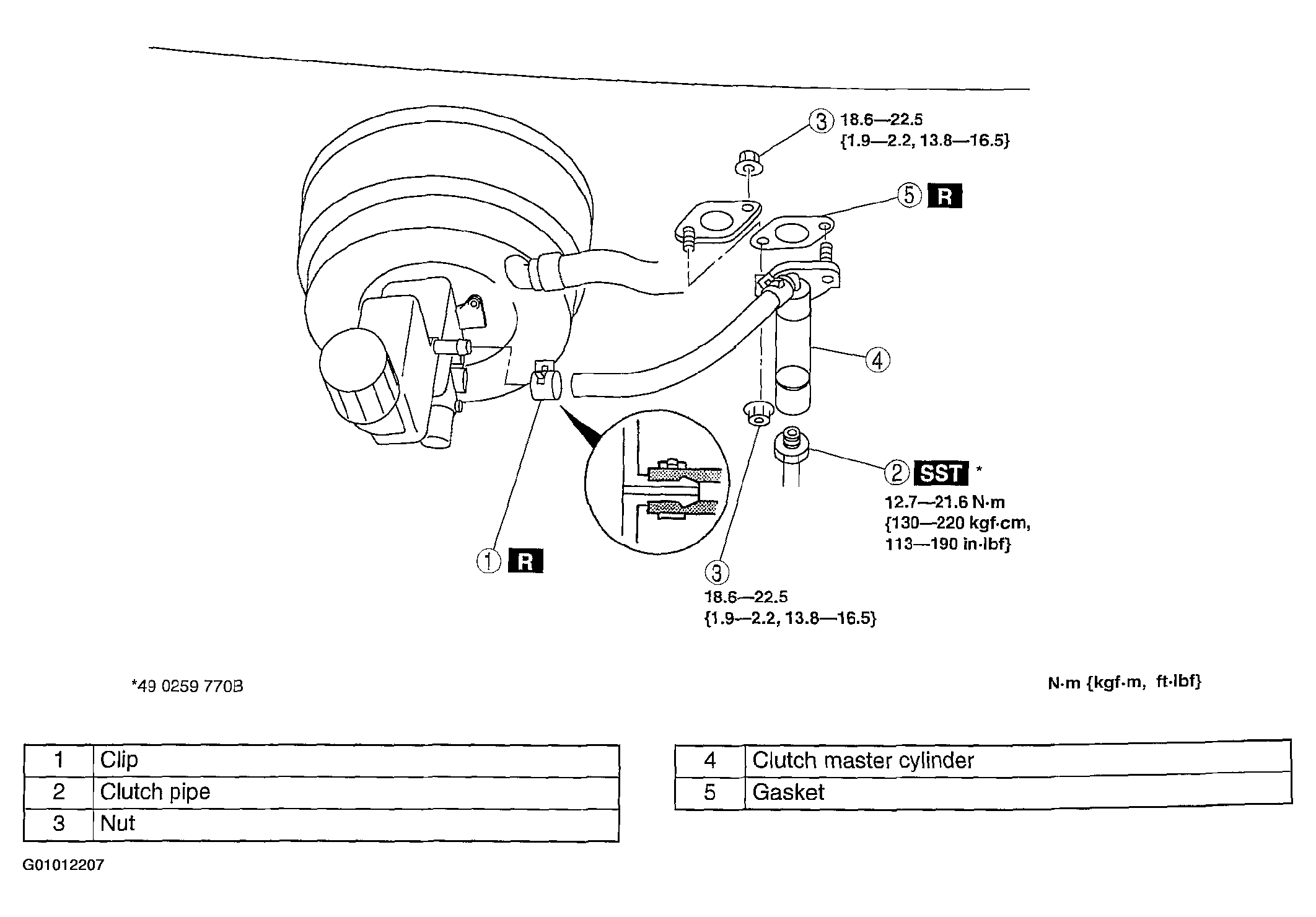

- Remove in the order indicated in Fig 1.
- Plug the clutch pipe after removing it to avoid leakage.
- Install in the reverse order of removal.
