Symptom Troubleshooting Item Table

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Use the Fig 1-Fig 3 to verify the symptoms of the trouble in order to diagnose the appropriate area.

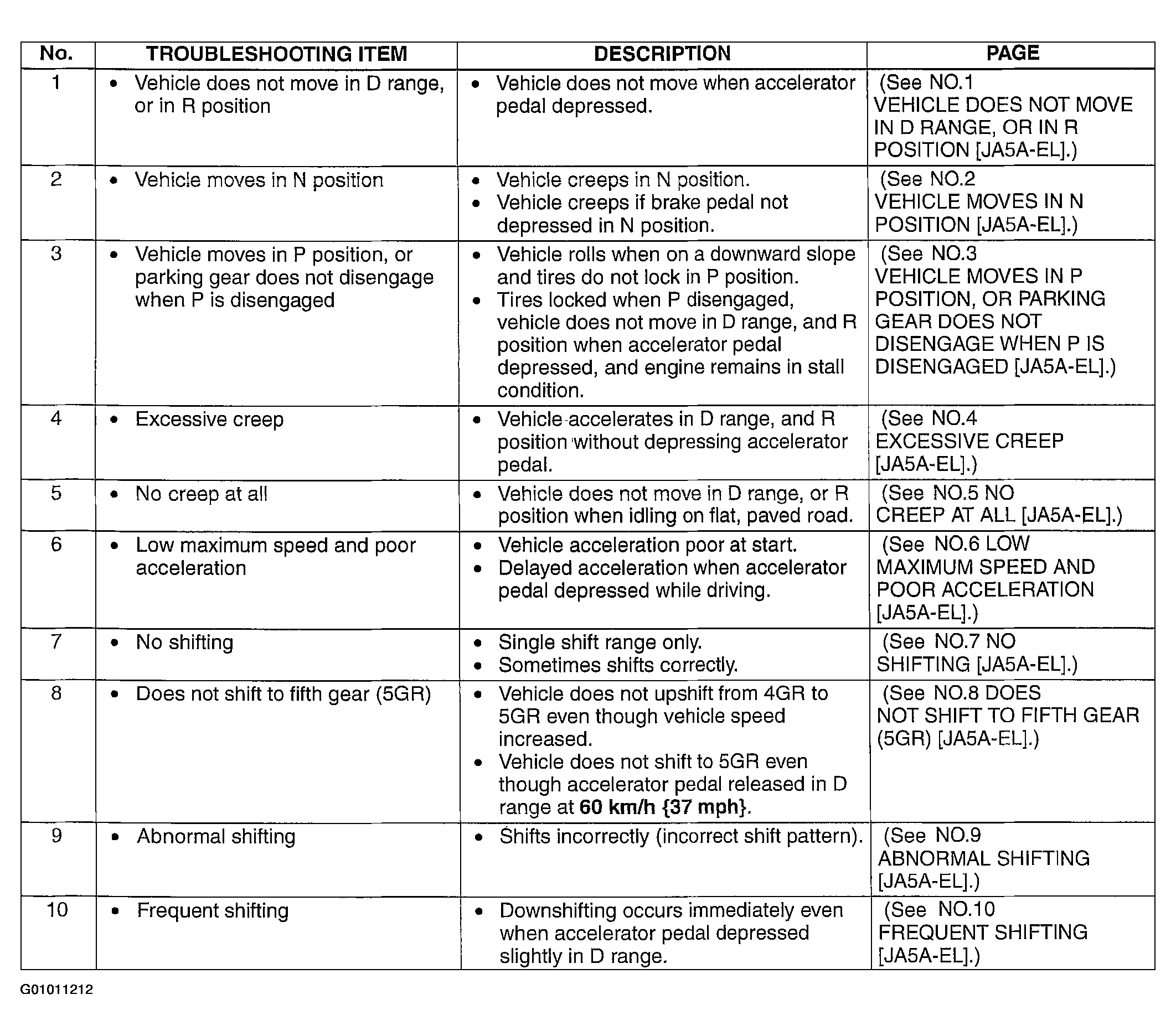

Fig 1: Symptom Troubleshooting Item Table (Steps 1 - 10)

Courtesy of MAZDA MOTORS CORP.

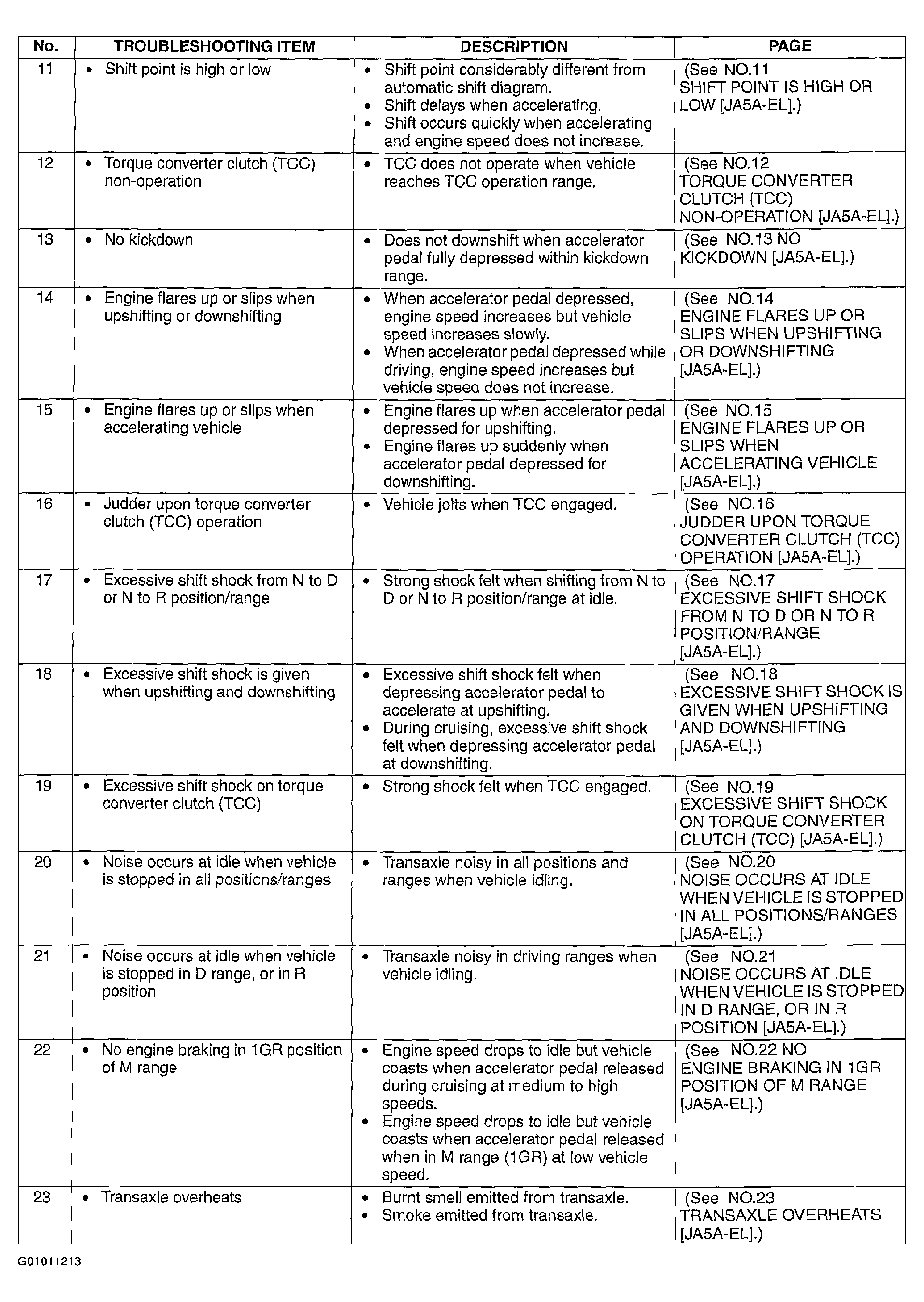

Fig 2: Symptom Troubleshooting Item Table (Steps 11 - 23)

Courtesy of MAZDA MOTORS CORP.

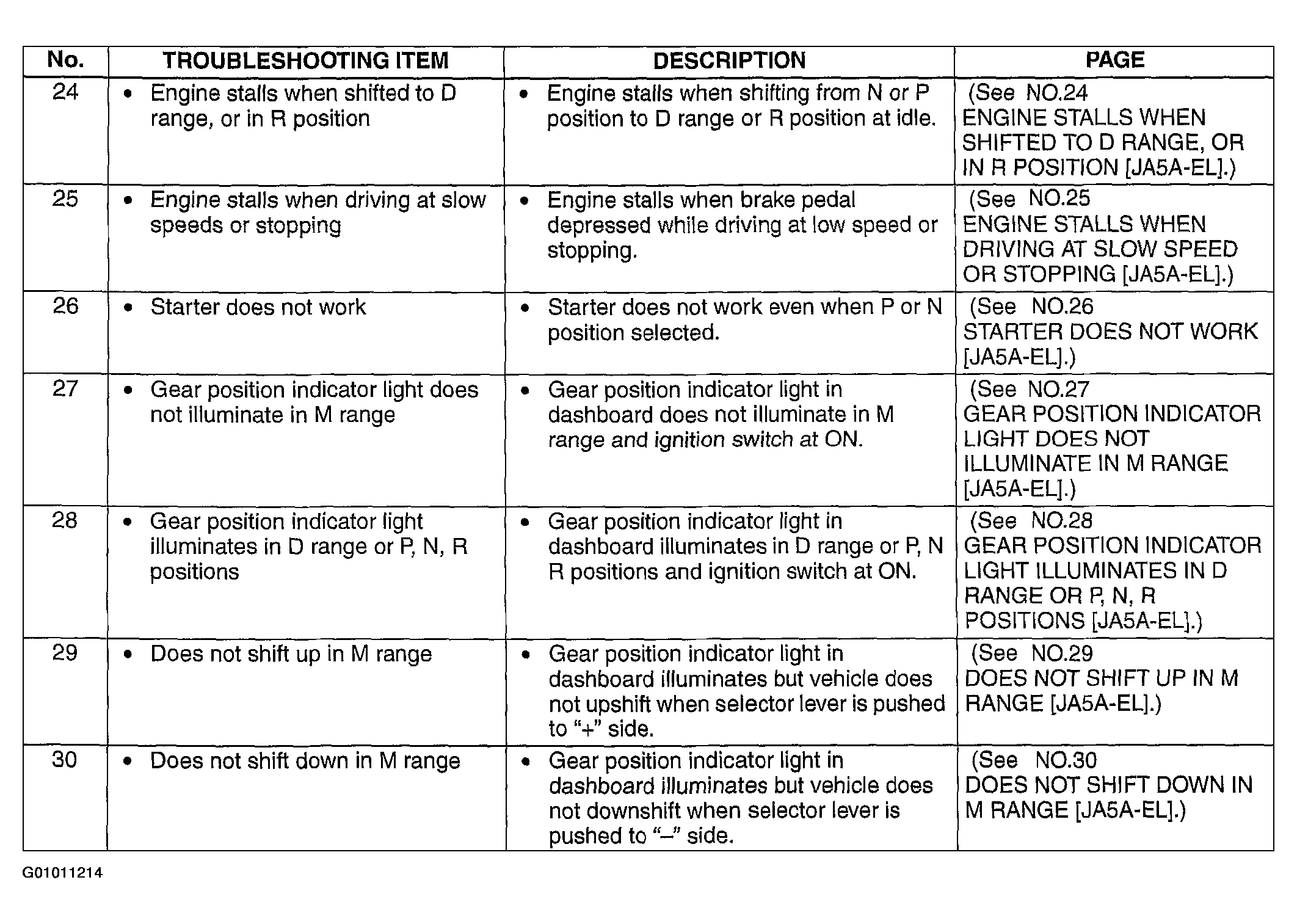

Fig 3: Symptom Troubleshooting Item Table (Steps 24 - 30)

Courtesy of MAZDA MOTORS CORP.
