Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

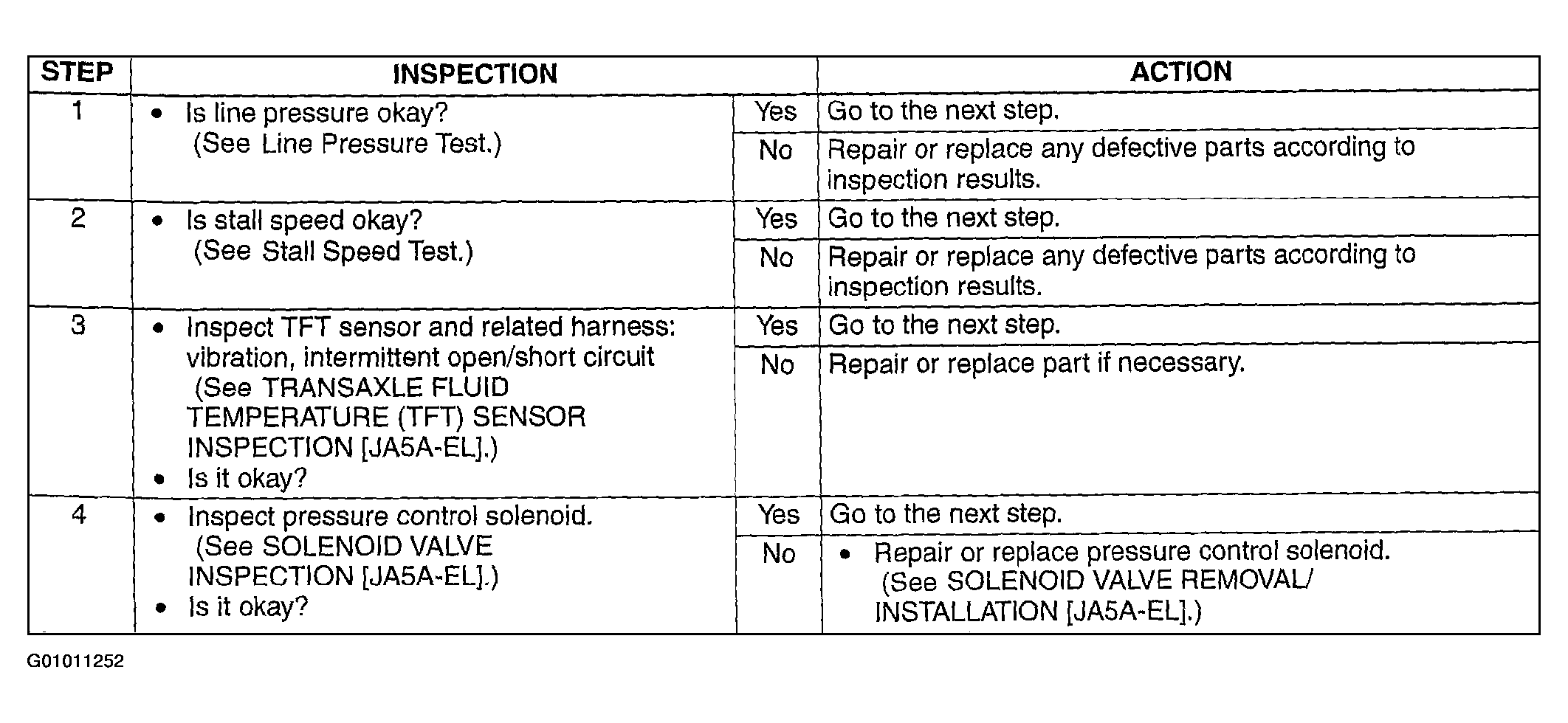

Fig 1: Diagnostic Procedure - Transaxle Overheats (1 Of 2)
G01011252Courtesy of MAZDA MOTORS CORP.

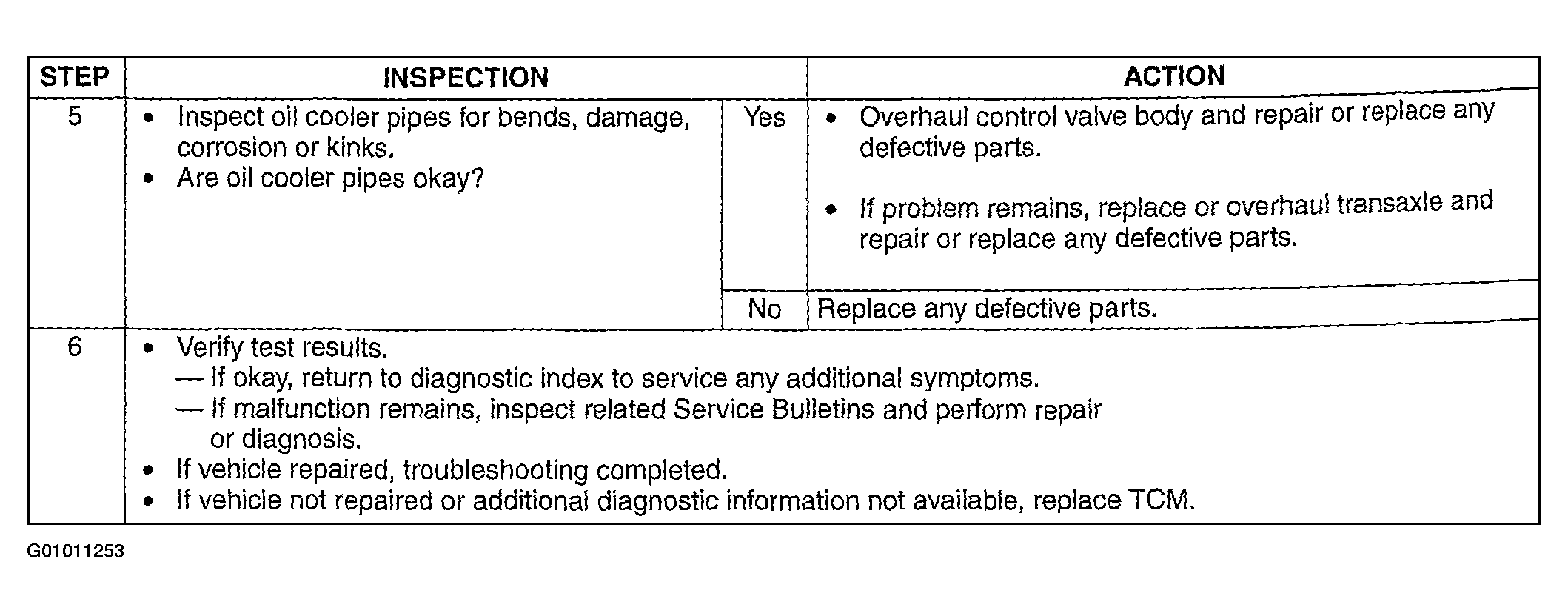

Fig 2: Diagnostic Procedure - Transaxle Overheats (2 Of 2)
G01011253Courtesy of MAZDA MOTORS CORP.
