Rear Washer Nozzle Removal/Installation [5HB, WGN]
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the liftgate upper trim.
- Remove the high-mount brake light (In-vehicle-type). (WGN)
- Remove the rear washer hose from the rear washer nozzle.

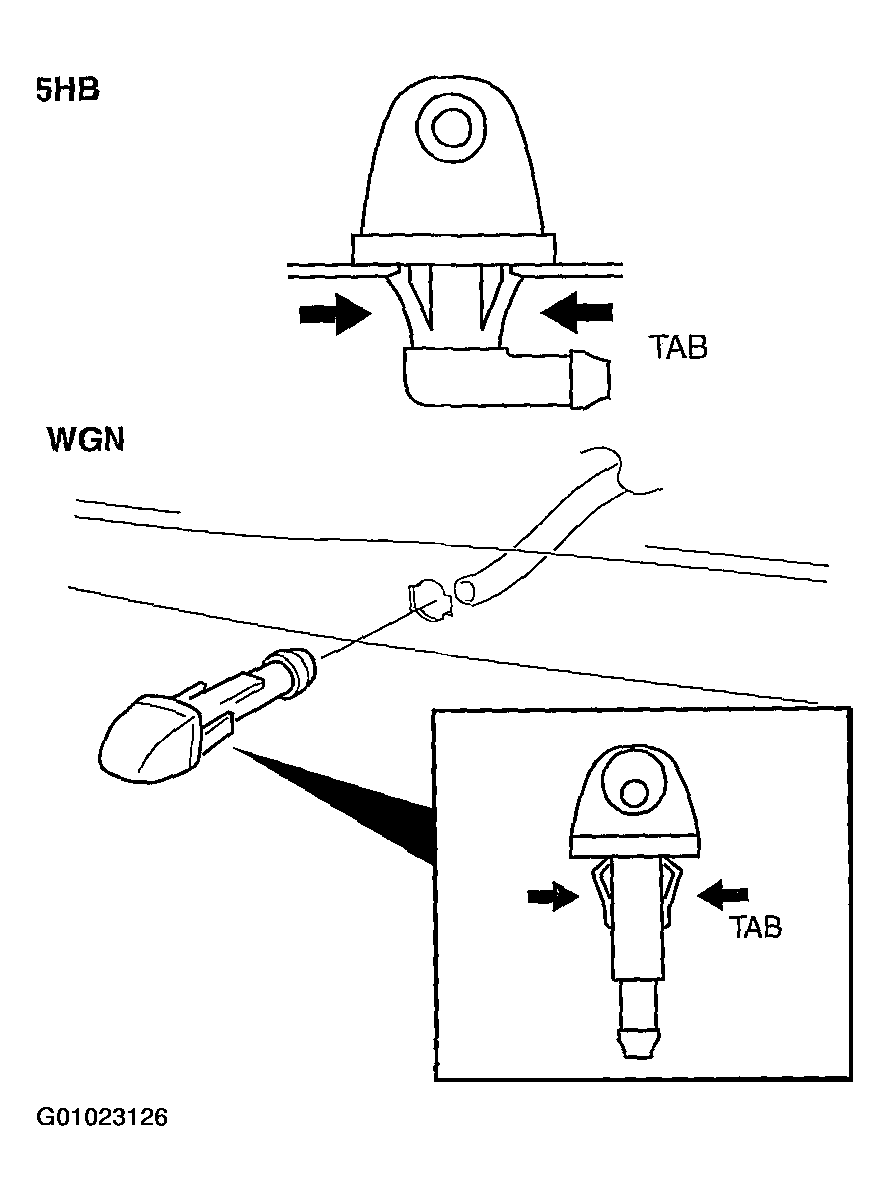

- Squeeze the tabs of the rear washer nozzle.
- Pull the rear washer nozzle out to remove it.
- Install in the reverse order of removal.
- Adjust the rear washer nozzle. (See REAR WASHER NOZZLE ADJUSTMENT [5HB, WGN] )
