Oil Pump Sprocket Removal/Installation Note (L3)

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the SST to the oil pump sprocket to stop the oil pump from rotating.

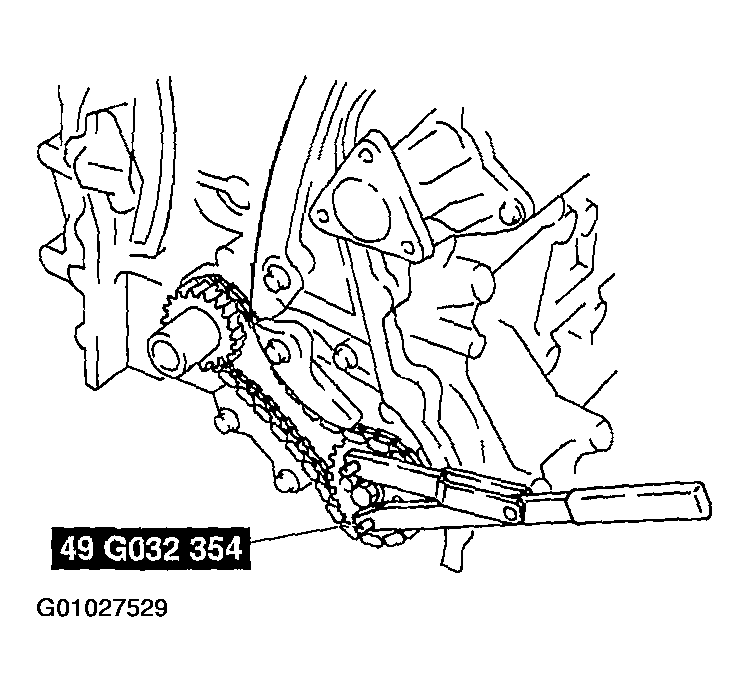

Fig 1: Installing SST To Oil Pump Sprocket (L3)
Courtesy of MAZDA MOTORS CORP.
