Water Pump Removal/Installation: AJ

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [AJ] .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  5. Remove the water pump drive belt pulley. (See WATER PUMP DRIVE BELT PULLEY REMOVAL NOTE .)
  6. Remove in the order indicated. See Fig 1.
  7. Install in the reverse order of removal.
  8. Install the new water pump drive belt pulley. (See WATER PUMP DRIVE BELT PULLEY INSTALLATION NOTE .)
  9. Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Fig 1: Water Pump Removing Sequence (AJ)
G01027578Courtesy of MAZDA MOTORS CORP.

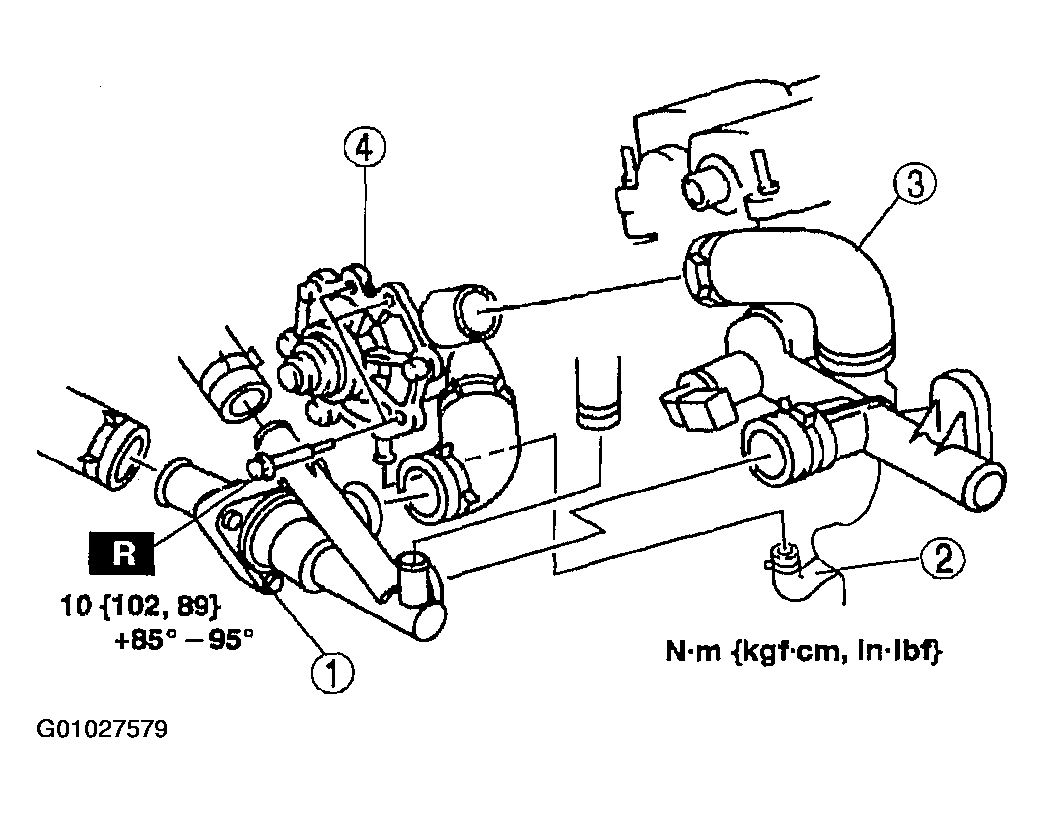

Fig 2: Removing/Installing Water Pump (AJ)
G01027579Courtesy of MAZDA MOTORS CORP.
