Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

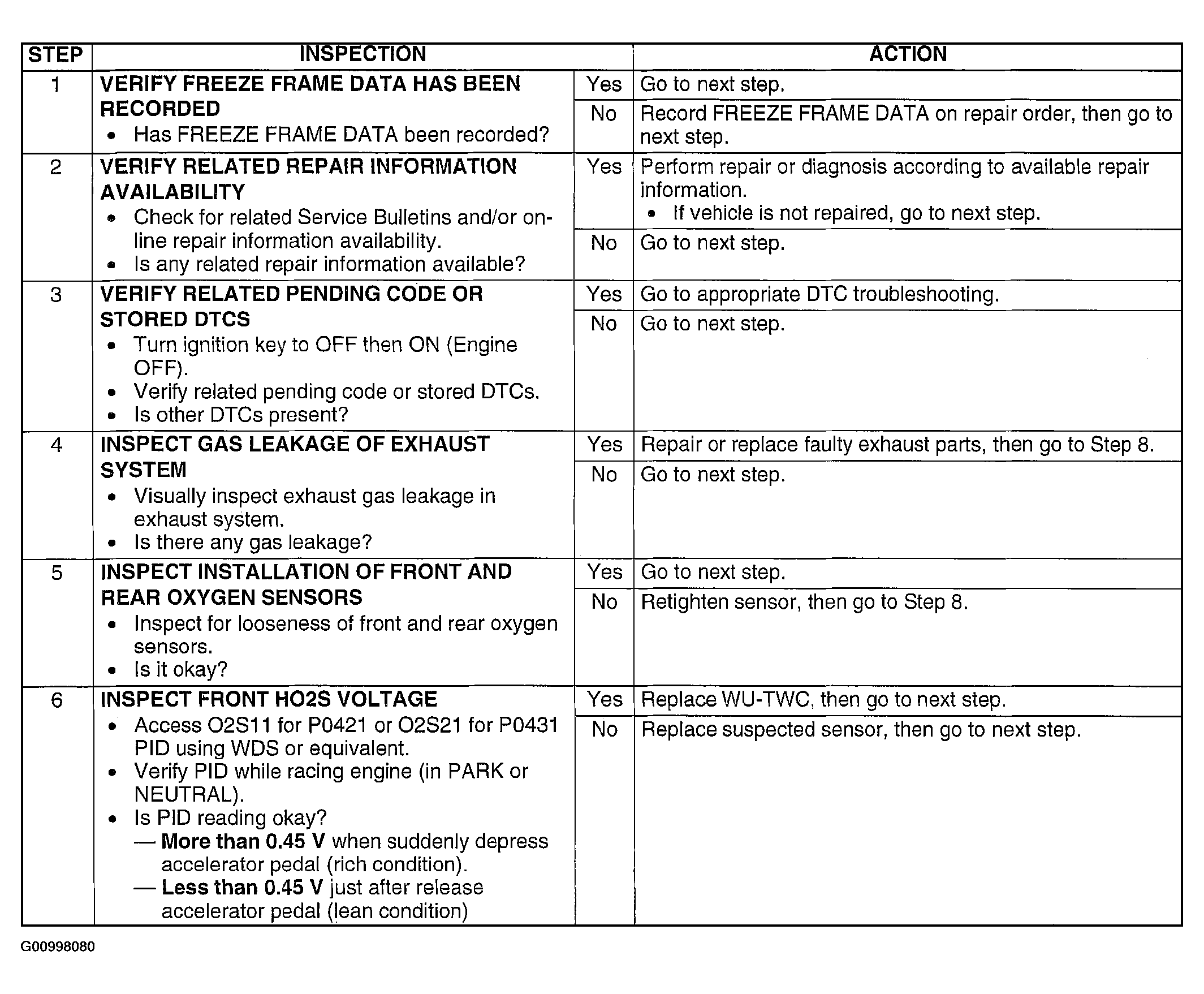

Fig 1: DTC P0421, P0431 Diagnostic Procedure Chart (Step 1-6)
G00998080Courtesy of MAZDA MOTORS CORP.

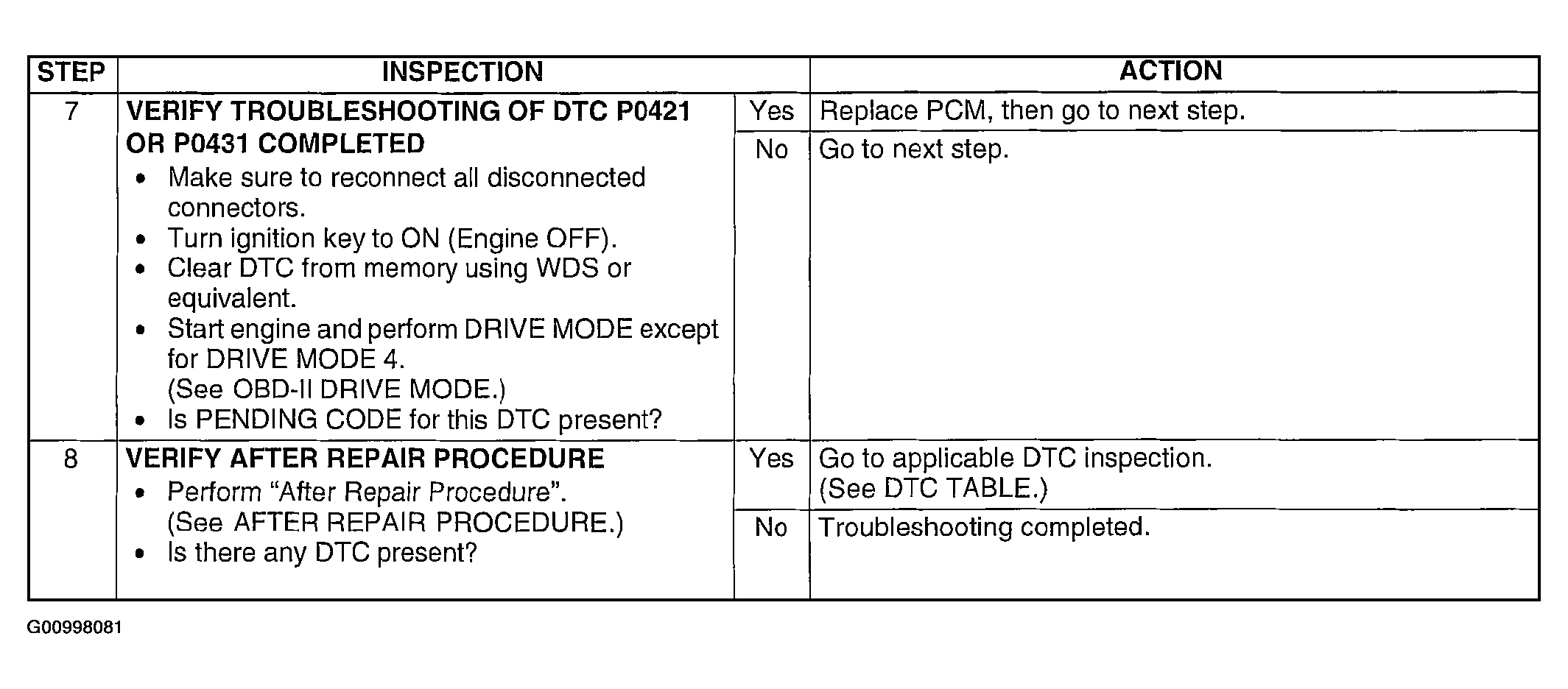

Fig 2: DTC P0421, P0431 Diagnostic Procedure Chart (Step 7-8)
G00998081Courtesy of MAZDA MOTORS CORP.
