DTC P0301, P0302, P0304, P0305, P0306: Cylinder No.1; No.2; No.3; No.4; No. 5; No. 6 Misfire Detected: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

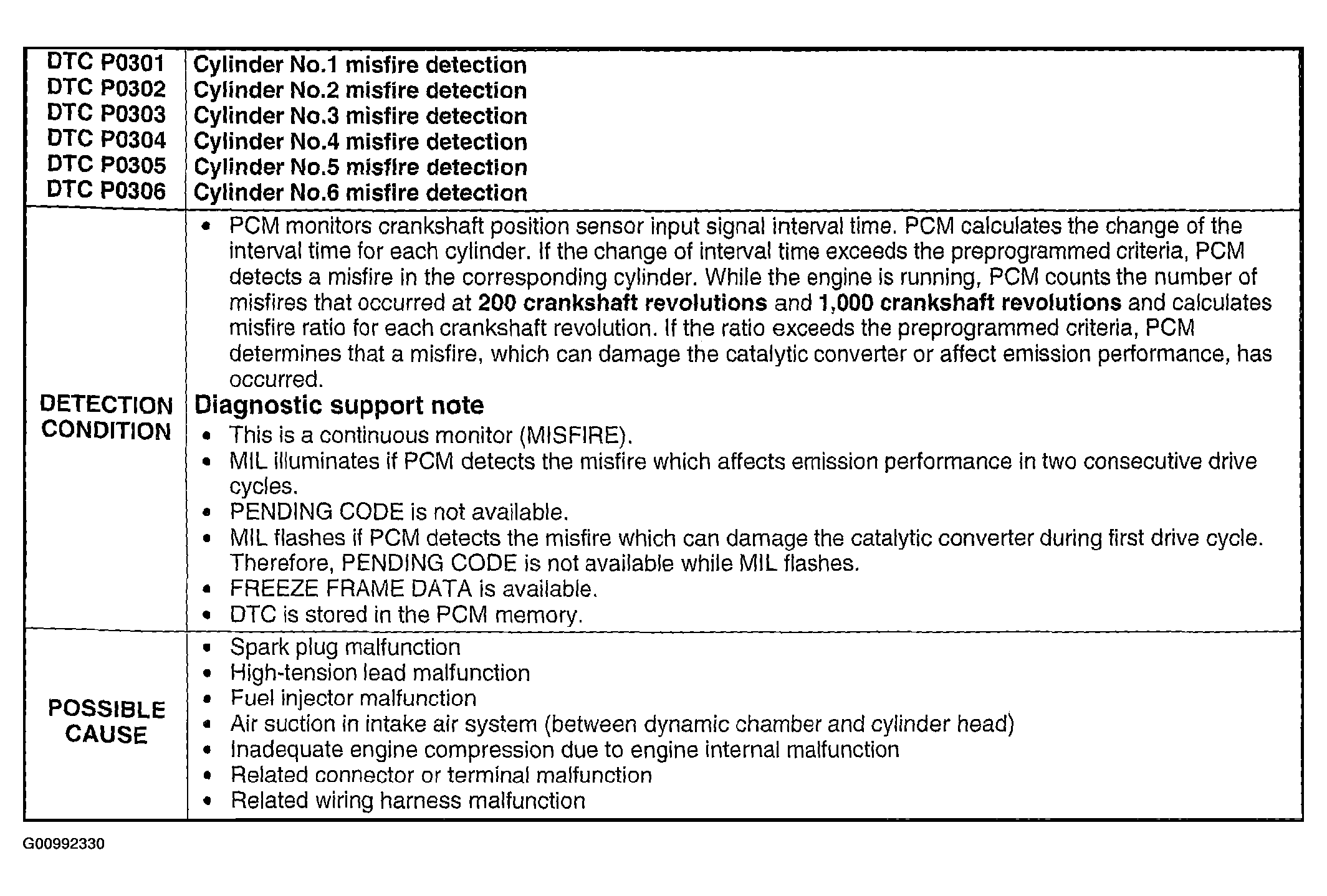

Fig 1: DTC P0301, P0302, P0304, P0305, P0306 Detection Condition & Possible Causes Chart
G00992330Courtesy of MAZDA MOTORS CORP.
