Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

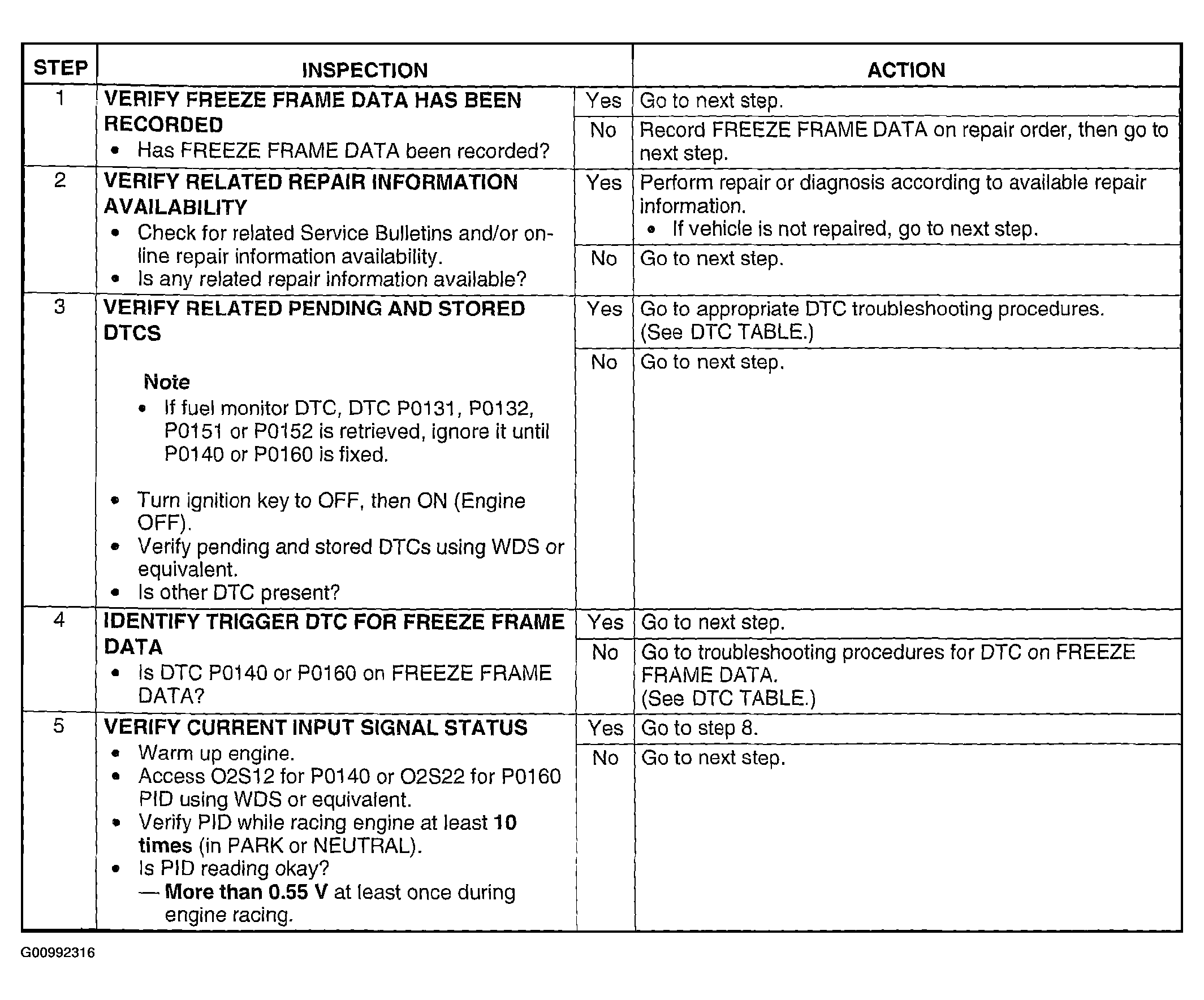

Fig 1: DTC P0140, P0160 Diagnostic Procedure Chart (Step 1-5)
G00992316Courtesy of MAZDA MOTORS CORP.

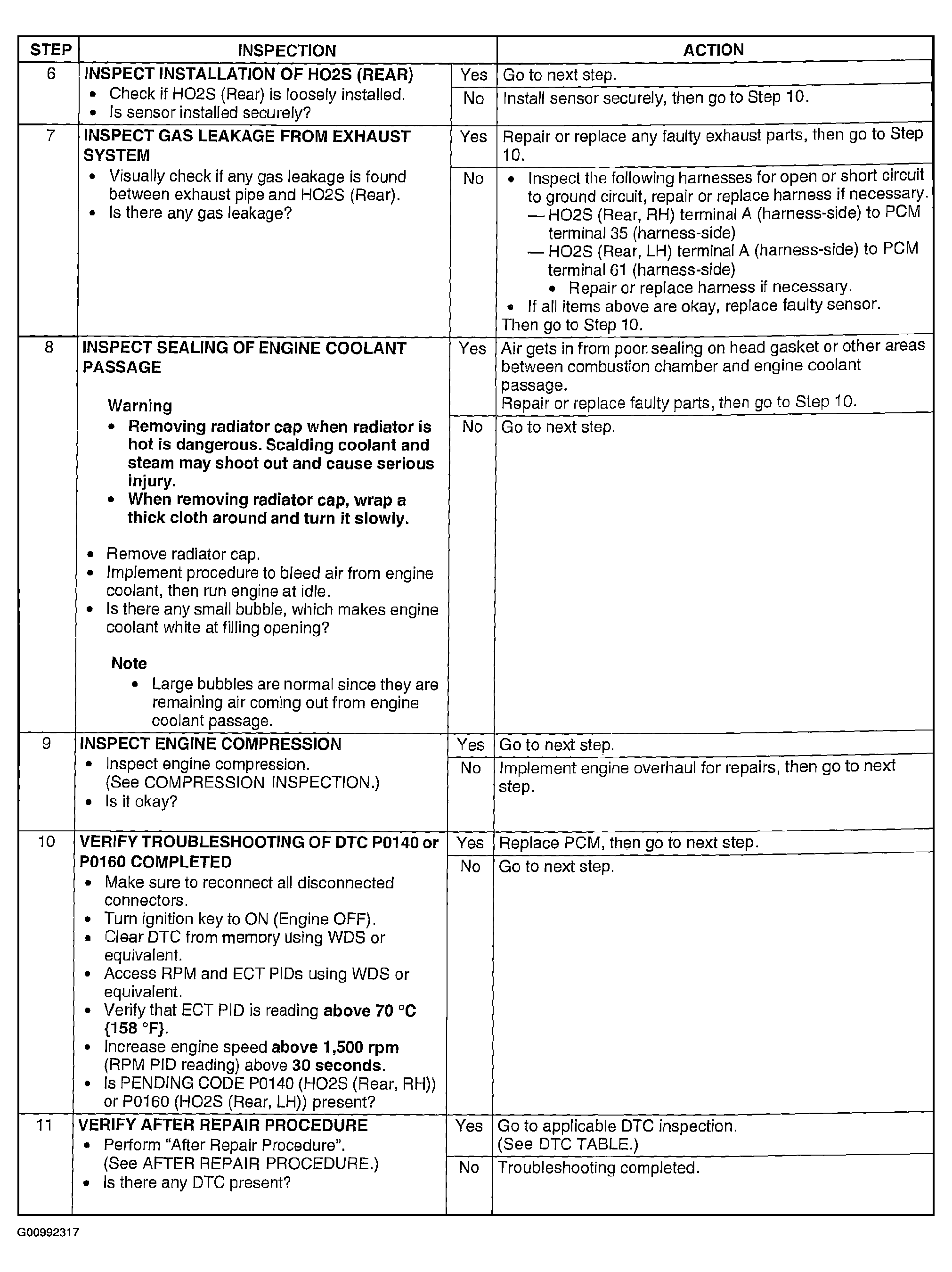

Fig 2: DTC P0140, P0160 Diagnostic Procedure Chart (Step 6-11)
G00992317Courtesy of MAZDA MOTORS CORP.
