Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

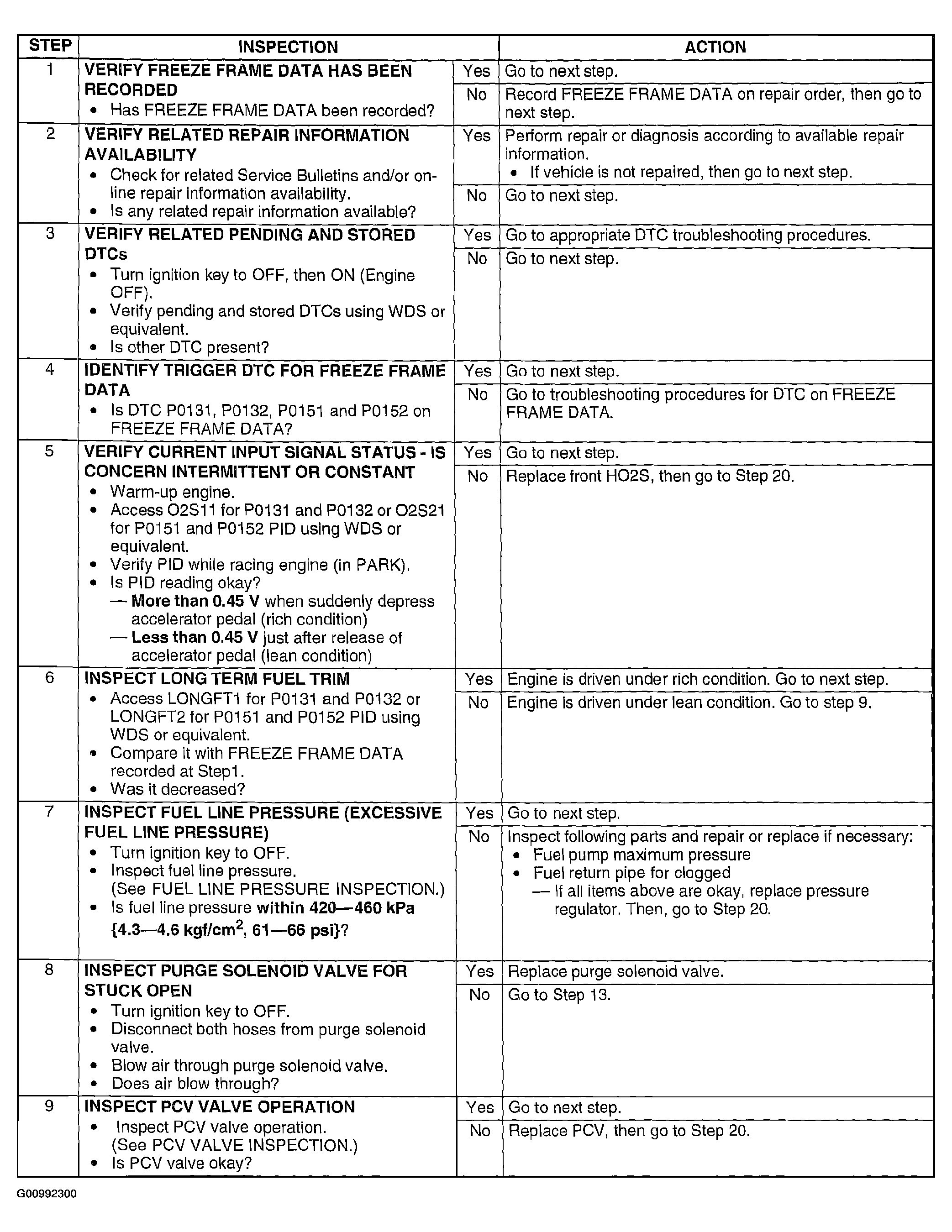

Fig 1: DTC P0131, P0132, P0151, P0152 Diagnostic Procedure Chart (Step 1-9)

Courtesy of MAZDA MOTORS CORP.

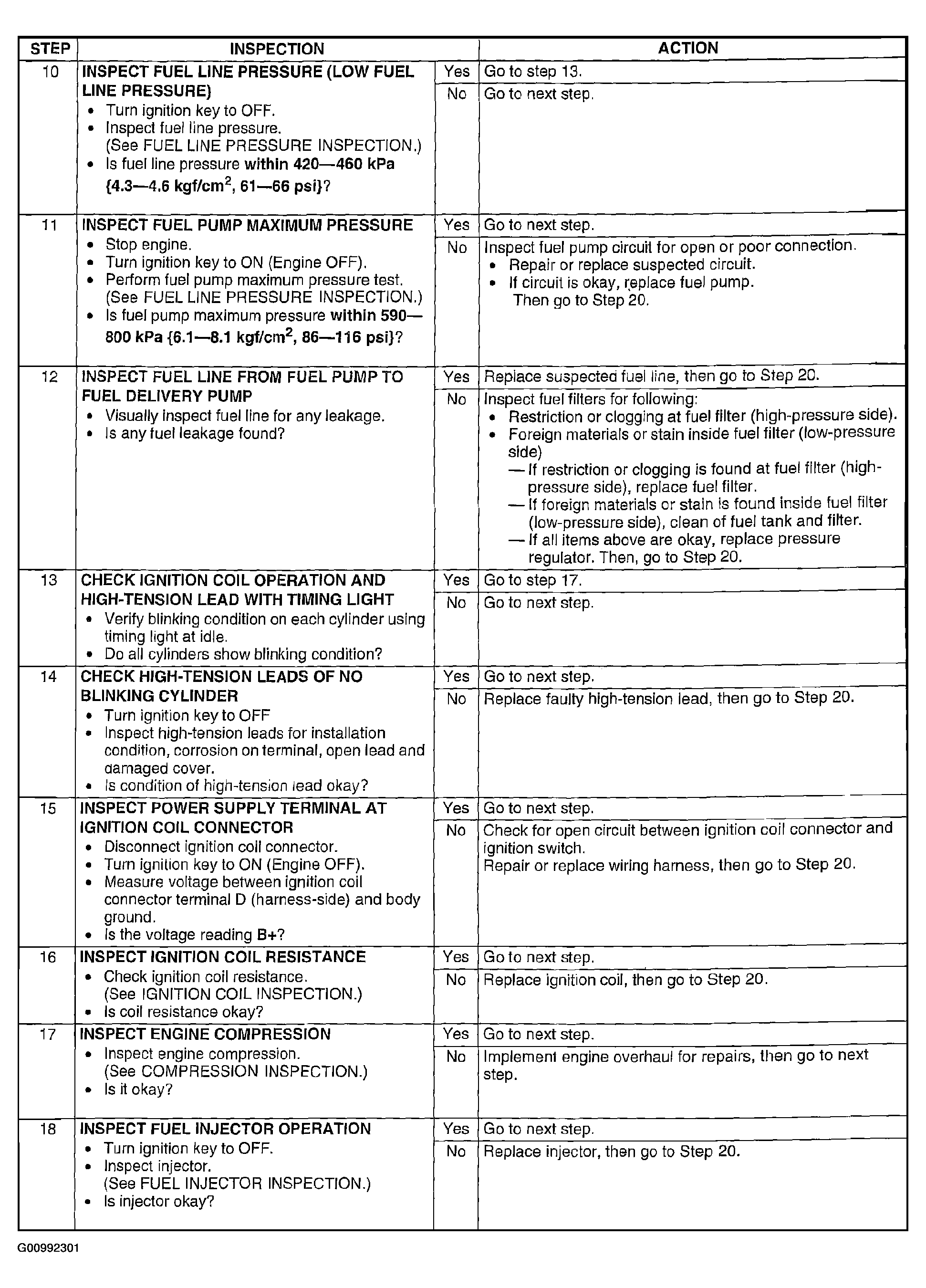

Fig 2: DTC P0131, P0132, P0151, P0152 Diagnostic Procedure Chart (Step 10-18)

Courtesy of MAZDA MOTORS CORP.

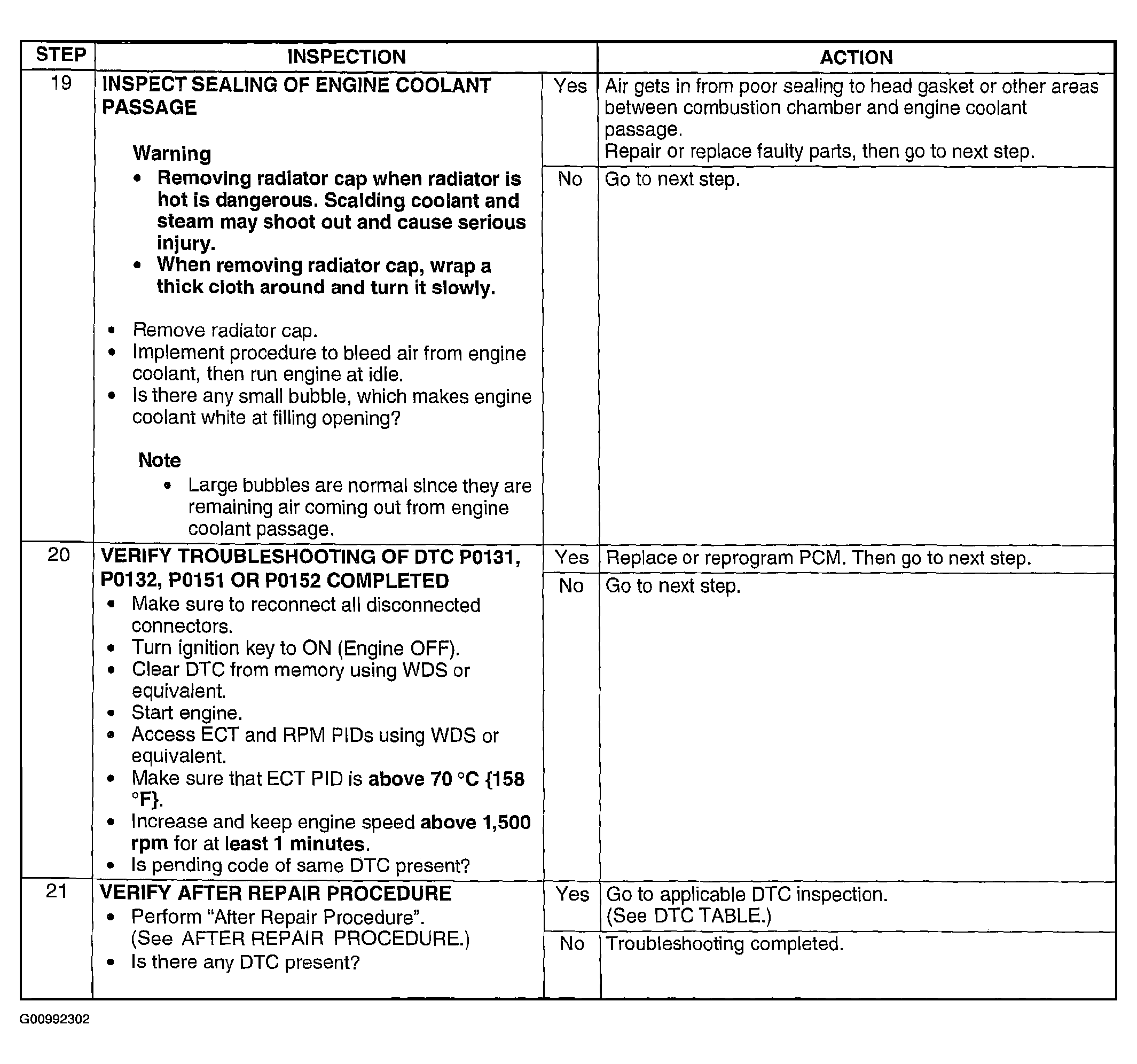

Fig 3: DTC P0131, P0132, P0151, P0152 Diagnostic Procedure Chart (Step 19-21)

Courtesy of MAZDA MOTORS CORP.
