Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: DTC P0126 & P0128 - Diagnostic Procedure (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

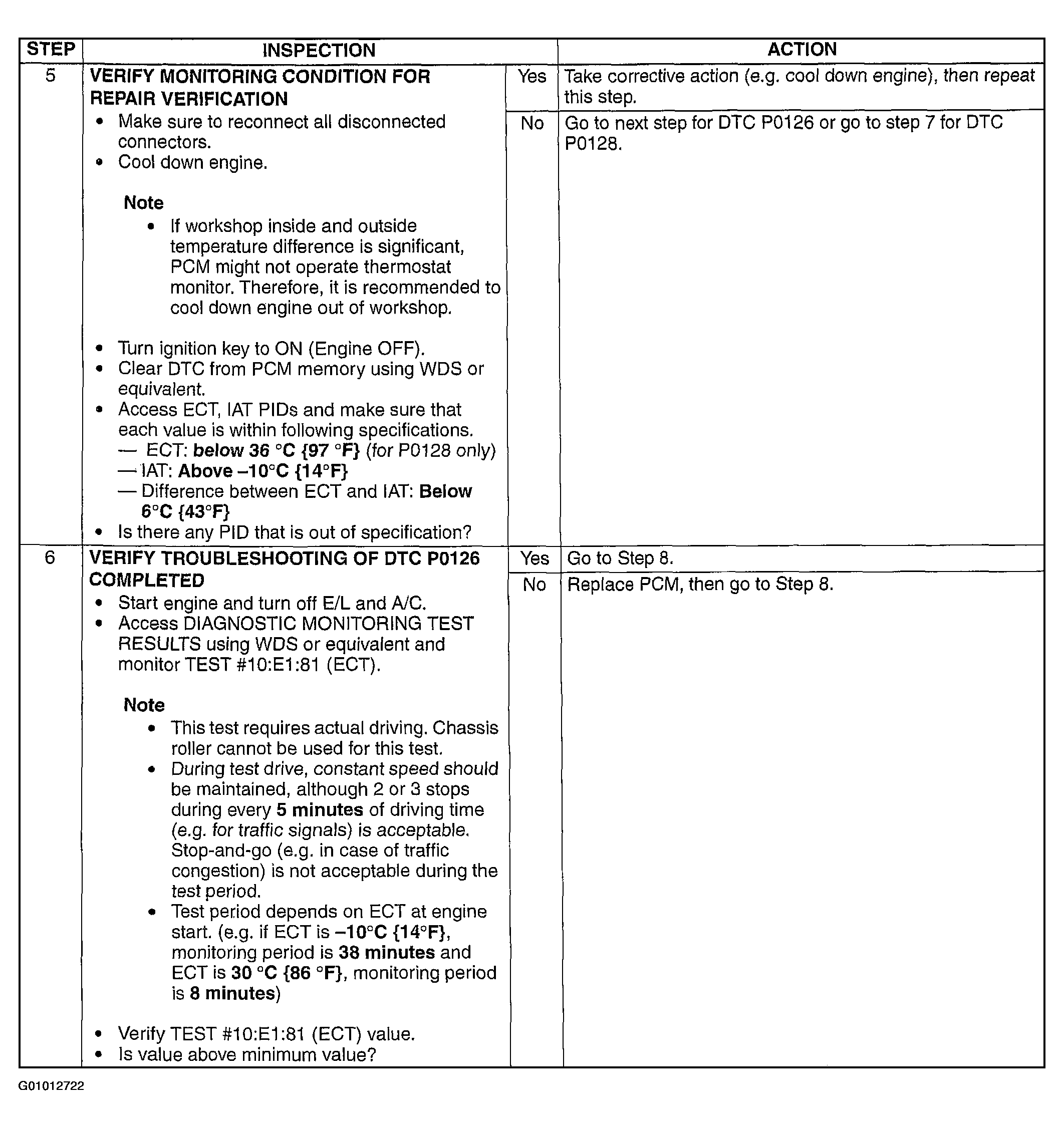

Fig 2: DTC P0126 & P0128 - Diagnostic Procedure (Steps 5 & 6)

Courtesy of MAZDA MOTORS CORP.

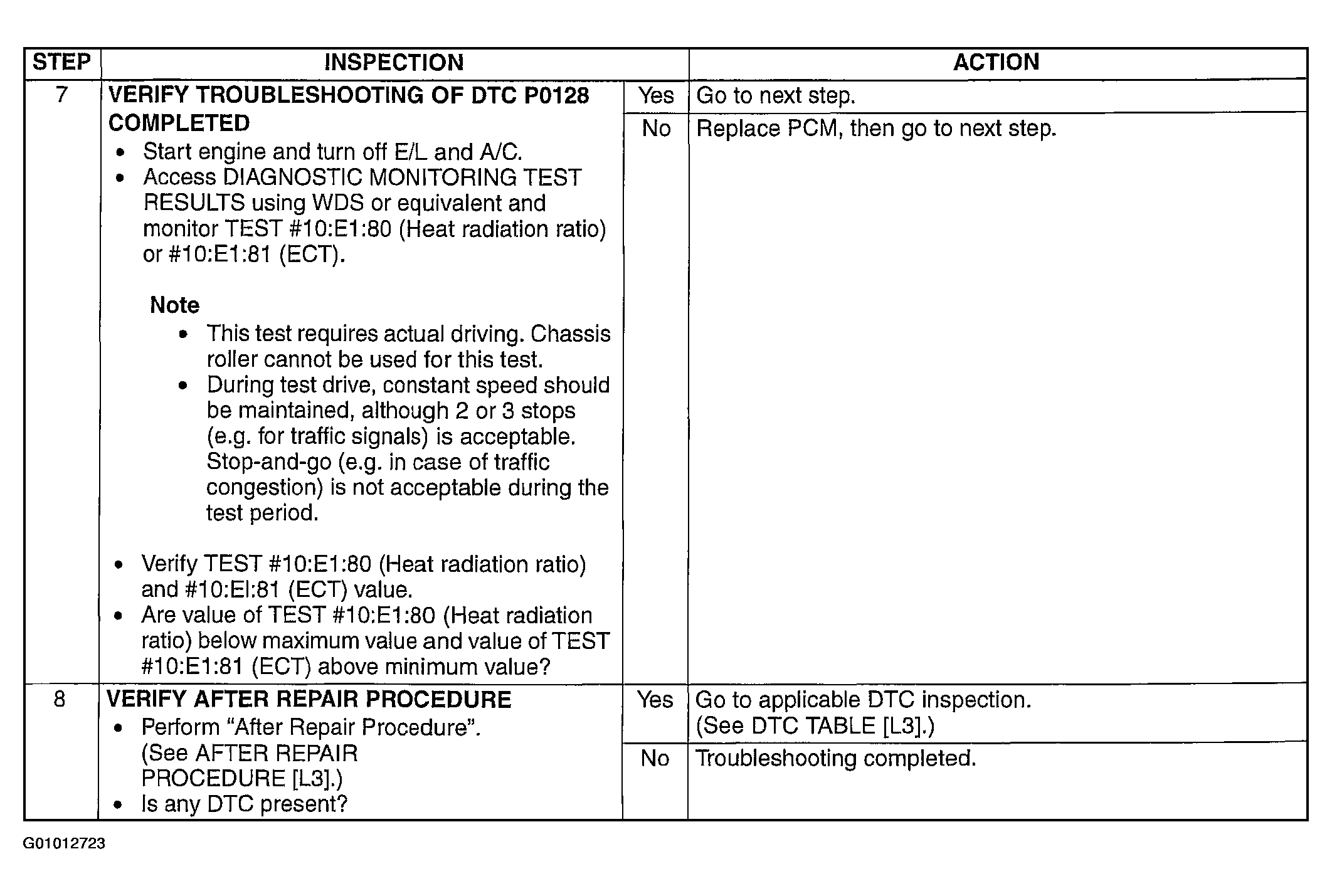

Fig 3: DTC P0126 & P0128 - Diagnostic Procedure (Steps 7 & 8)

Courtesy of MAZDA MOTORS CORP.
