Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

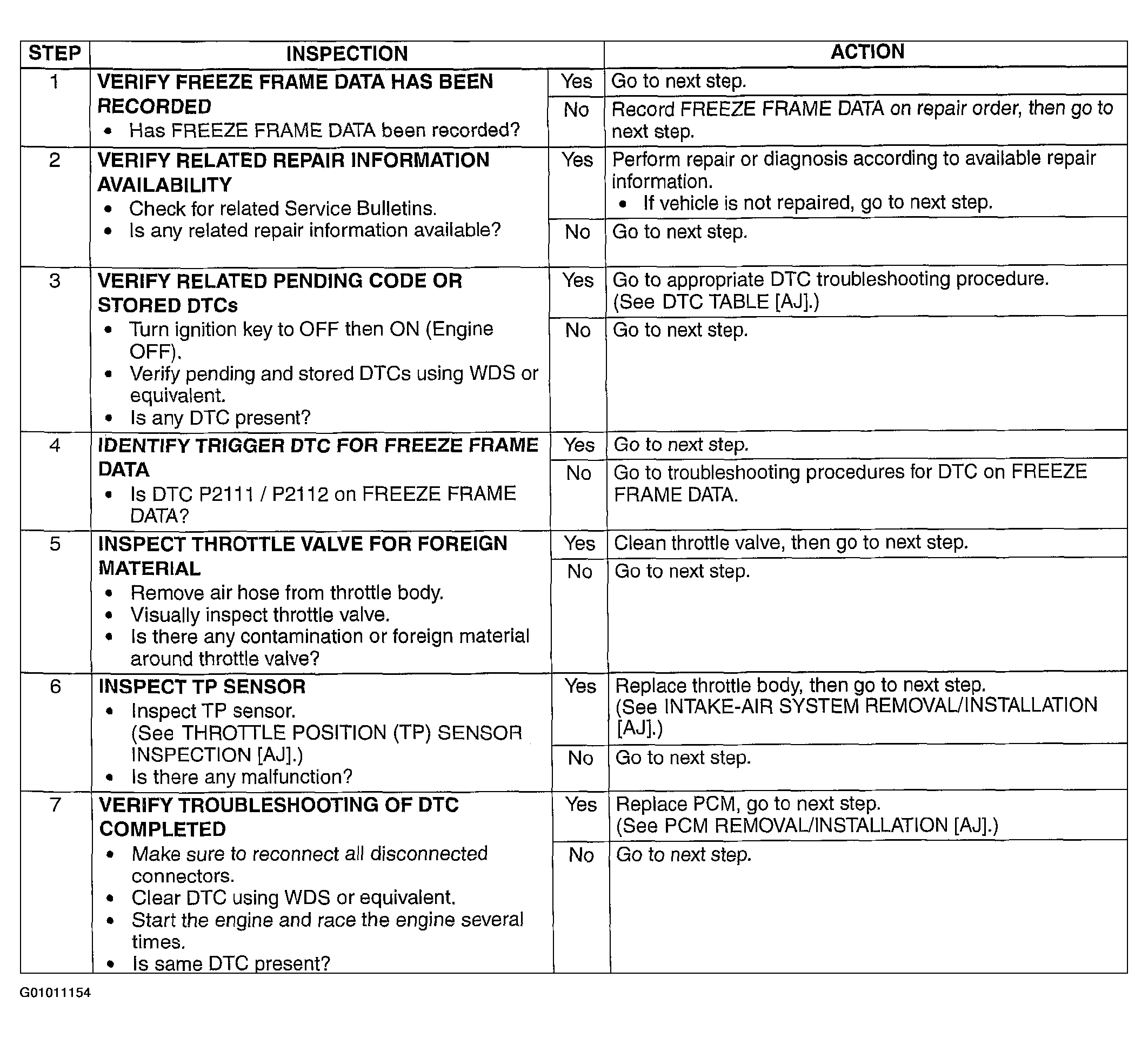

Fig 1: DTC P2111 & P2112: Diagnostic Procedure Chart (Steps 1-7)
G01011154Courtesy of MAZDA MOTORS CORP.

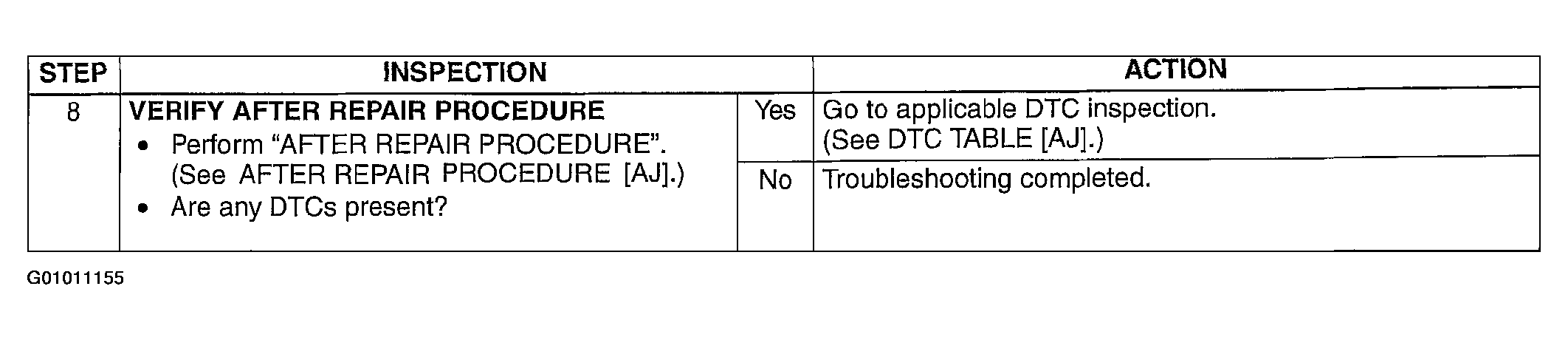

Fig 2: DTC P2111 & P2112: Diagnostic Procedure Chart (Step 8)
G01011155Courtesy of MAZDA MOTORS CORP.
