Cylinder Head Cover (LH) Removal Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head cover bolts in the order shown in Fig 1.

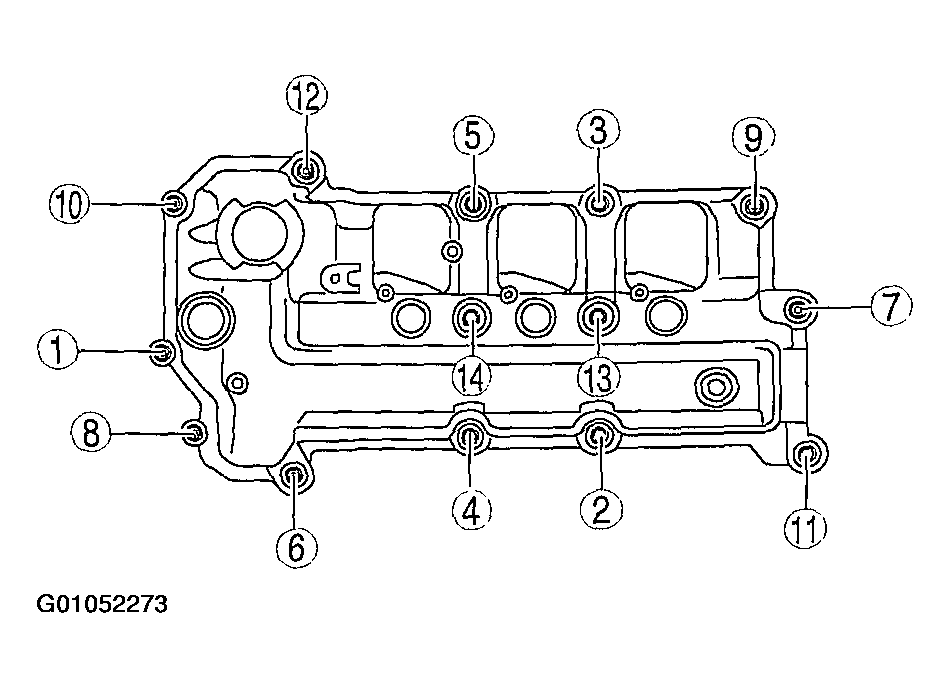

Fig 1: Cylinder Head Cover Bolts (LH) Removal Sequence
G01052273Courtesy of MAZDA MOTORS CORP.
