Vacuum Hose Diagram(S)

WARNING: This page is about a different car, the 2001 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

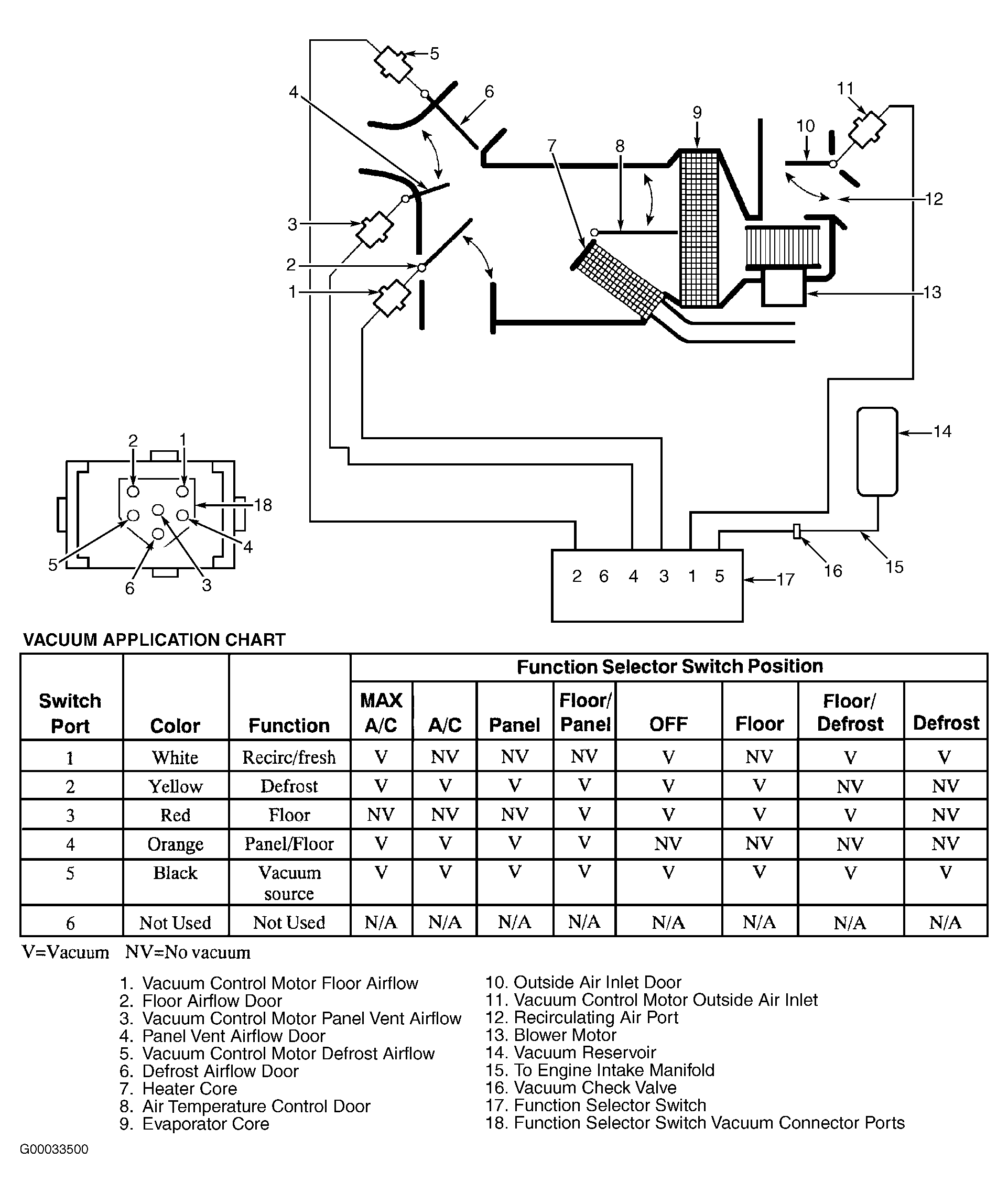

Fig 1: Vacuum Schematic & Mode Selector Chart (2001 Tribute)

Courtesy of MAZDZ MOTORS CORP.
