Section 143 (HVAC System)
>>
Symptom Troubleshooting
>>
No. 6 Windshield Fogged
>>
Diagnostic procedure
Diagnostic procedure
WARNING:
This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

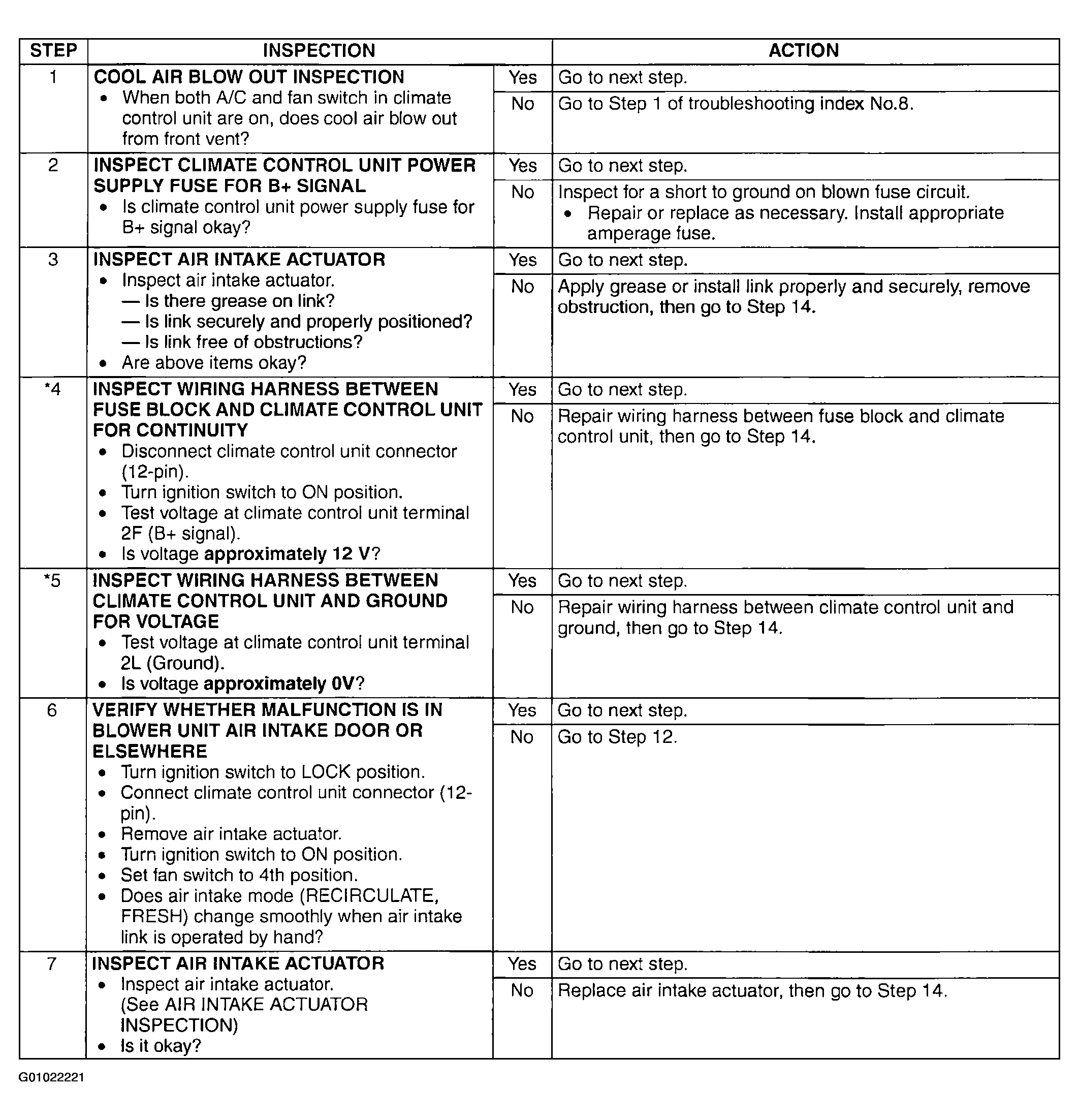

Fig 1: Diagnostic Procedure - Windshield Fogged (Steps 1-7)
Courtesy of MAZDA MOTORS CORP.

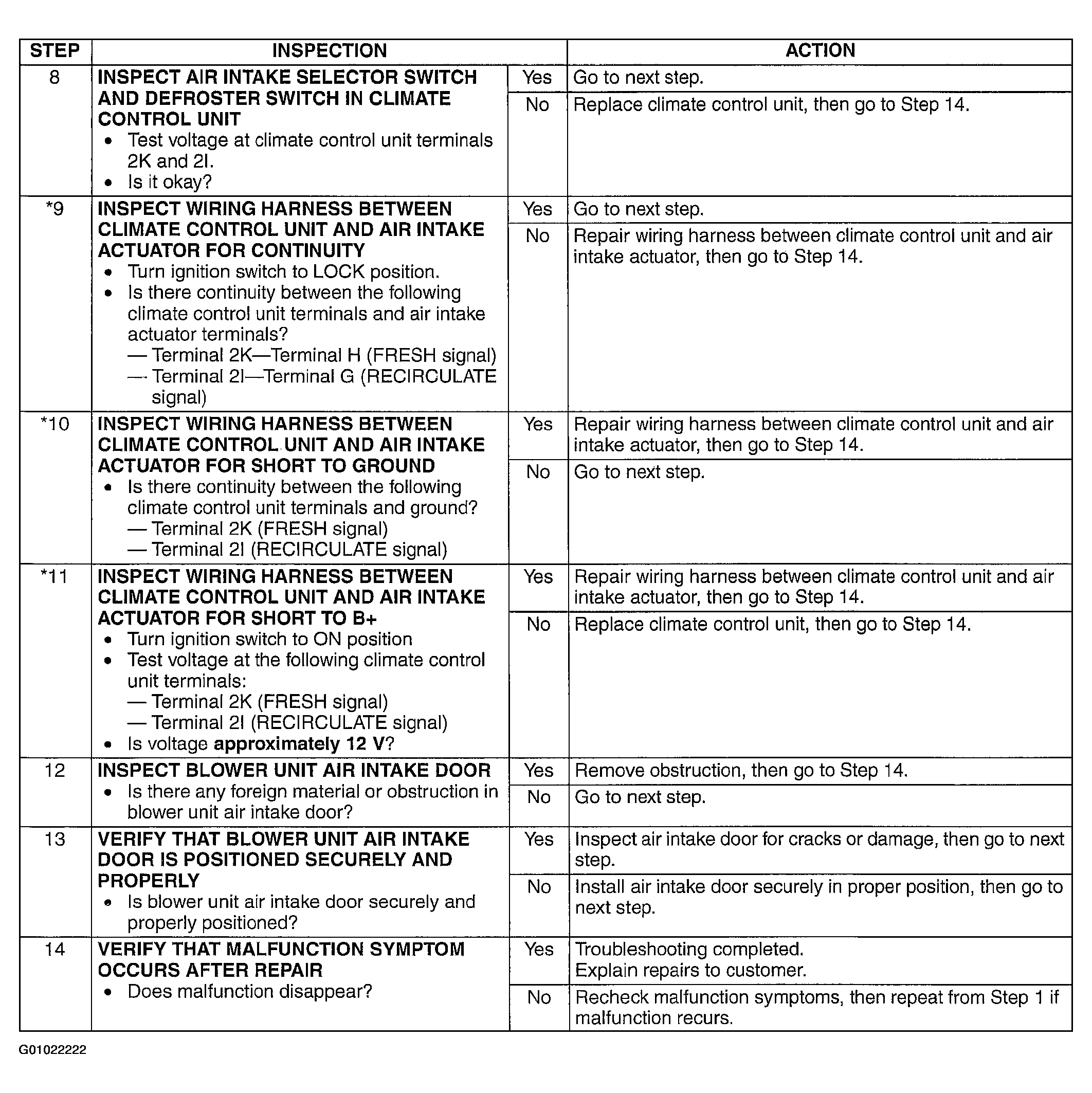

Fig 2: Diagnostic Procedure - Windshield Fogged (Steps 8-14)
Courtesy of MAZDA MOTORS CORP.
