Pinpoint Test 4: DTC C1233, C1234, C1235 & C1236 - Anti-Lock Brake Sensor Output Failure

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Any time an anti-lock brake sensor is removed, thoroughly clean the mounting surfaces. On front anti-lock brake sensors, apply High-Temperature 4x4 Front Axle and Wheel Bearing Grease.

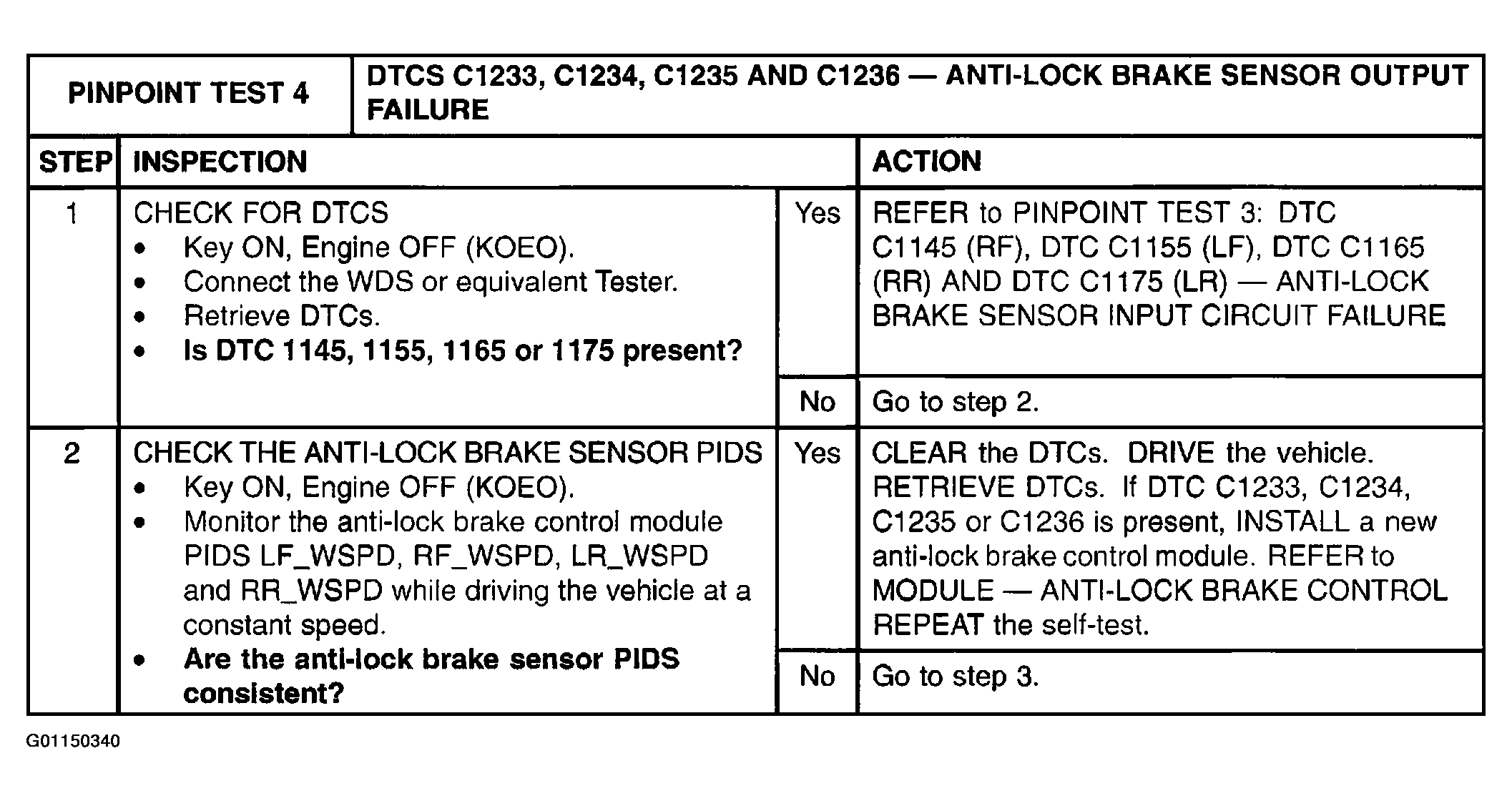

Fig 1: Pinpoint Test 4: DTCS C1233, C1234, C1235 & C1236 - Anti-Lock Brake Sensor Output Failure (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

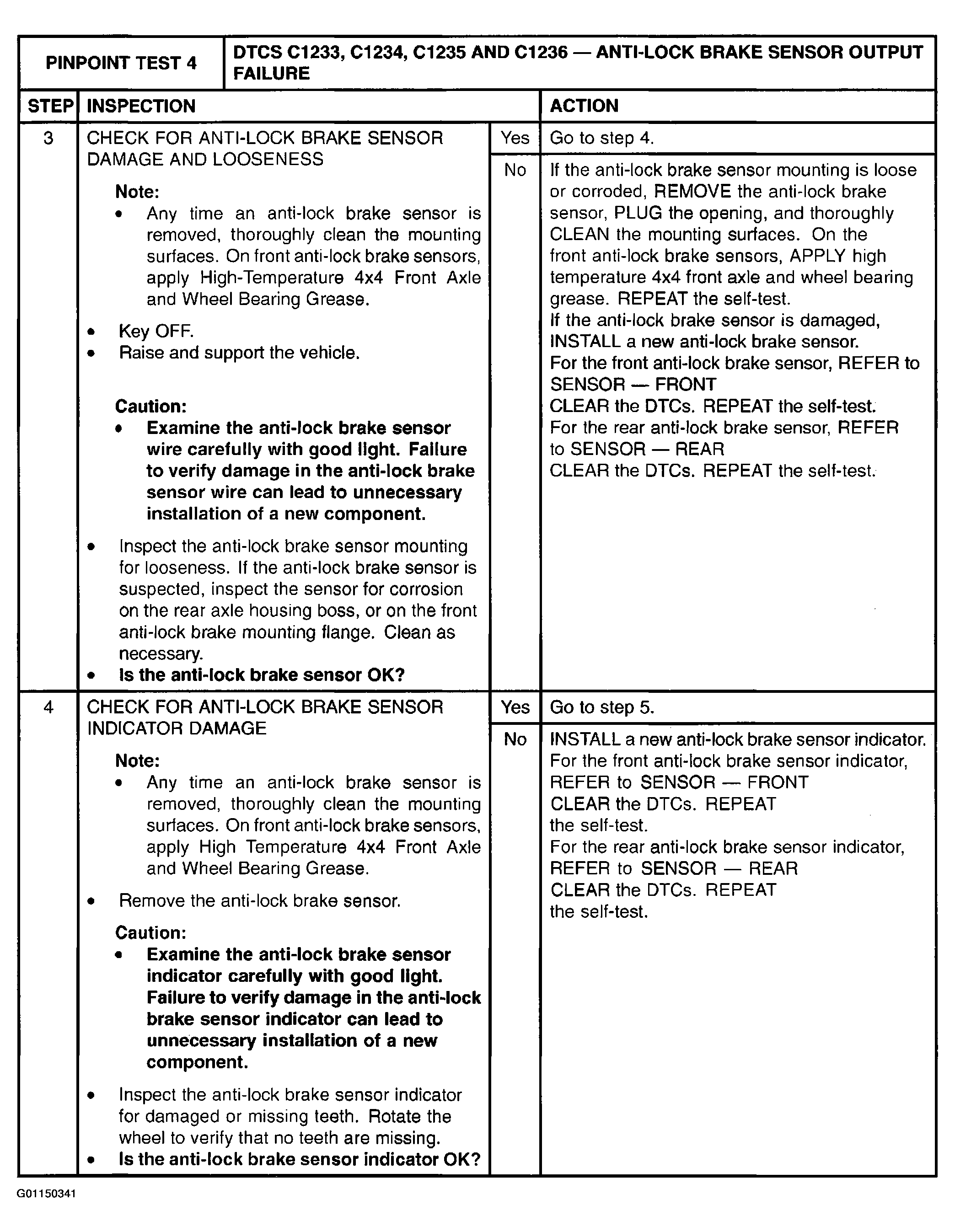

Fig 2: Pinpoint Test 4: DTCS C1233, C1234, C1235 & C1236 - Anti-Lock Brake Sensor Output Failure (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

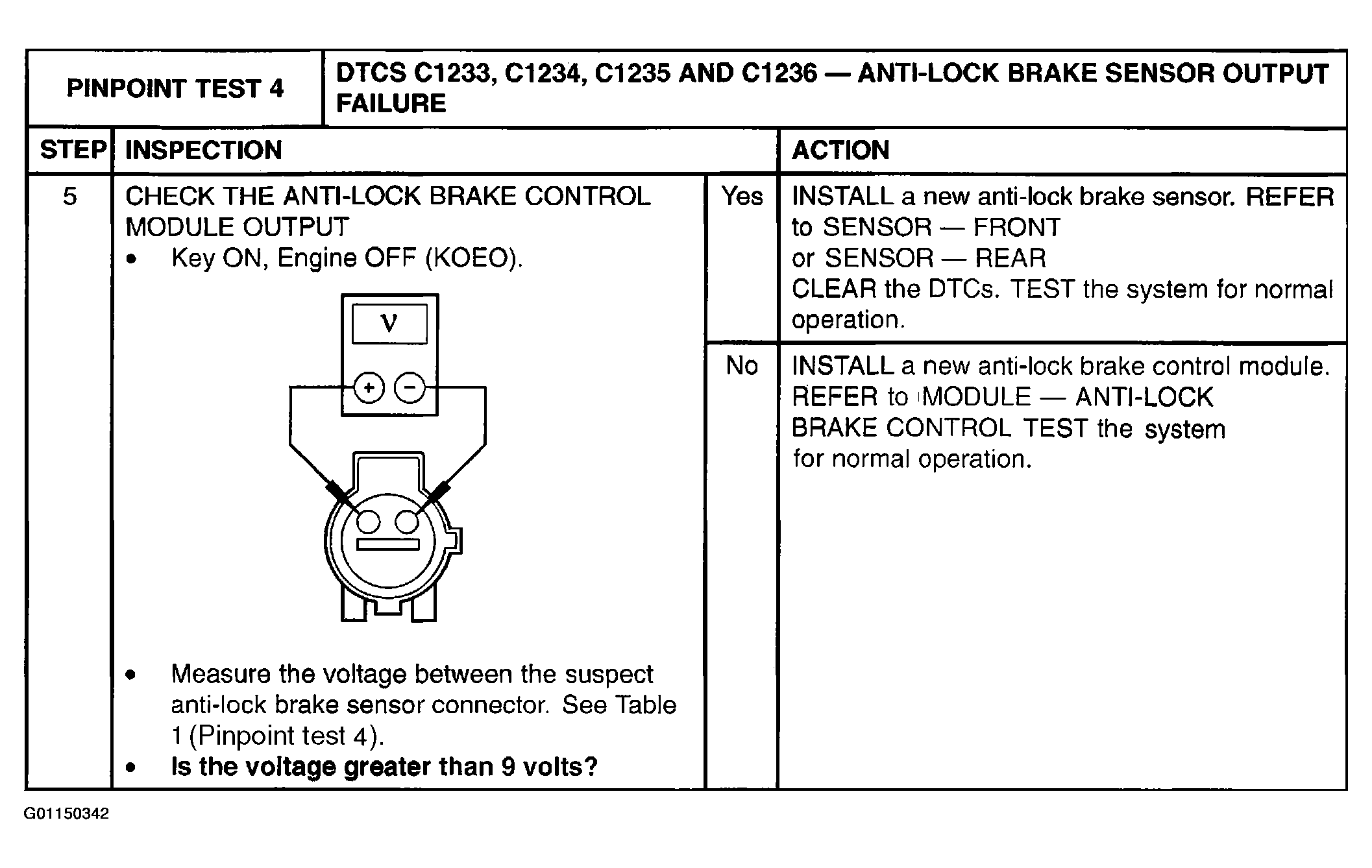

Fig 3: Pinpoint Test 4: DTCS C1233, C1234, C1235 & C1236 - Anti-Lock Brake Sensor Output Failure (Step 5)

Courtesy of MAZDA MOTORS CORP.

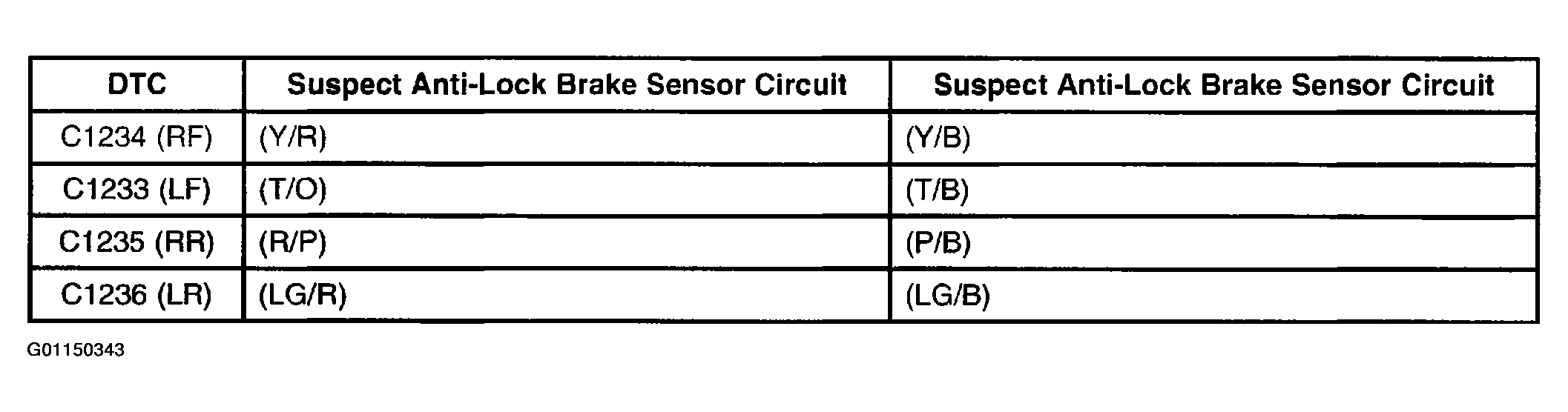

Fig 4: Table 1 (Pinpoint Test 4)

Courtesy of MAZDA MOTORS CORP.
