Pinpoint Test 3: DTC C1145 (RF), DTC C1155 (LF), DTC C1165 (RR) And DTC C1175 (LR) - Anti-Lock Brake Sensor Input Circuit Failure

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

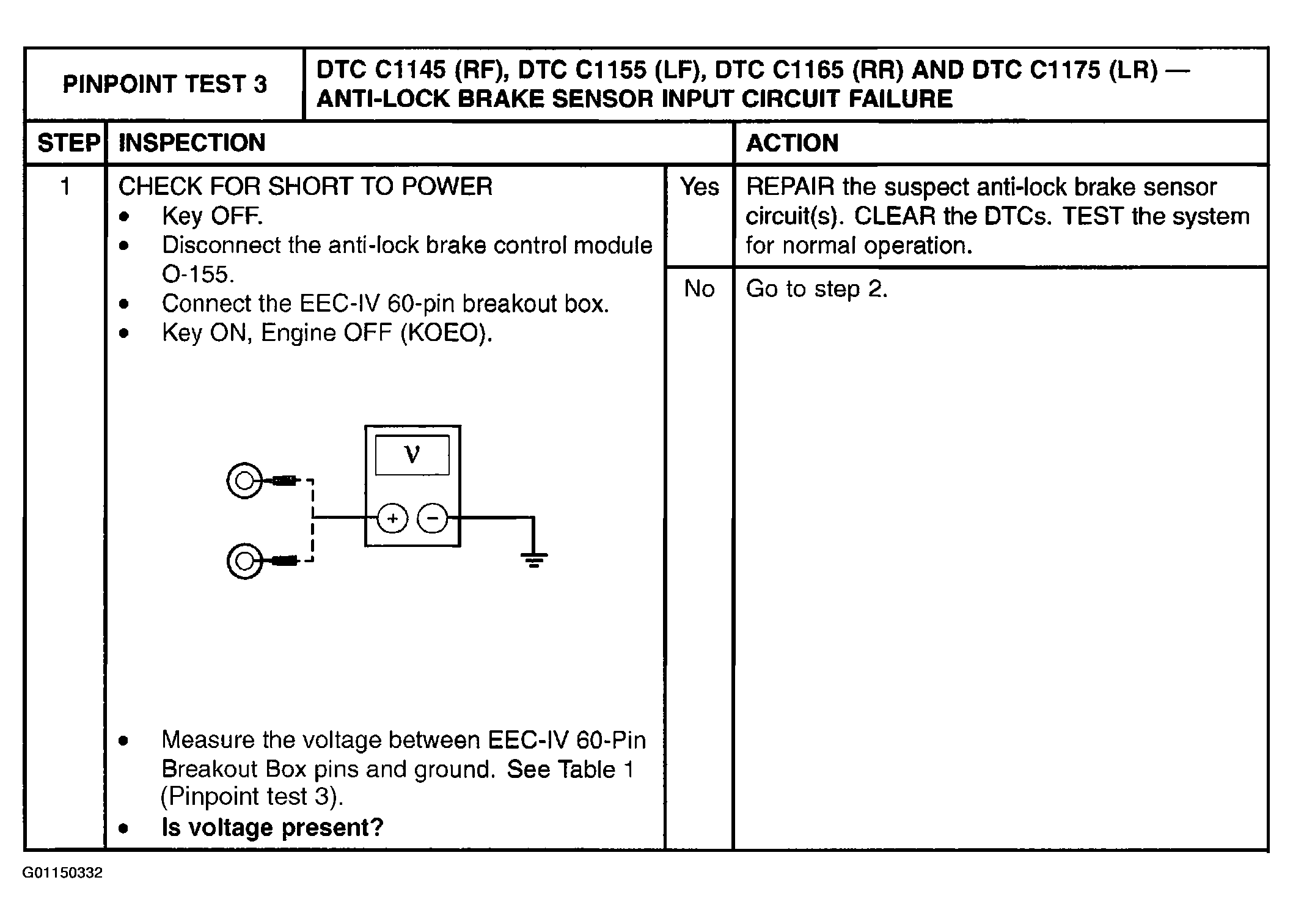

Fig 1: Pinpoint Test 3: DTC C1145 (RF), DTC C1155 (LF), DTC C1165 (RR) & DTC C1175 (LR) - Anti-Lock Brake Sensor Input Circuit Failure (Step 1)

Courtesy of MAZDA MOTORS CORP.

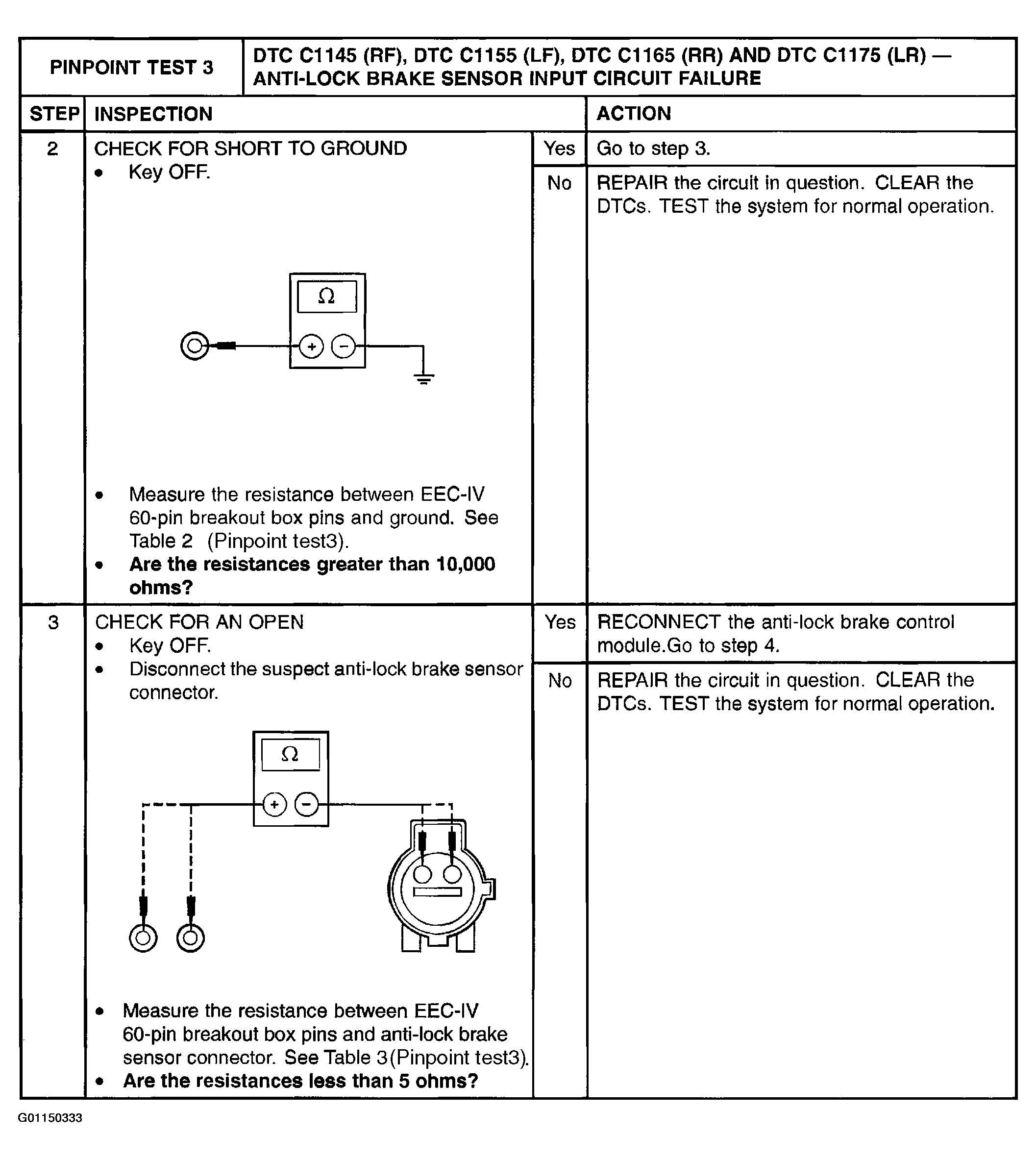

Fig 2: Pinpoint Test 3: DTC C1145 (RF), DTC C1155 (LF), DTC C1165 (RR) & DTC C1175 (LR) - Anti-Lock Brake Sensor Input Circuit Failure (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

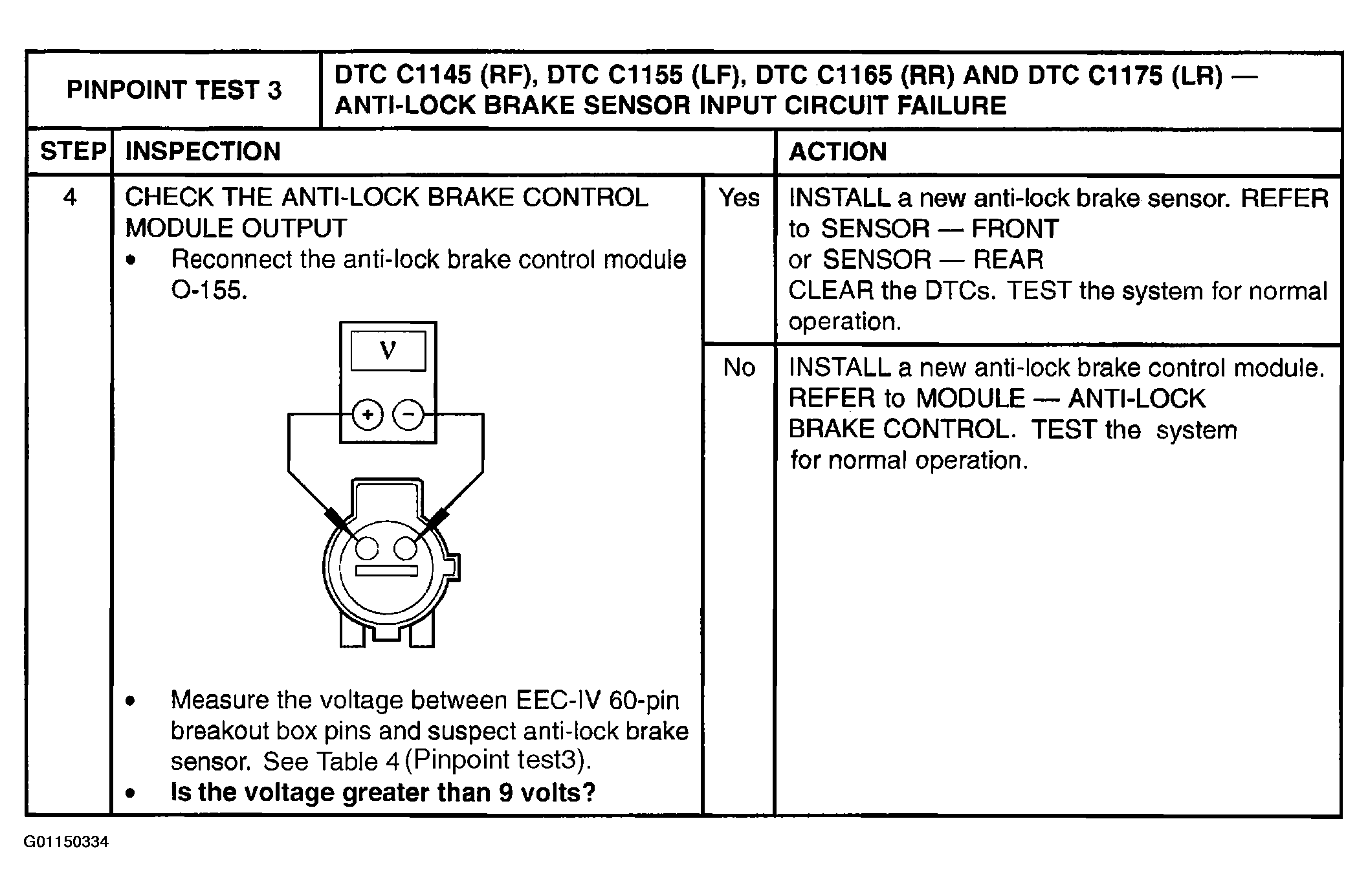

Fig 3: Pinpoint Test 3: DTC C1145 (RF), DTC C1155 (LF), DTC C1165 (RR) & DTC C1175 (LR) - Anti-Lock Brake Sensor Input Circuit Failure (Step 4)

Courtesy of MAZDA MOTORS CORP.

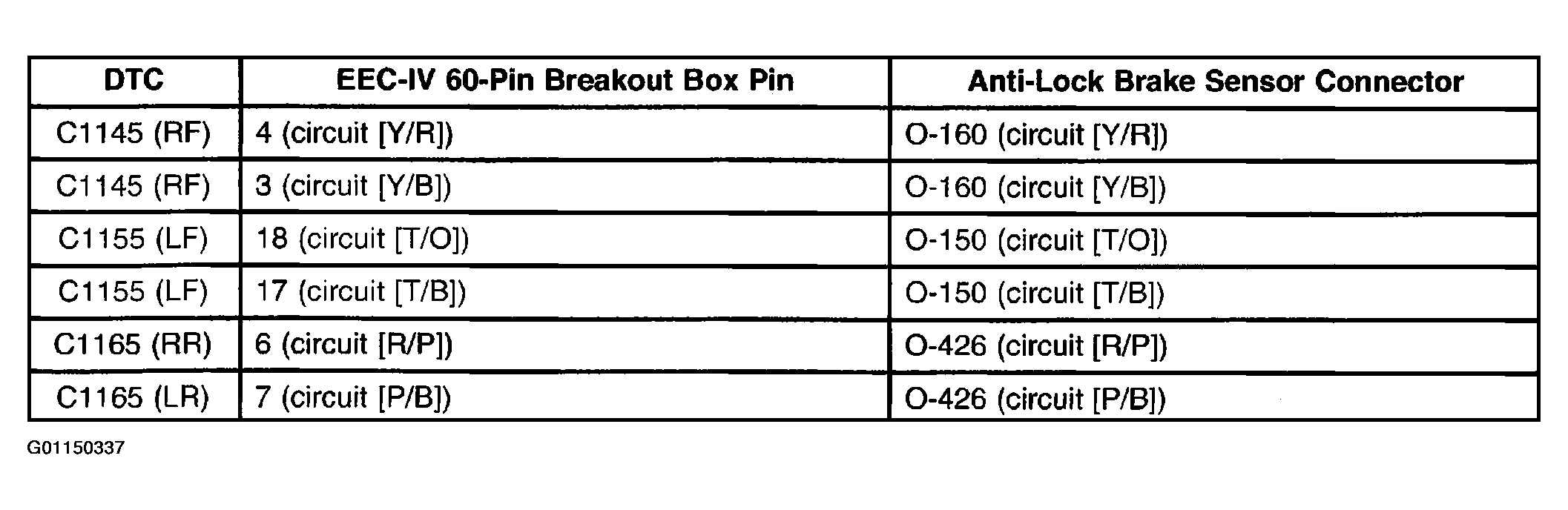

Fig 4: Table 1 (Pinpoint Test 3)

Courtesy of MAZDA MOTORS CORP.

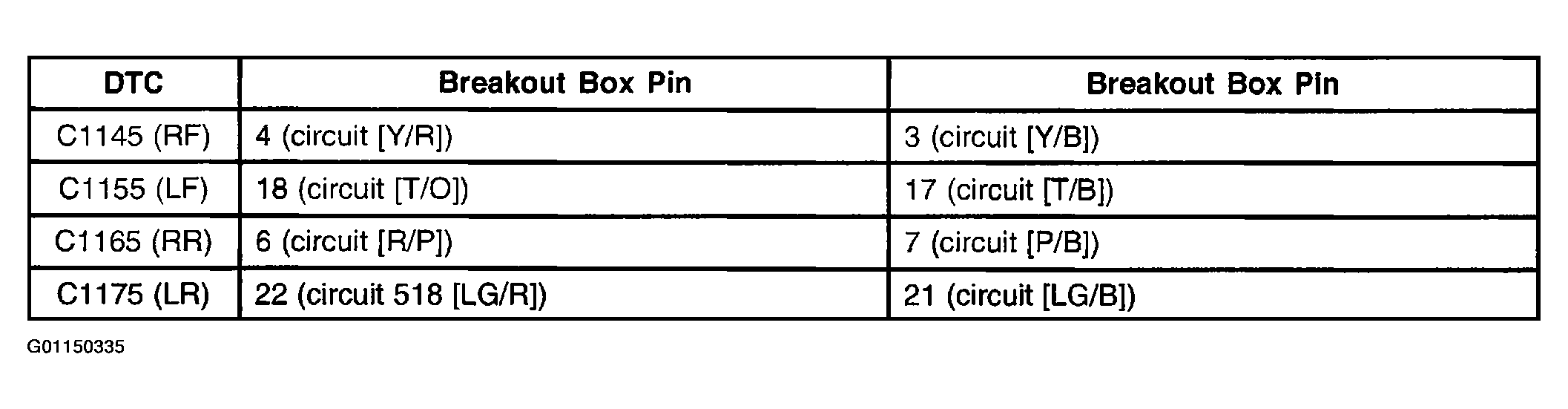

Fig 5: Table 2 (Pinpoint Test 3)

Courtesy of MAZDA MOTORS CORP.

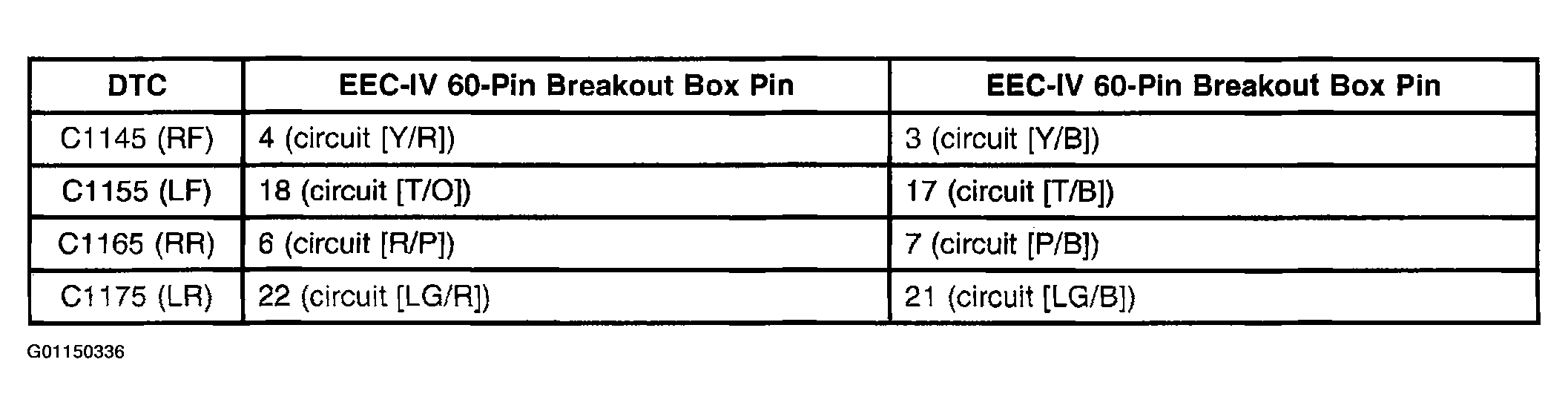

Fig 6: Table 3 (Pinpoint Test 3)

Courtesy of MAZDA MOTORS CORP.

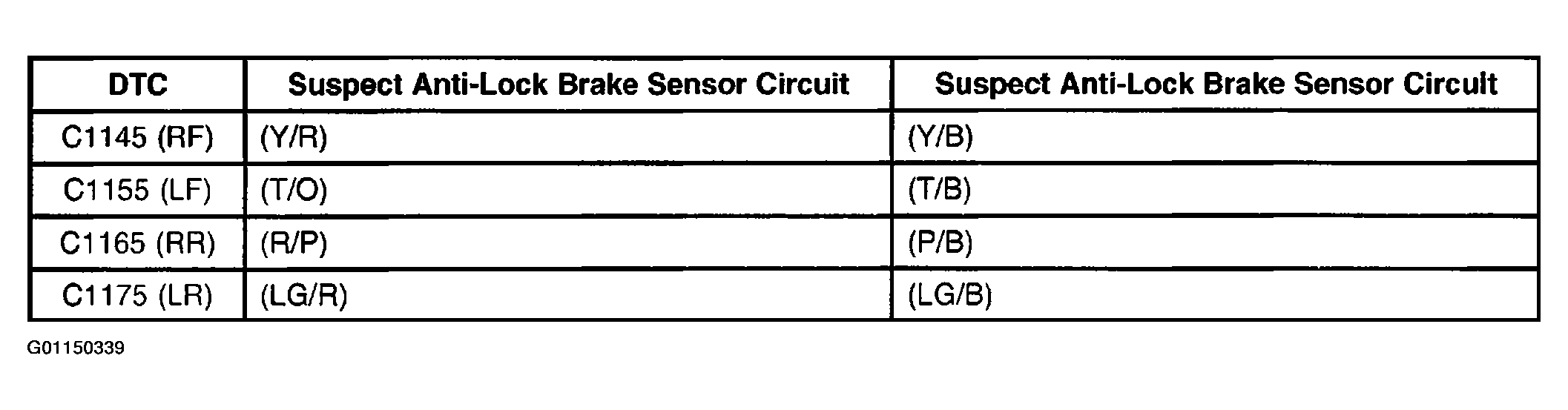

Fig 7: Table 4 (Pinpoint Test 3)

Courtesy of MAZDA MOTORS CORP.
