Pinion Shaft Component Assembly Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pinion shaft component into the valve housing (this can be done by hand).

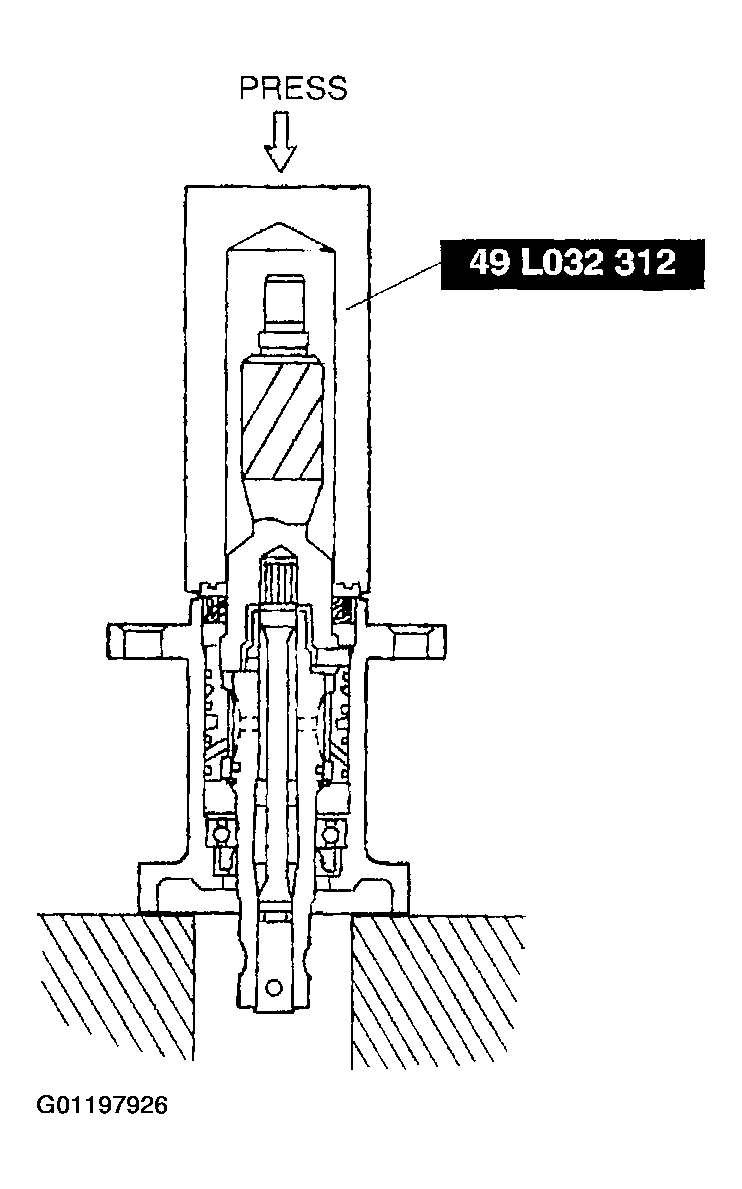

  2. Press the oil seal into the valve housing using the SST  .
    CAUTION: Temporarily secure the tie rod. Otherwise, the seal could be scratched when the rack moves all the way to the stroke end.
  3. Insert the valve housing component into the gear housing.
    Fig 1: Installing Valve Housing Into Gear Housing
    G01197926Courtesy of MAZDA MOTORS CORP.
  4. Secure the pinion end and the lower ball bearing on the inside with the locknut.
