Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

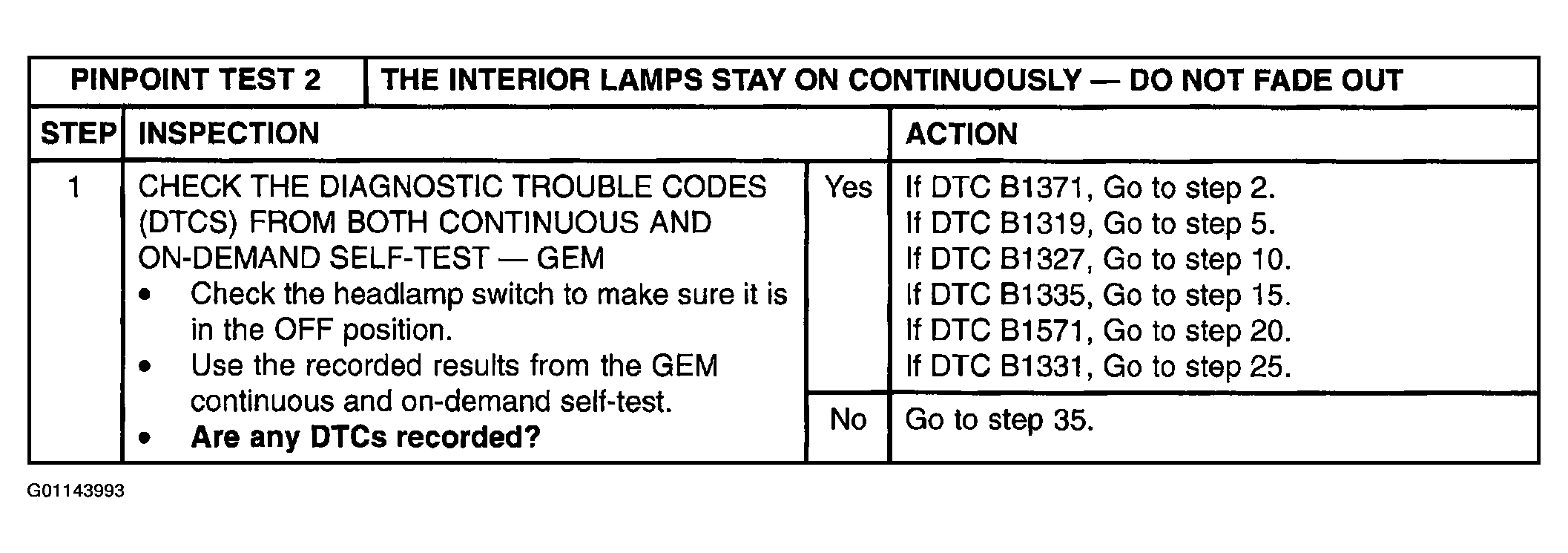

Fig 1: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Step 1)
Courtesy of MAZDA MOTORS CORP.

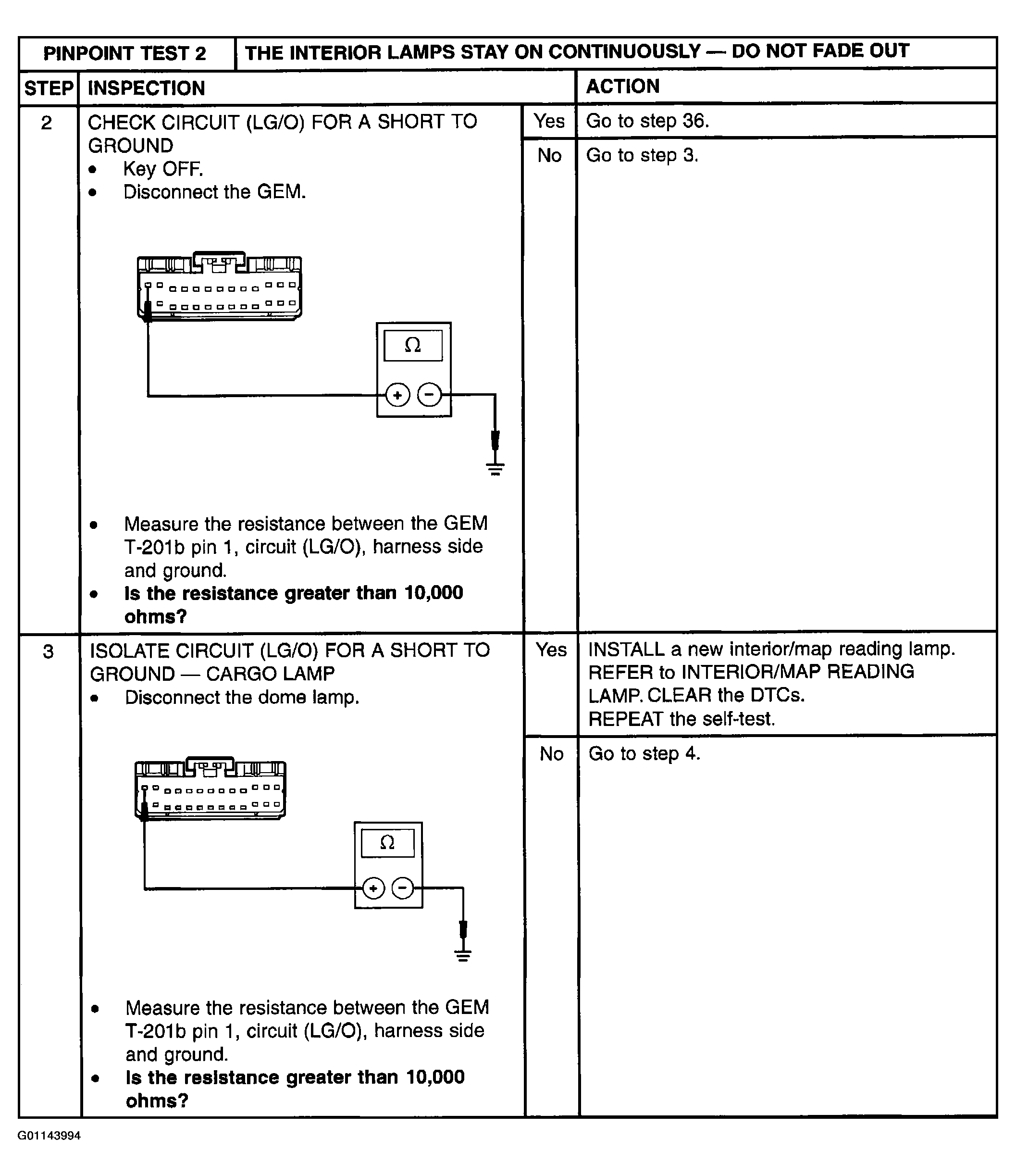

Fig 2: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 2 & 3)
Courtesy of MAZDA MOTORS CORP.

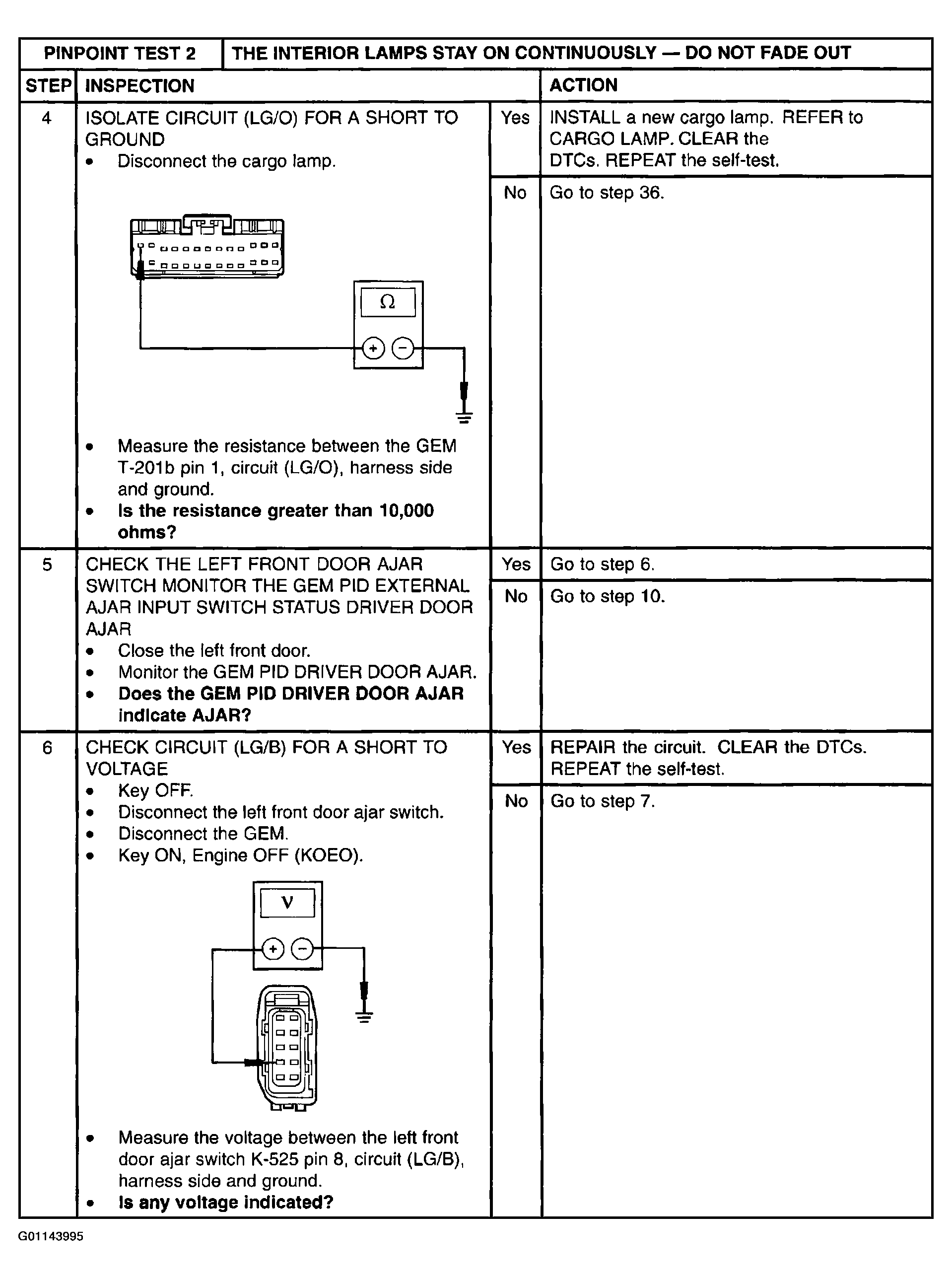

Fig 3: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 4 - 6)
Courtesy of MAZDA MOTORS CORP.

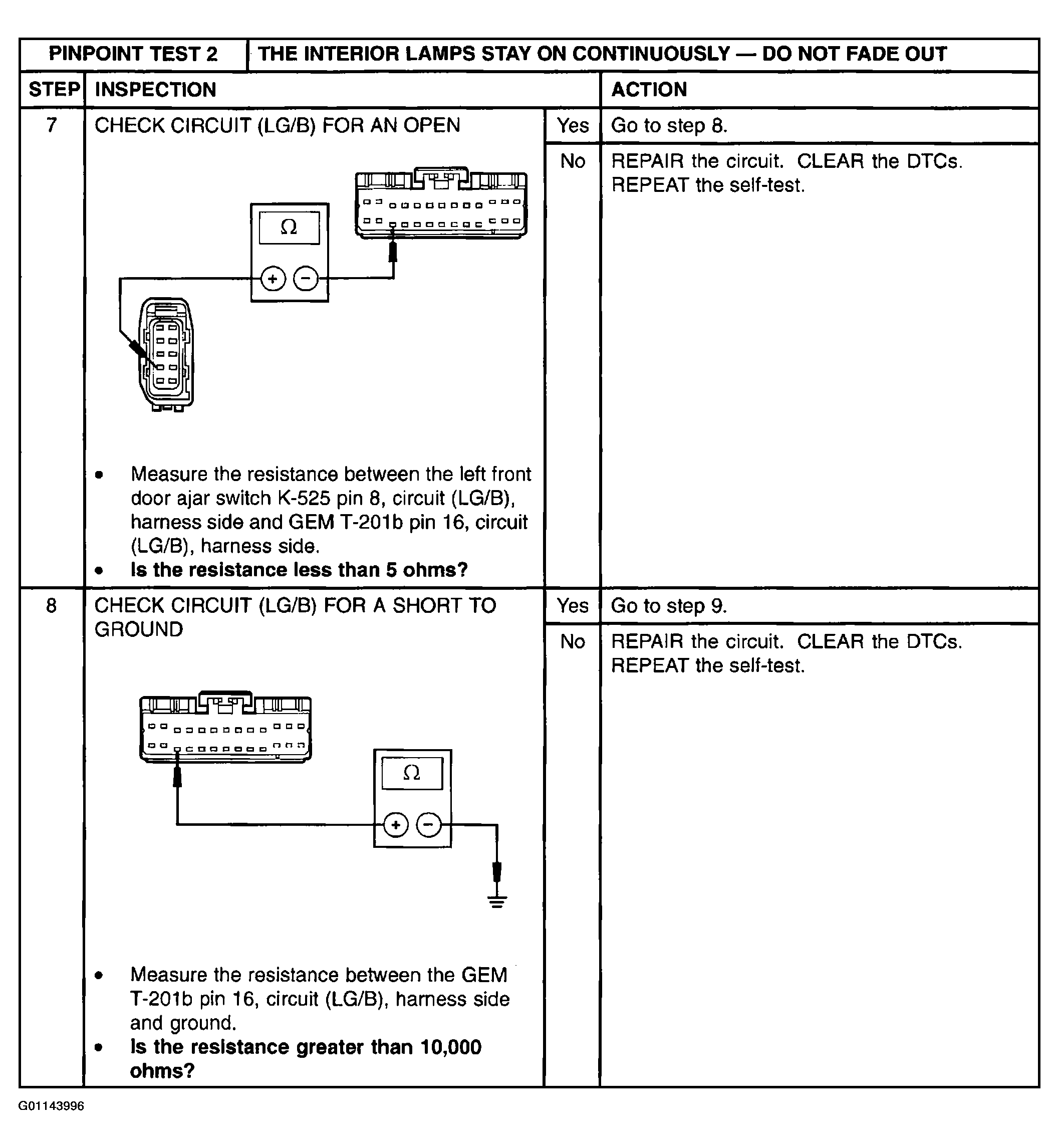

Fig 4: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 7 & 8)
Courtesy of MAZDA MOTORS CORP.

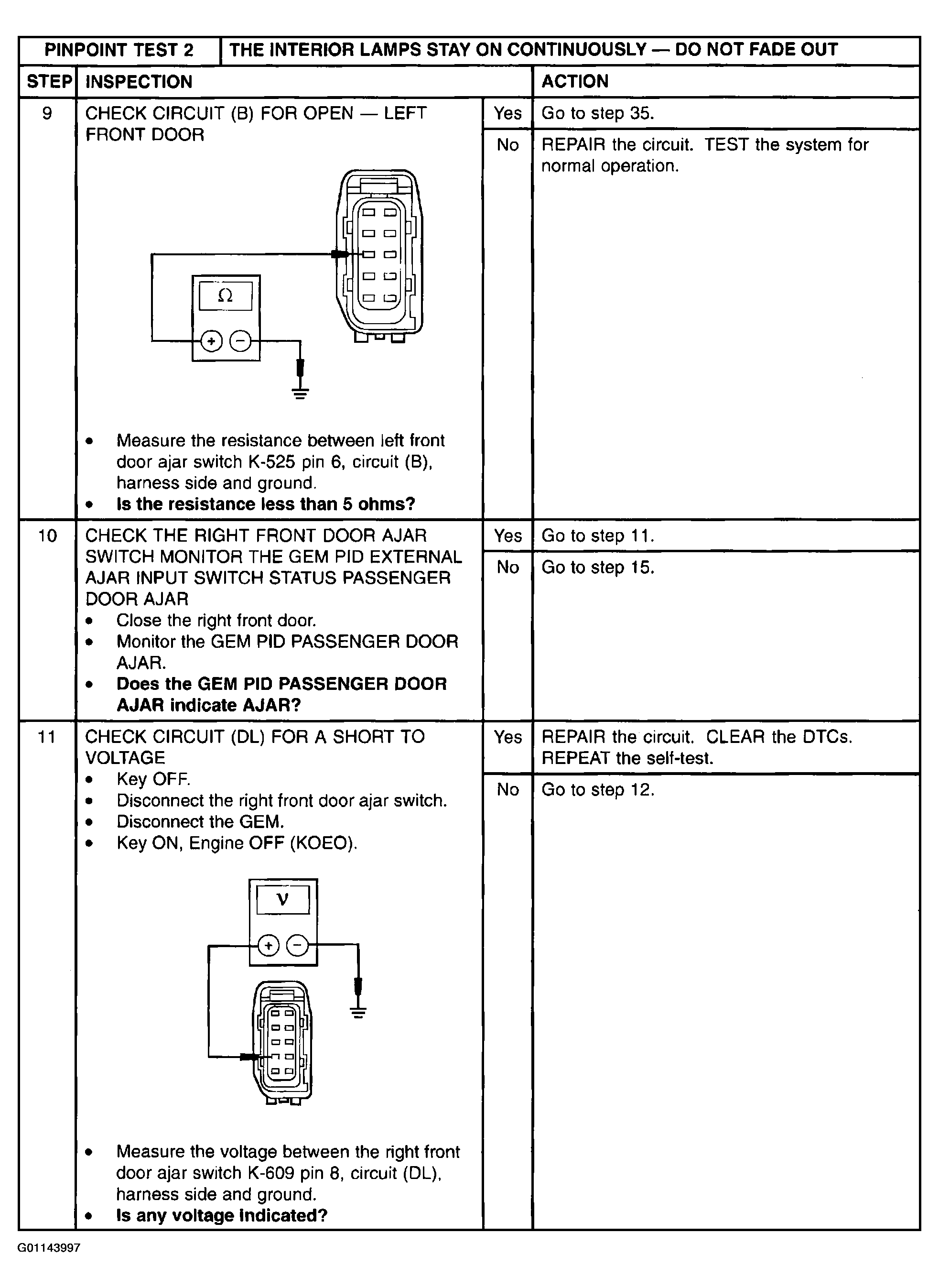

Fig 5: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 9 - 11)
Courtesy of MAZDA MOTORS CORP.

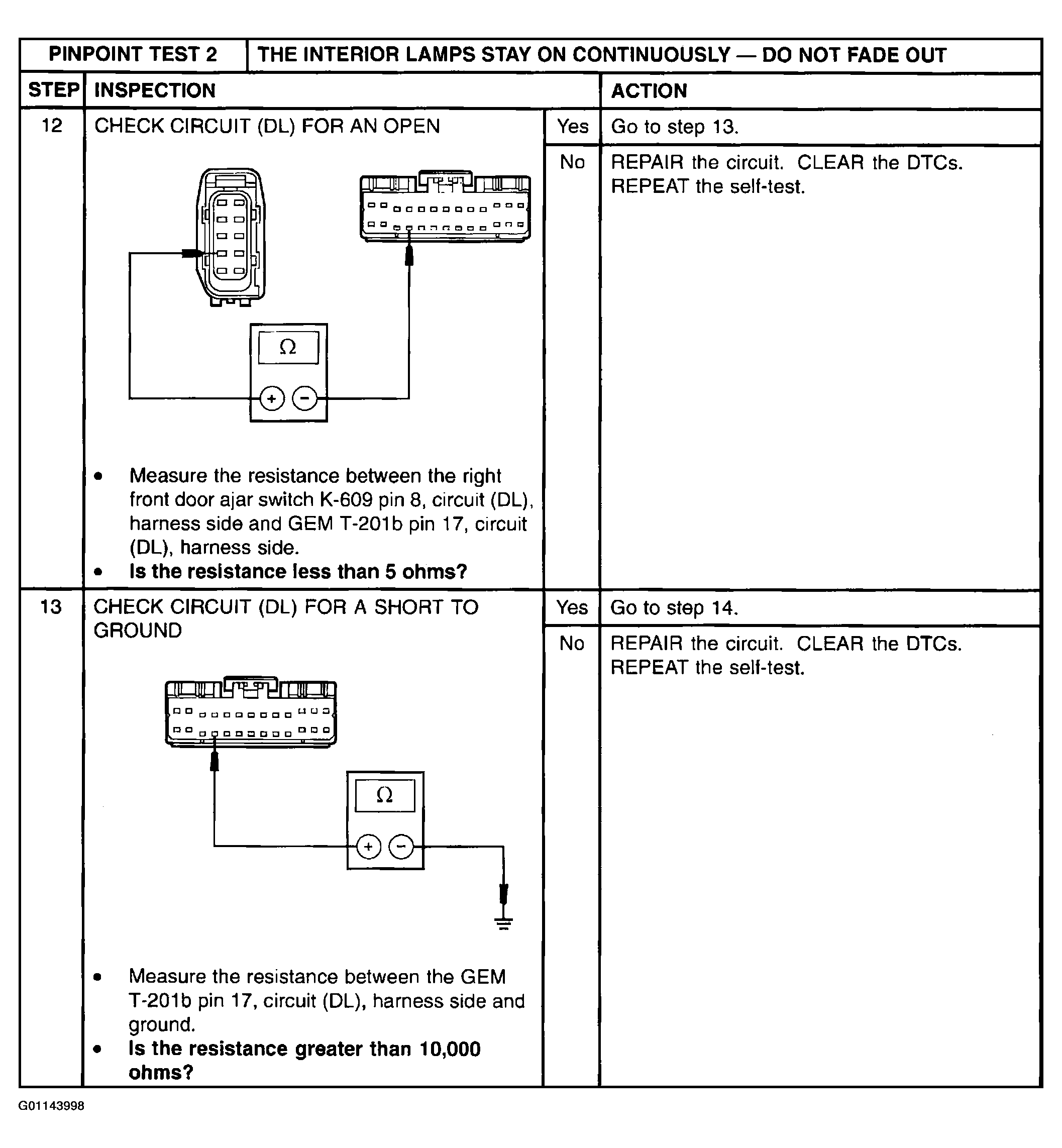

Fig 6: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 12 & 13)
Courtesy of MAZDA MOTORS CORP.

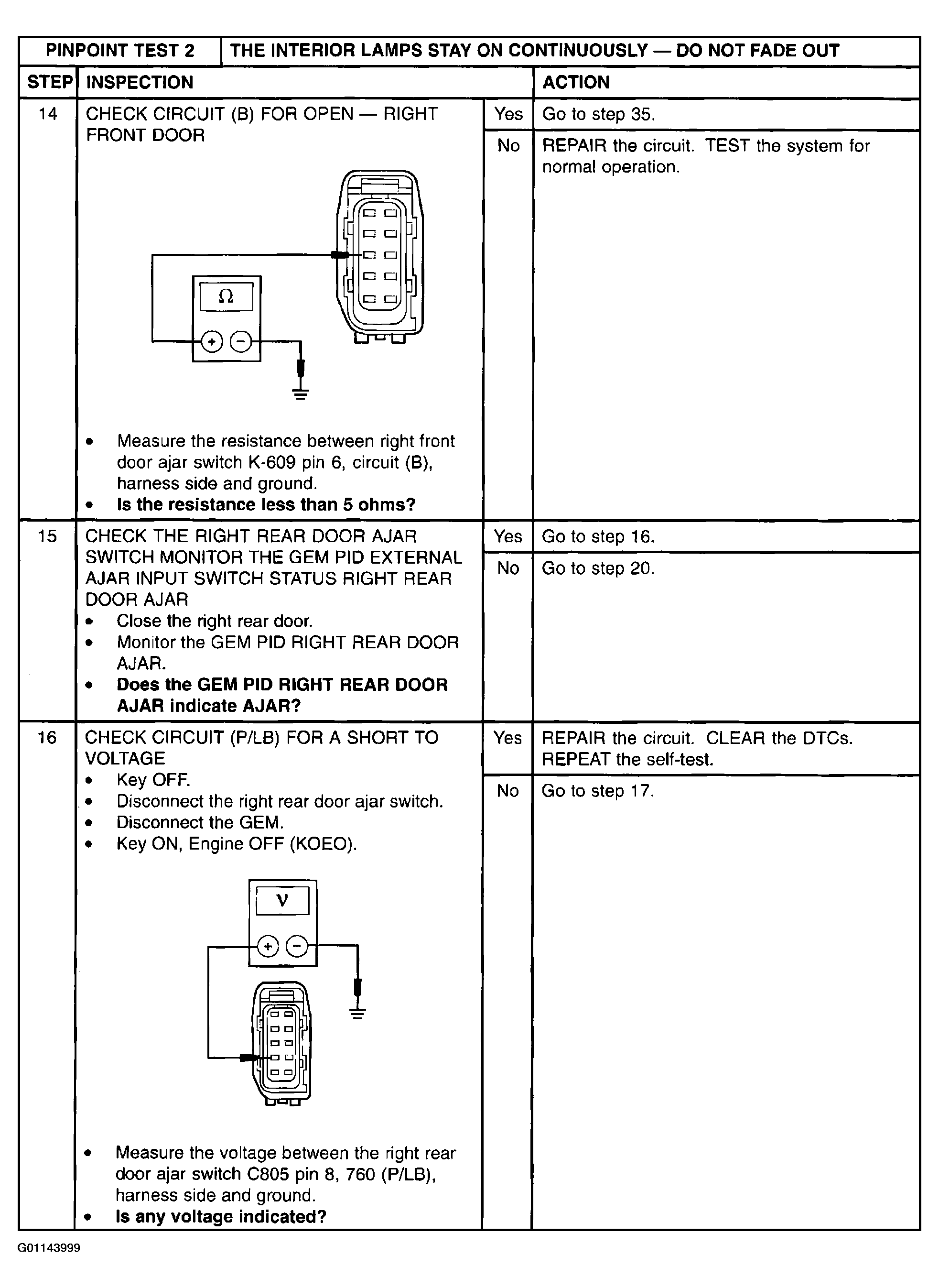

Fig 7: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 14 - 16)
Courtesy of MAZDA MOTORS CORP.
Fig 8: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 17 & 18)
Courtesy of MAZDA MOTORS CORP.

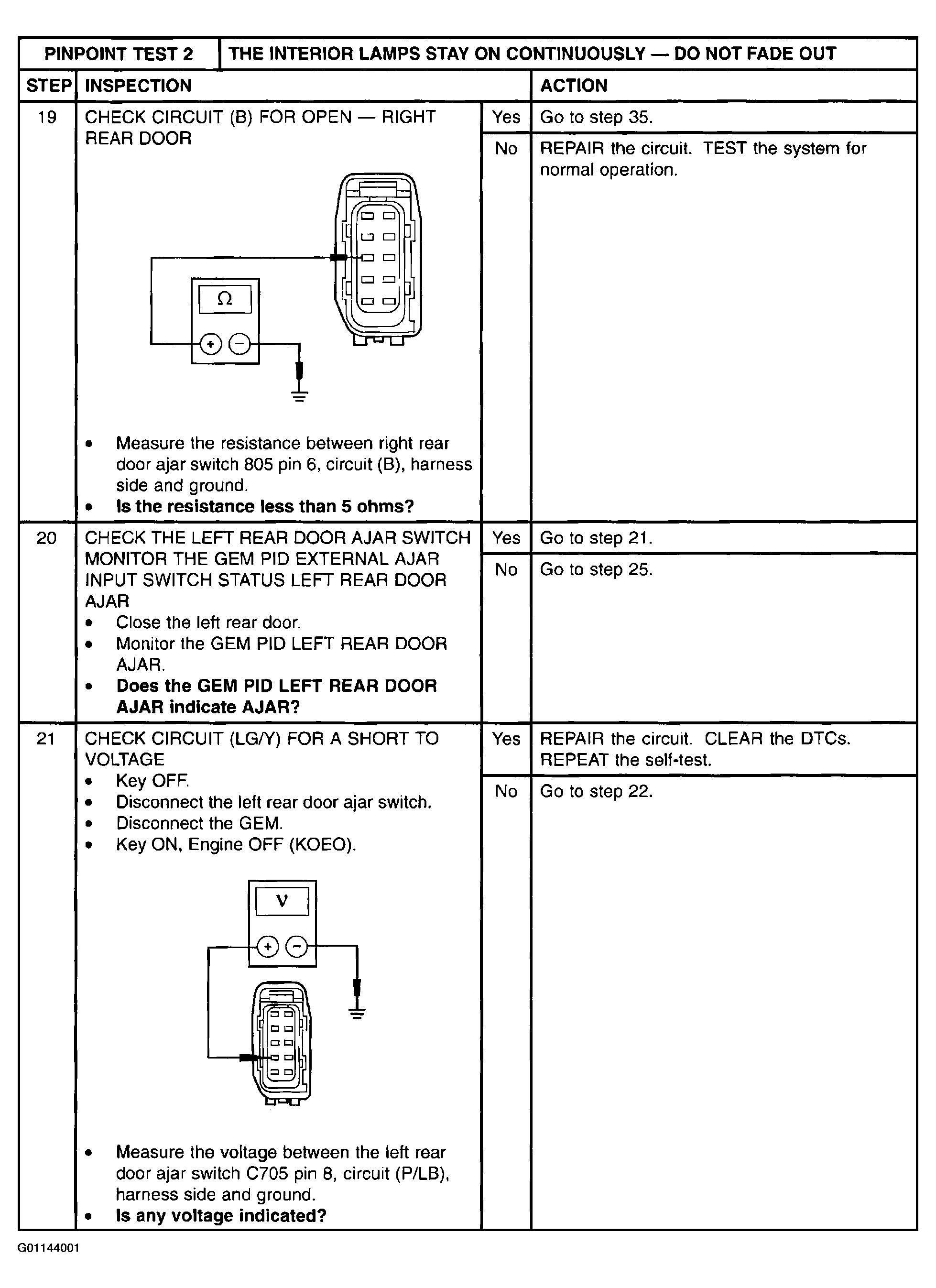

Fig 9: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 19 - 21)
Courtesy of MAZDA MOTORS CORP.

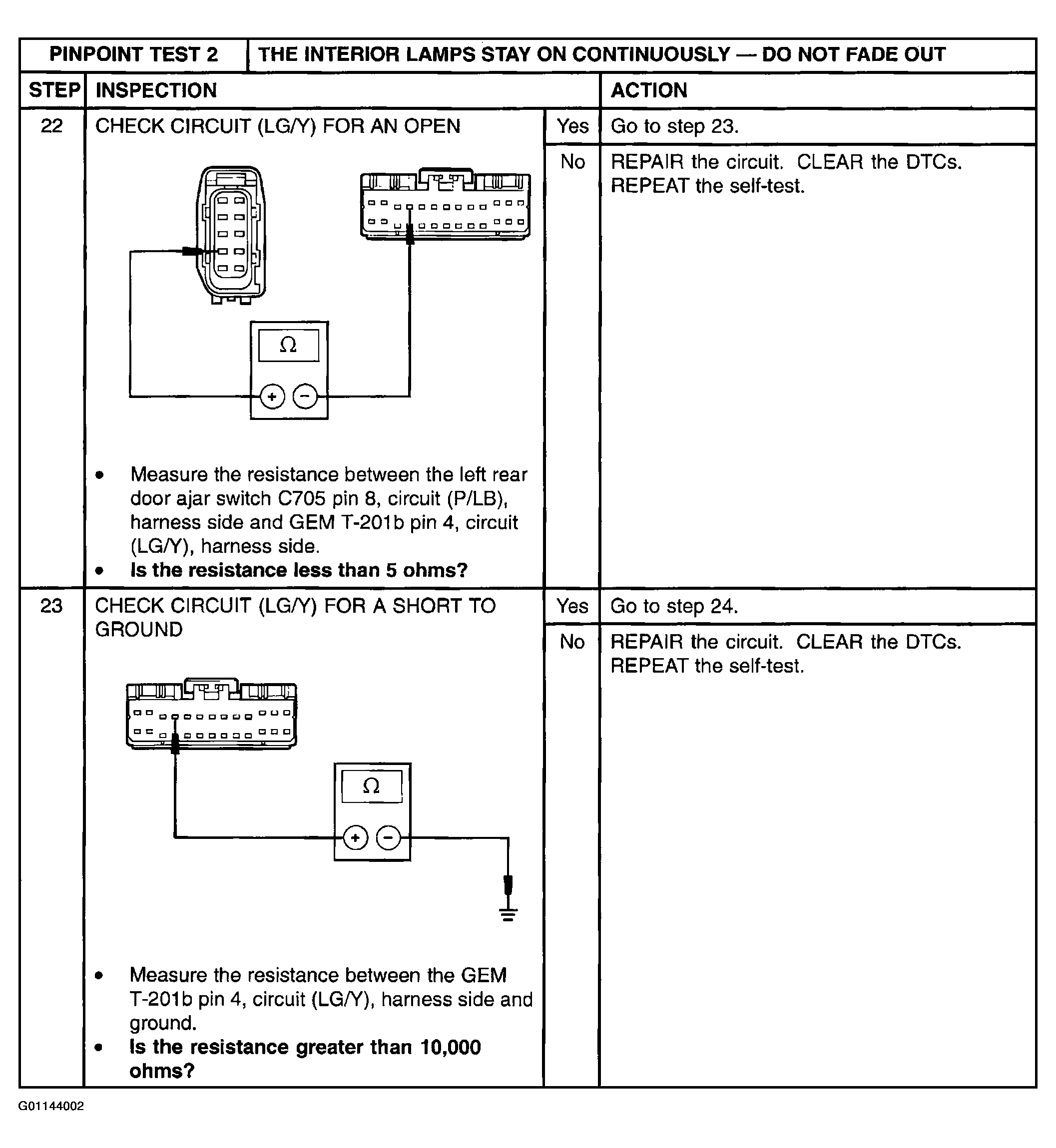

Fig 10: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 22 & 23)
Courtesy of MAZDA MOTORS CORP.

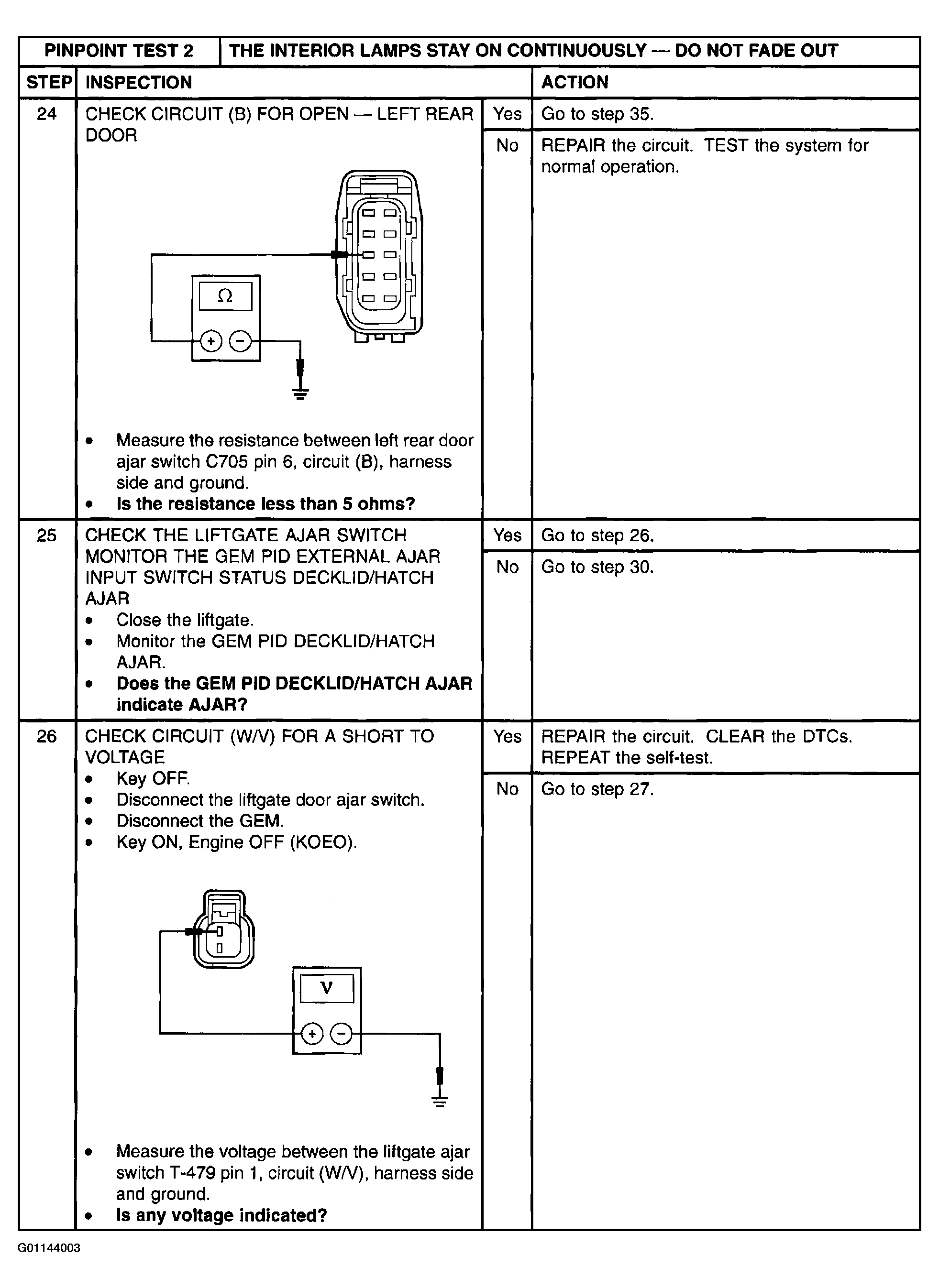

Fig 11: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 24 - 26)
Courtesy of MAZDA MOTORS CORP.

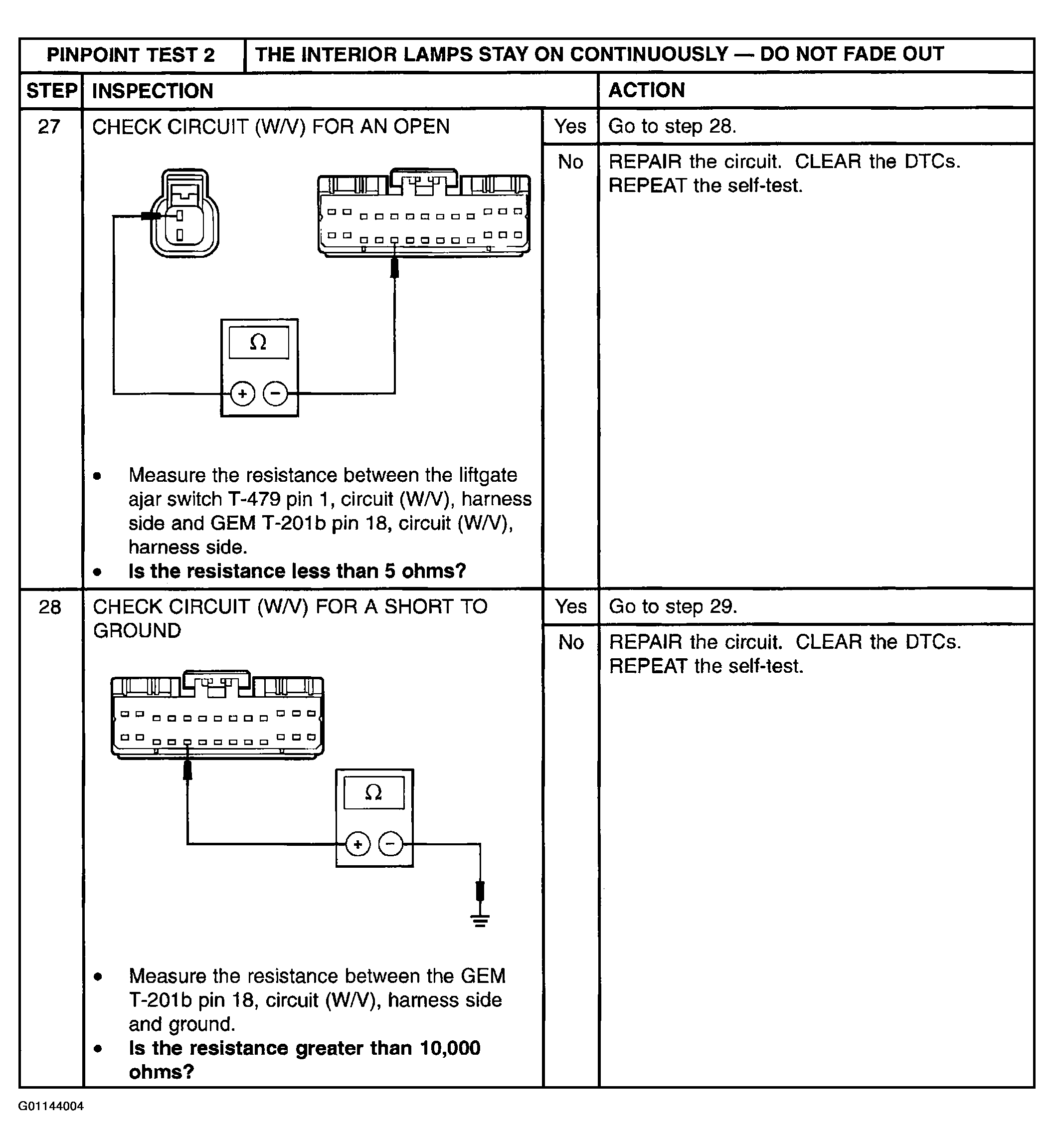

Fig 12: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 27 & 28)
Courtesy of MAZDA MOTORS CORP.

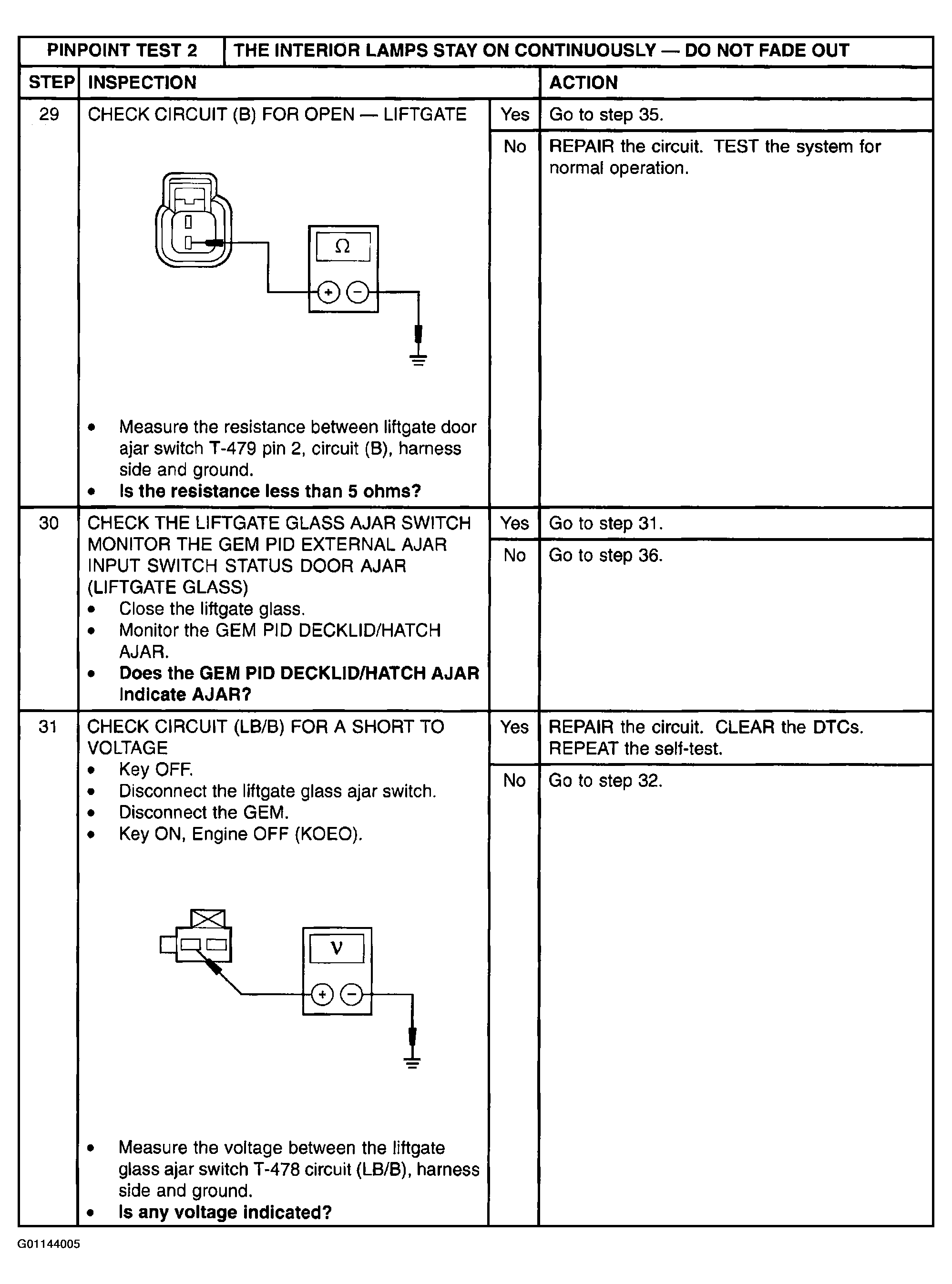

Fig 13: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 29 - 31)
Courtesy of MAZDA MOTORS CORP.

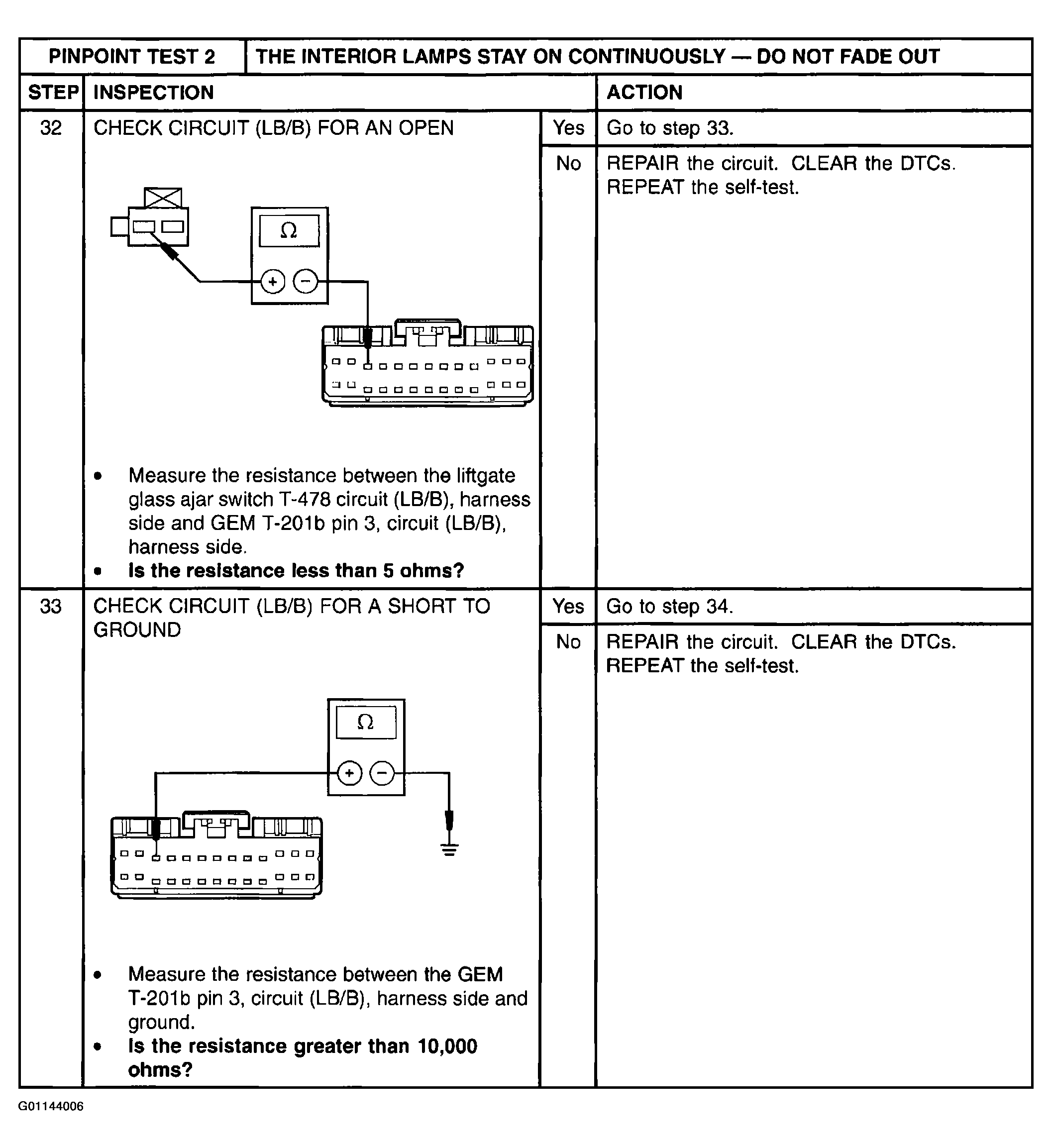

Fig 14: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 32 & 33)
Courtesy of MAZDA MOTORS CORP.

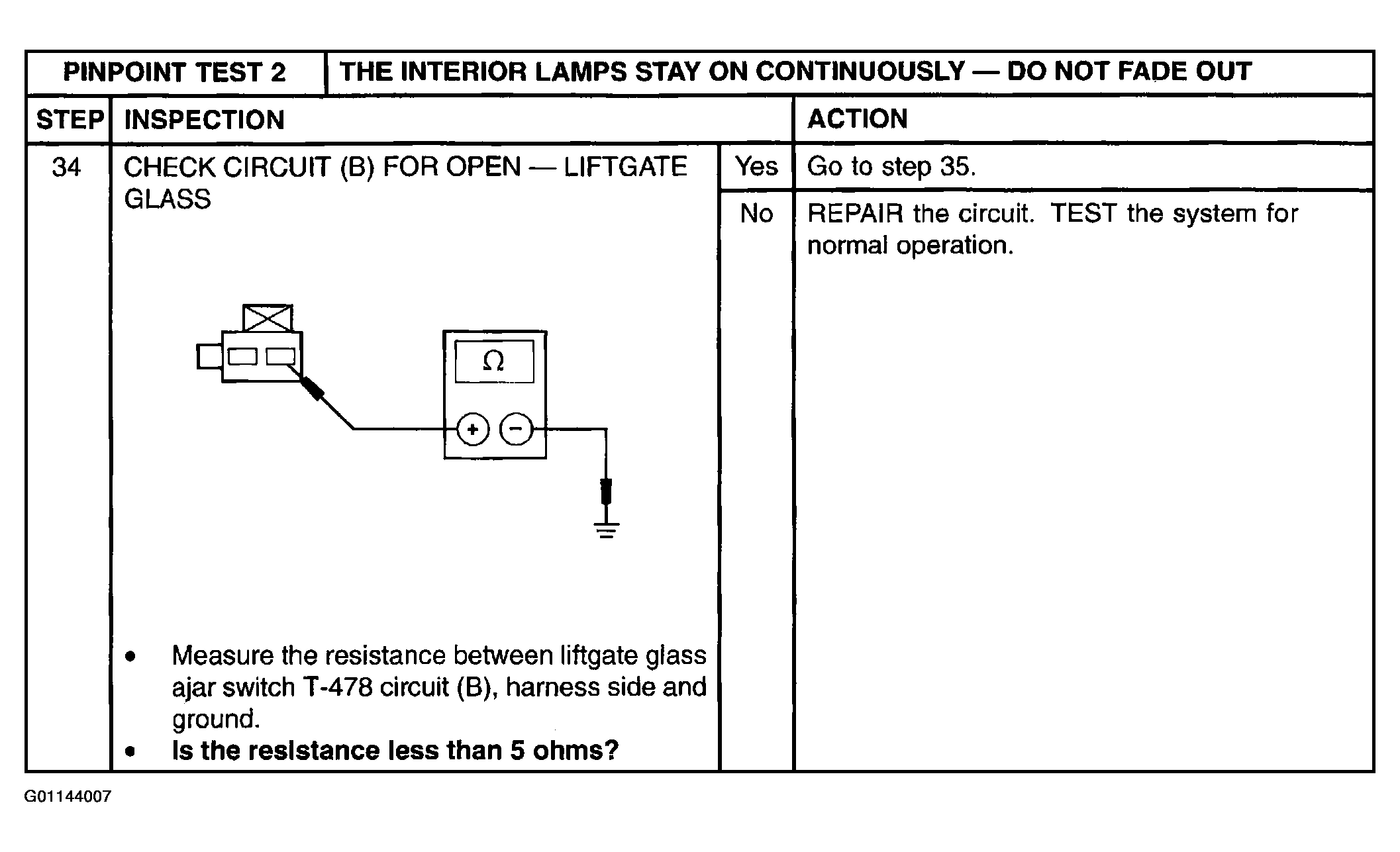

Fig 15: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Step 34)
Courtesy of MAZDA MOTORS CORP.

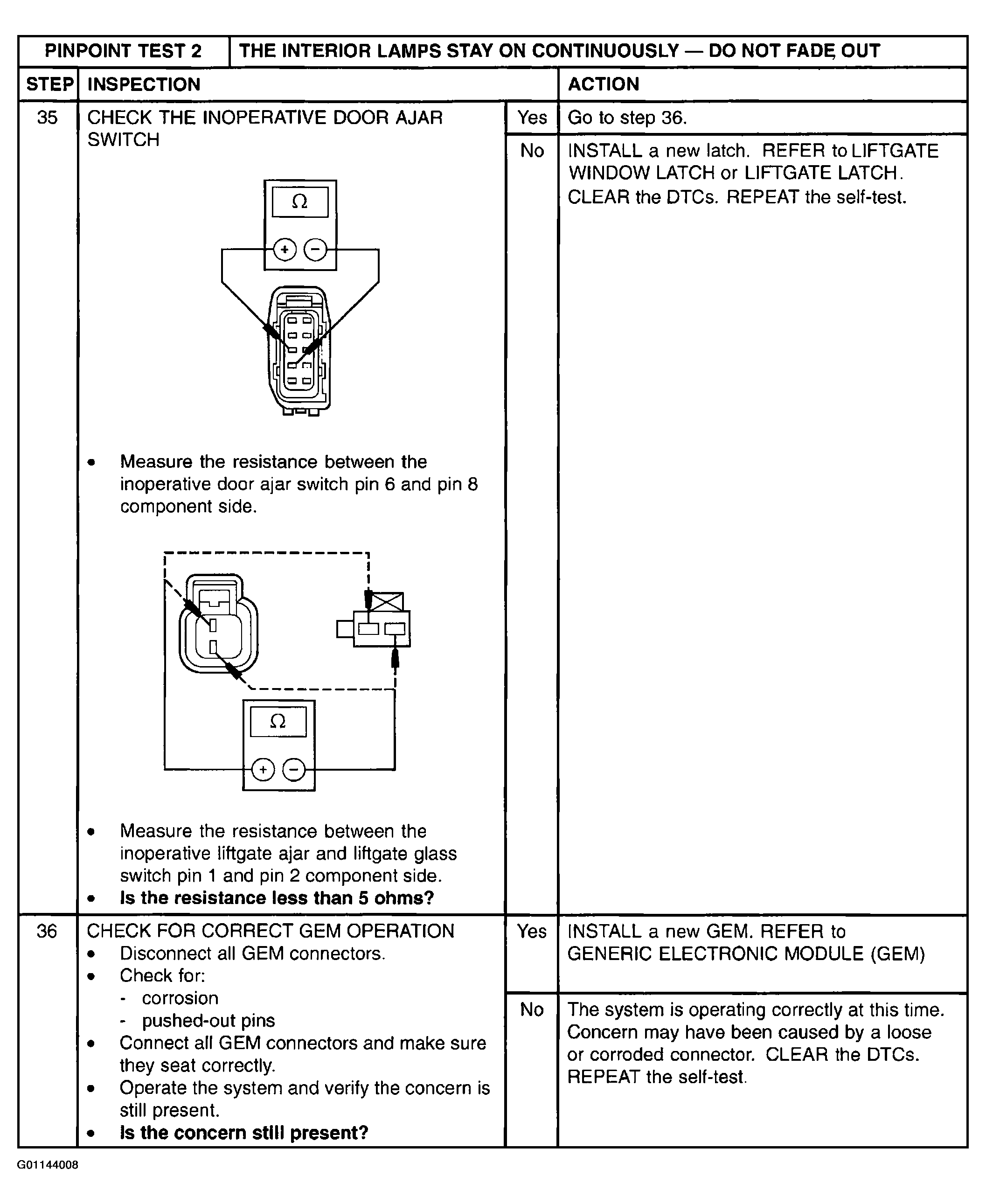

Fig 16: Pinpoint Test 2: The Interior Lamps Stay On Continuously - Do Not Fade Out (Steps 35 & 36)
