Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
    Fig 1: Removing Interior/Map Reading Lamp Lens
    G01144952Courtesy of MAZDA MOTORS CORP.
  2. Remove the interior/map reading lamp lens.

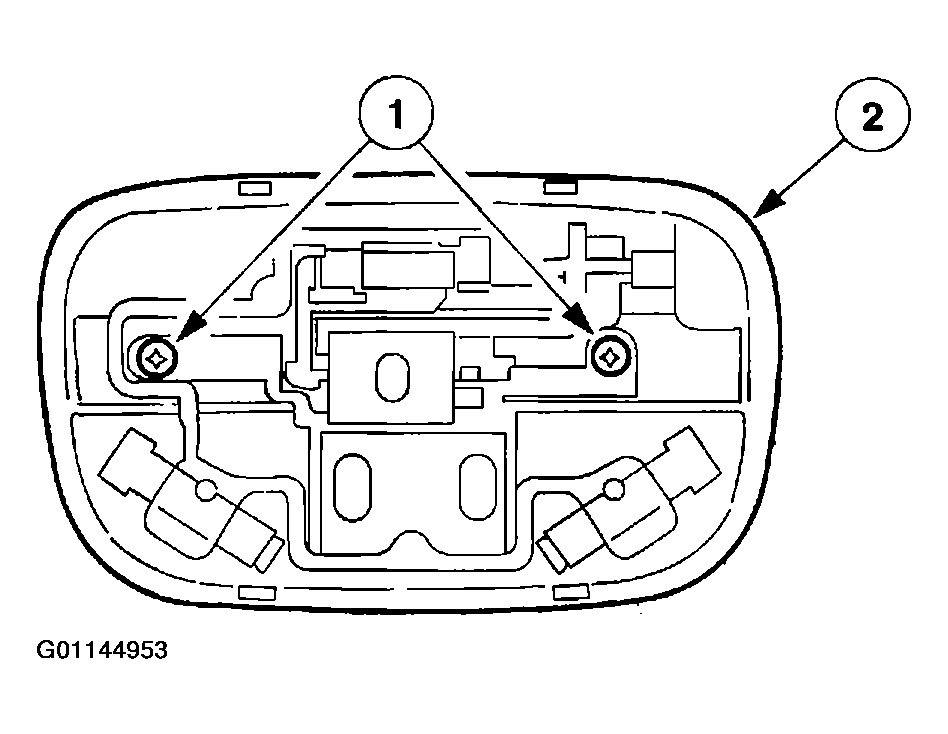

    Fig 2: Removing Interior/Map Reading Lamp Assembly
    G01144953Courtesy of MAZDA MOTORS CORP.
  3. Remove the interior/map reading lamp assembly.
    1. Remove the screws.
    2. Remove the interior/map reading lamp.
      1. Disconnect the electrical connector.
  4. To install, reverse the removal procedure.
