Inspection And Verification
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
- Verify the customer concern by operating the system.

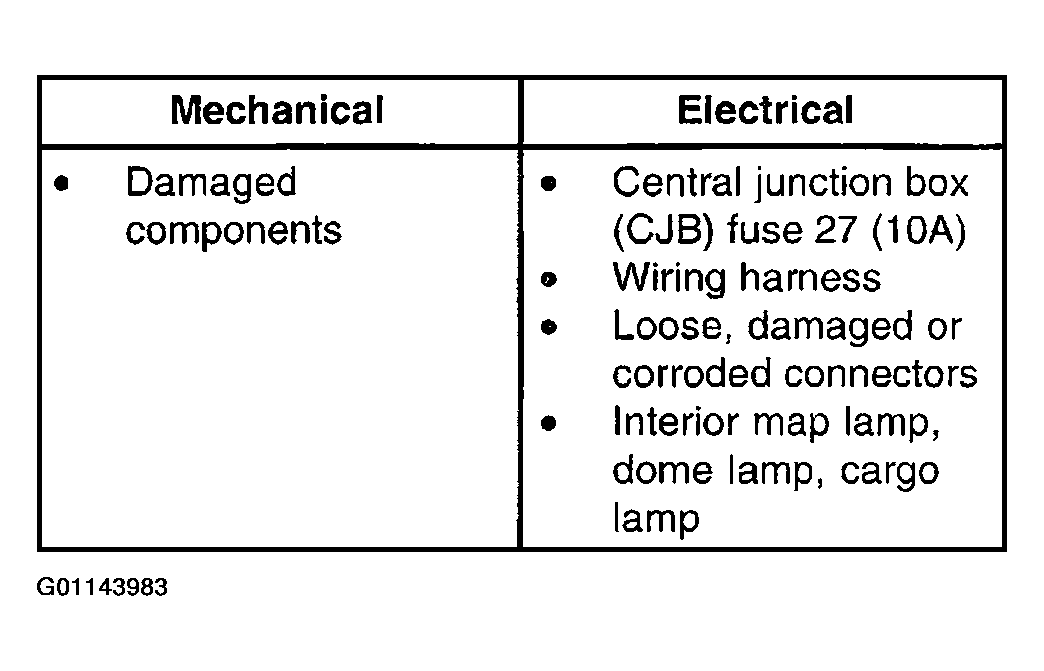

- Visually inspect for obvious signs of mechanical and electrical damage.
- If an obvious cause for an observed of reported concern is found, correct the cause (if possible) before proceeding to the next step.
- If the WDS or equivalent Tester does not power up, refer to the WDS or equivalent Tester manual.
- Carry out the DATA LINK DIAGNOSTICS test. If the WDS or equivalent Tester responds with:
- CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to MODULE COMMUNICATIONS NETWORK article.
- NO RESP/NOT EQUIP for GEM, refer to PINPOINT TEST 1: NO COMMUNICATION WITH THE GEM .
- SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs, and carry out the self-test diagnostics for the GEM.
- If the DTCs retrieved are related to the concern, go to the GEM Diagnostic Trouble Code (DTC) Index to continue diagnostics.
- If no DTCs related to the concern are retrieved, proceed to the TROUBLESHOOTING INDEX. Refer to TROUBLESHOOTING INDEX - INTERIOR LIGHTING .

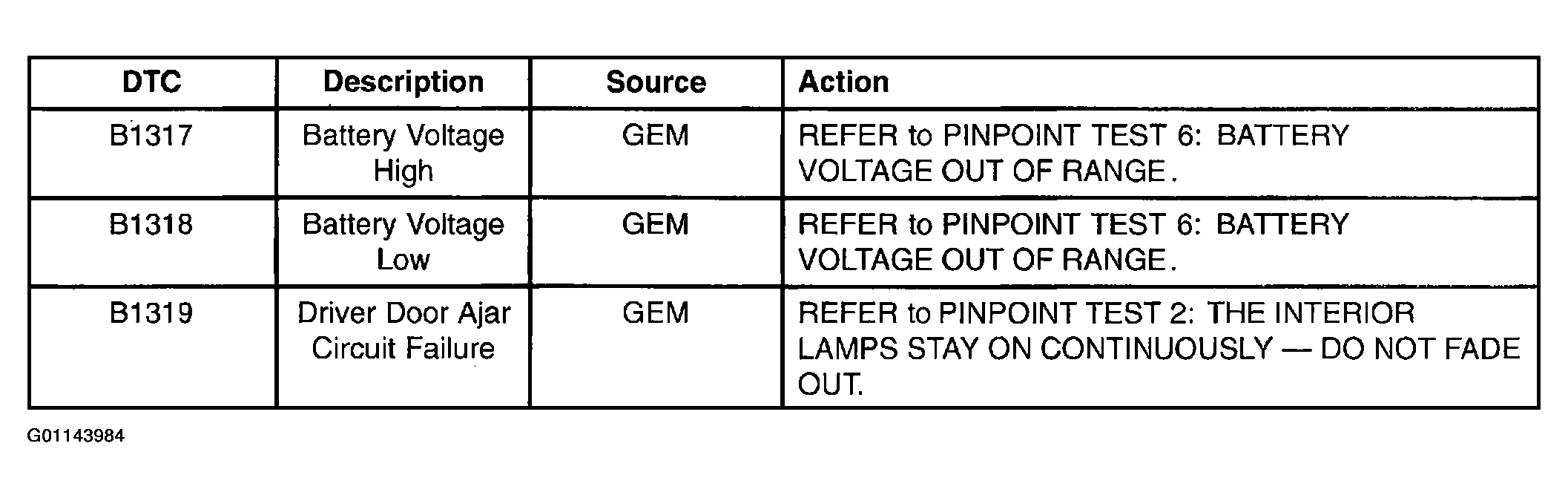

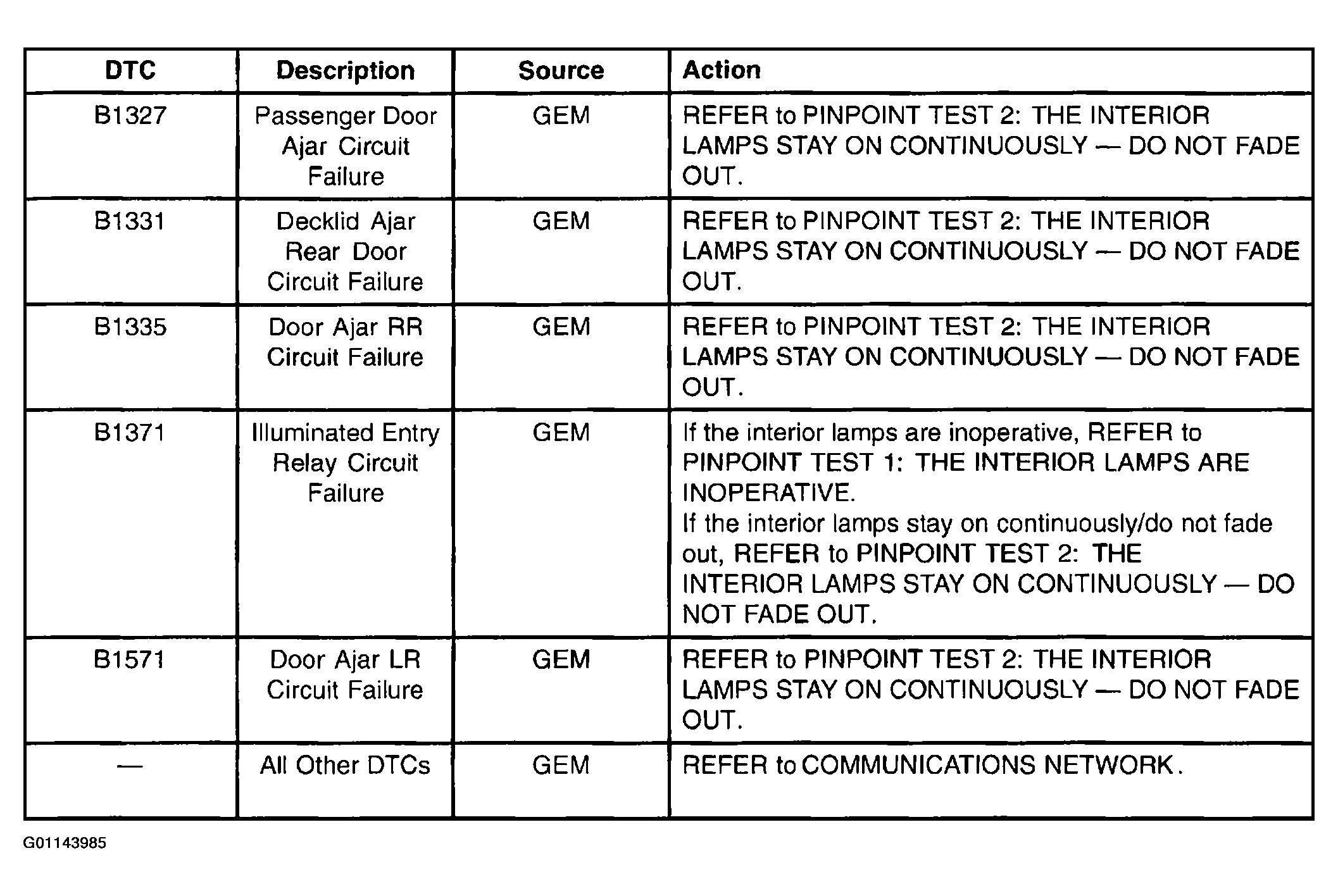

- If the DTCs are retrieved that are not found in the following GEM Diagnostic Trouble Code (DTC) Index, refer to the GEM DIAGNOSTIC TROUBLE CODE (DTC) INDEX to determine what diagnosis needs to be performed.
