Removal and Installation

Vehicles with overhead console

Fig 1: Removing/Installing Overhead Console

Courtesy of MAZDA MOTORS CORP.

1. Remove the overhead console.
   1. Open the front console door.
   2. Remove the screws.
   3. Remove the overhead console.
      1. If equipped, disconnect the electrical connector.
         Fig 2: Removing/Installing Sun Visors & Clips

         Courtesy of MAZDA MOTORS CORP.
2. Remove the two sun visors and two clips.
   1. Remove the six screws.
   2. Remove the two sun visors and two clips.
      Fig 3: Removing/Installing Passenger Assist Handle Covers

      Courtesy of MAZDA MOTORS CORP.
3. Remove the eight passenger assist handle covers.
   Fig 4: Removing/Installing Passenger Assist Handles

   Courtesy of MAZDA MOTORS CORP.
4. Remove the four passenger assist handles.
   1. Remove the eight bolts.
   2. Remove the four passenger assist handles.
      Fig 5: Opening A-Pillar Passenger Assist Handle Covers

      Courtesy of MAZDA MOTORS CORP.
5. Open the four A-pillar passenger assist handle covers.
   Fig 6: Removing/Installing A-Pillar Passenger Assist Handles

   Courtesy of MAZDA MOTORS CORP.
6. Remove the two A-pillar passenger assist handles.
   1. Remove the four bolts.
   2. Remove the two A-pillar passenger assist handles.
      Fig 7: Removing/Installing Windshield Side Garnish Moulding

      Courtesy of MAZDA MOTORS CORP.
7. Remove the two windshield side garnish mouldings.
8. If equipped, remove the roof opening panel moulding.

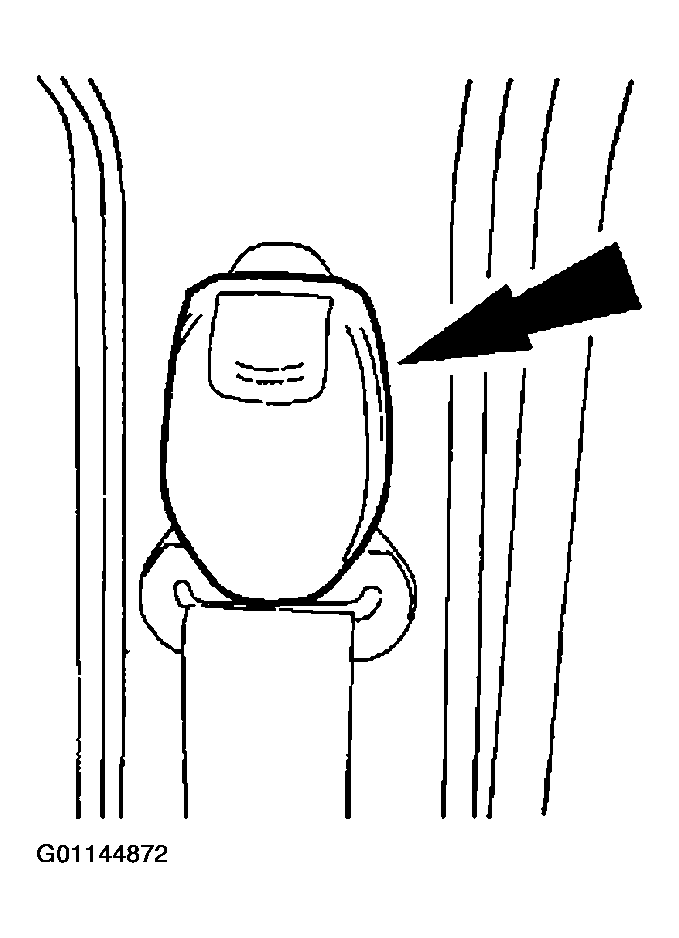

   Fig 8: Removing/Installing Safety Belt D-Ring Covers

   Courtesy of MAZDA MOTORS CORP.
9. Remove the safety belt D-ring covers.

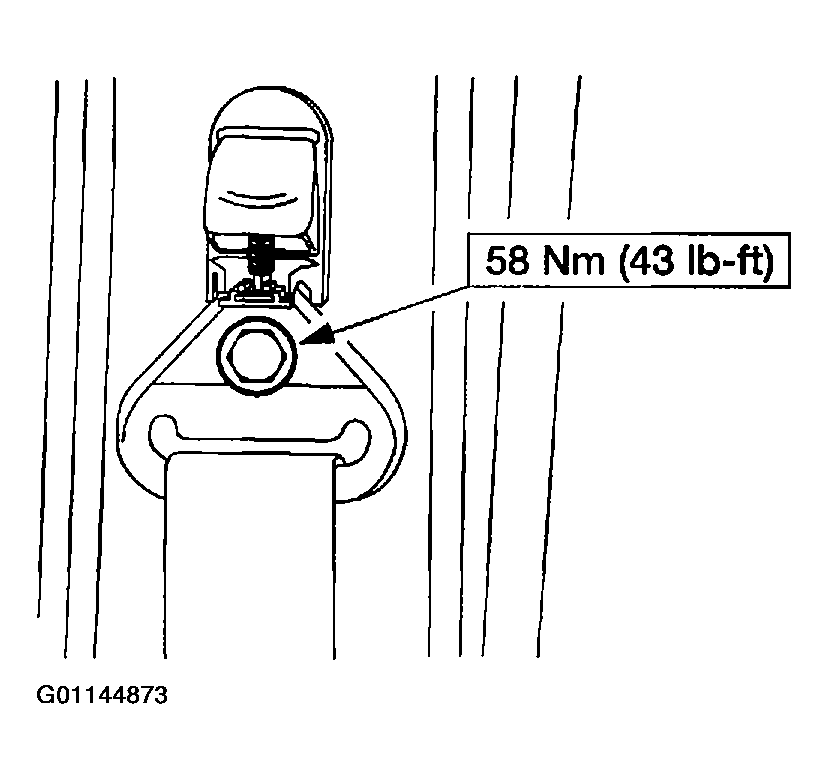

   Fig 9: Removing/Installing Safety Belt D-Ring Bolts

   Courtesy of MAZDA MOTORS CORP.
10. Remove the safety belt D-ring bolts.
11. Position the front and rear door weather-strips aside.
    Fig 10: Removing/Installing Upper B-Pillar Trim Panels

    Courtesy of MAZDA MOTORS CORP.
12. Remove the upper B-pillar trim panels.
    • Attached with clips.
13. Remove the two C-pillar trim panels. For additional information, refer to C-PILLAR TRIM PANEL  .
    Fig 11: Removing/Installing D-Pillar Trim Panels

    Courtesy of MAZDA MOTORS CORP.
14. Remove the two D-pillar trim panels.
    • Attached with clips.

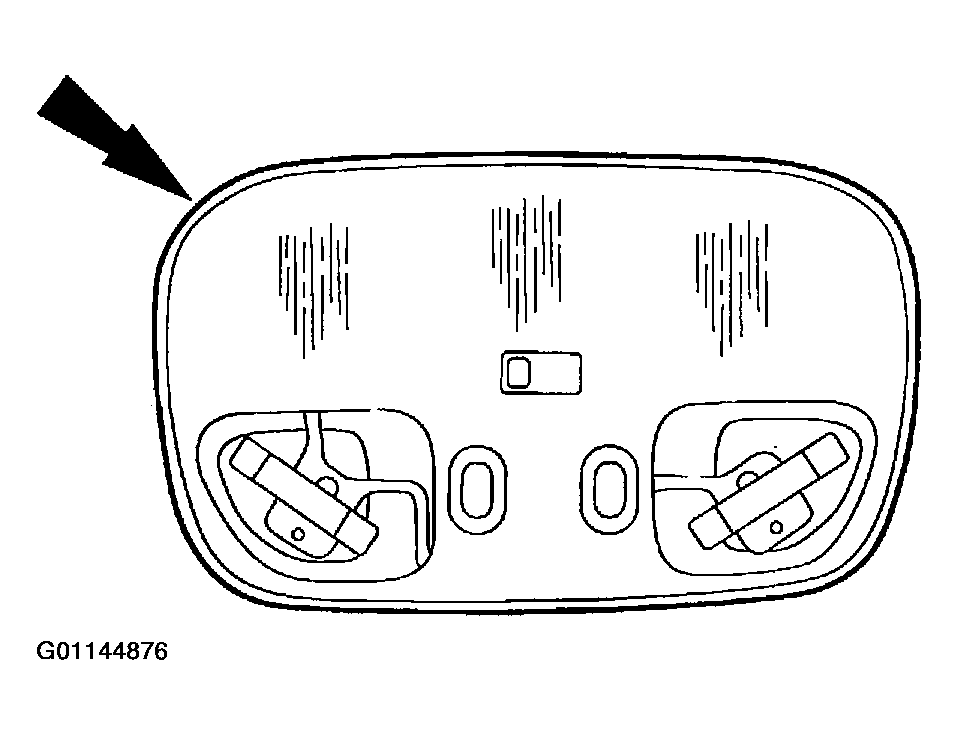

      Fig 12: Removing/Installing Front Interior Lamp Lens

      Courtesy of MAZDA MOTORS CORP.
15. Remove the front interior lamp lens by prying with a screwdriver.

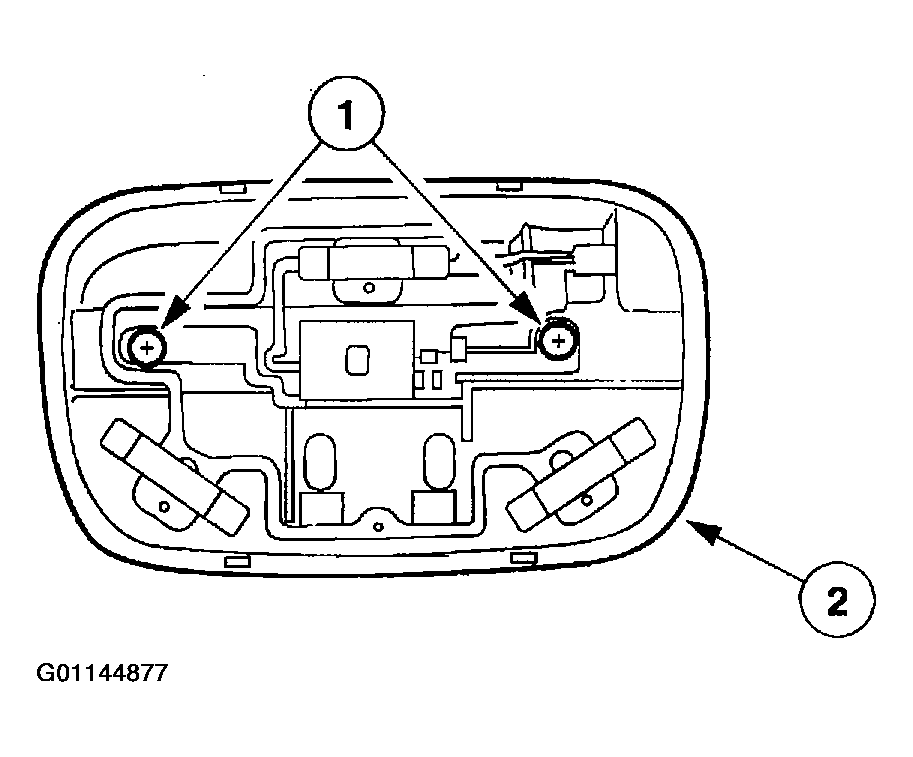

    Fig 13: Removing/Installing Front Interior Lamp

    Courtesy of MAZDA MOTORS CORP.
16. Remove the front interior lamp.
    1. Remove the screws.
    2. Remove the front interior lamp.
       1. Disconnect the electrical connector.
          Fig 14: Removing/Installing Rear Interior Lamp

          Courtesy of MAZDA MOTORS CORP.
17. Remove rear interior lamp by prying with a screwdriver.
    1. Disconnect the electrical connector.
       Fig 15: Removing/Installing Five Pin-Type Retainers

       Courtesy of MAZDA MOTORS CORP.
18. Remove the five pin-type retainers.
    Fig 16: Removing/Installing Three Child Seat Tether Anchor Covers

    Courtesy of MAZDA MOTORS CORP.
19. If equipped, remove the three child seat tether anchor covers.
    Fig 17: Removing/Installing Three Bolts And The Child Seat Tether Anchors

    Courtesy of MAZDA MOTORS CORP.
20. If equipped, remove the three bolts and the child seat tether anchors.
21. Remove the headliner.
22. To install, reverse the removal procedure.
