Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with power windows

Disconnect the battery ground cable.
Vehicles with manual windows

Fig 1: Removing/Installing Front Door Manual Window Regulator Handle
Courtesy of MAZDA MOTORS CORP.
Remove the front door manual window regulator handle.
1. Release the clip.
2. Remove the front door manual window regulator handle.
  All vehicles

  Fig 2: Removing/Installing Front Door Latch Release Handle Bezel
  Courtesy of MAZDA MOTORS CORP.
Remove the front door latch release handle bezel.
1. Remove the screw.
2. Remove the front door latch release handle bezel.

  Fig 3: Removing/Installing Door Handle Cup Screw
  Courtesy of MAZDA MOTORS CORP.
Remove the door handle cup screw.

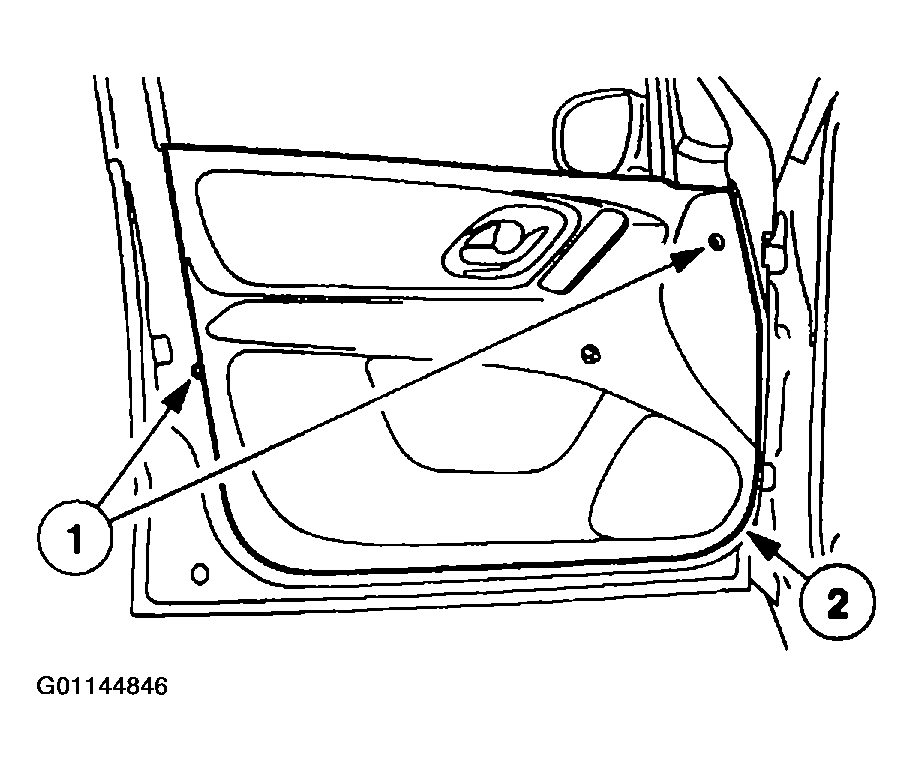

Fig 4: Removing/Installing Front Door Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the front door trim panel.
1. Remove the screws.
2. Remove the front door trim panel and disconnect the electrical connector (vehicles with power windows only).
To install, reverse the removal procedure.
