Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

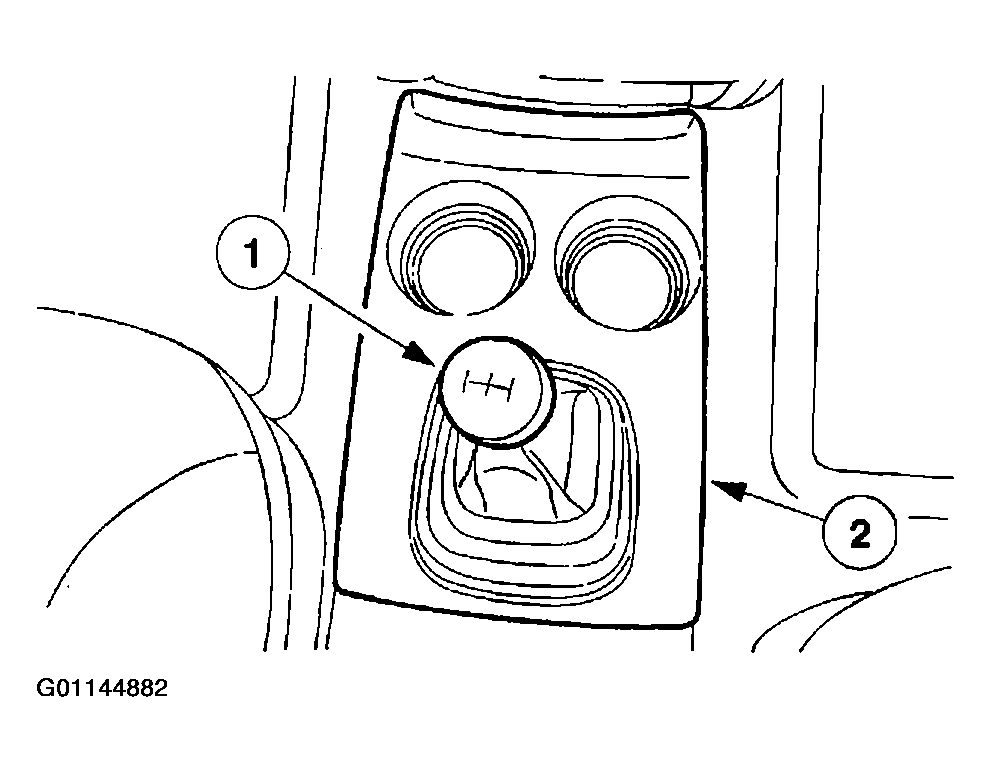

Fig 1: Removing/Installing Floor Console Front Finish Panel

Courtesy of MAZDA MOTORS CORP.

Remove the floor console front finish panel.
1. If equipped, remove the manual transaxle shifter knob by turning counterclockwise.
2. Remove the floor console front finish panel.

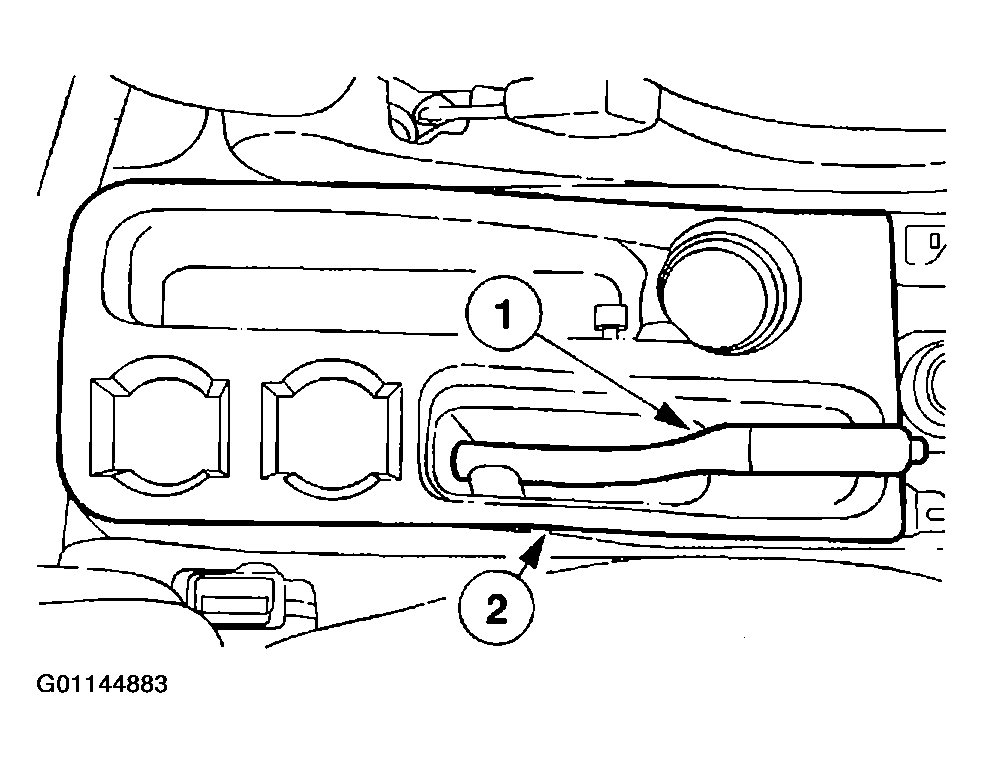

  Fig 2: Removing/Installing Floor Console Rear Finish Panel
  Courtesy of MAZDA MOTORS CORP.
Remove the floor console rear finish panel.
1. Apply the parking brake.
2. Remove the floor console rear finish panel.

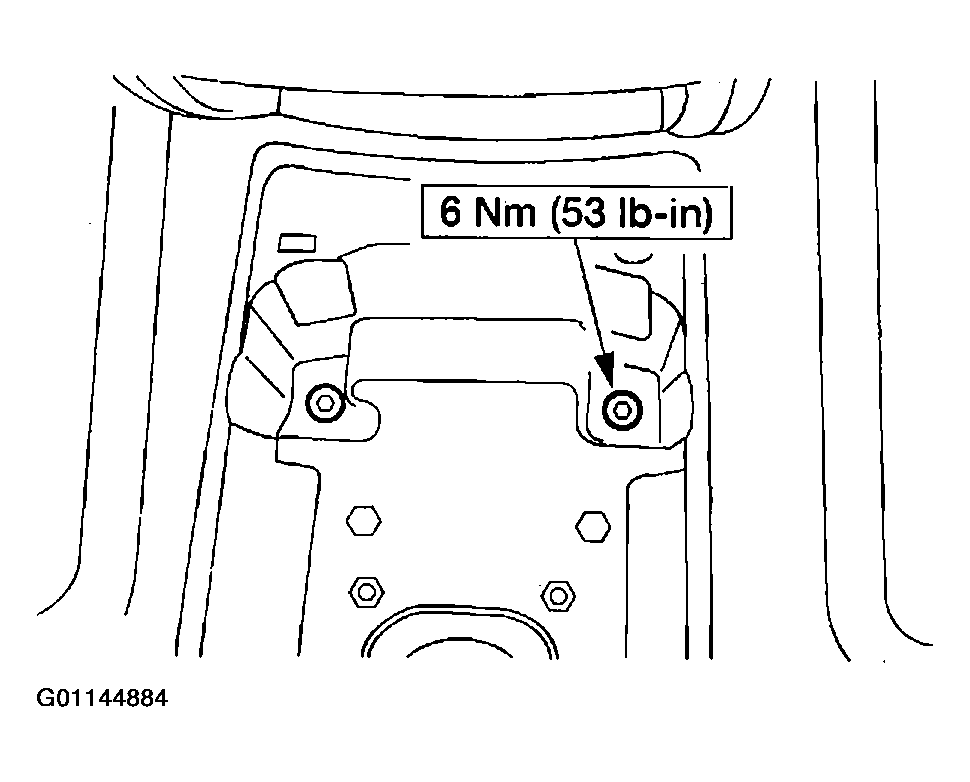

  Fig 3: Removing/Installing Floor Console Front Bolts
  Courtesy of MAZDA MOTORS CORP.
Remove the floor console front bolts.

Fig 4: Removing/Installing Floor Console
Courtesy of MAZDA MOTORS CORP.
Remove the floor console.
1. Remove the rear two bolts.
2. Remove the floor console.
To install, reverse the removal procedure.
